Circuit Description

Refer to DTC P0120: Throttle Pedal Position Sensor/Switch "A" Circuit, DTC P0122: Throttle Pedal Position Sensor/Switch "A" Circuit Low Input, DTC P0123: Throttle Pedal Position Sensor/Switch "A" Circuit High Input  .

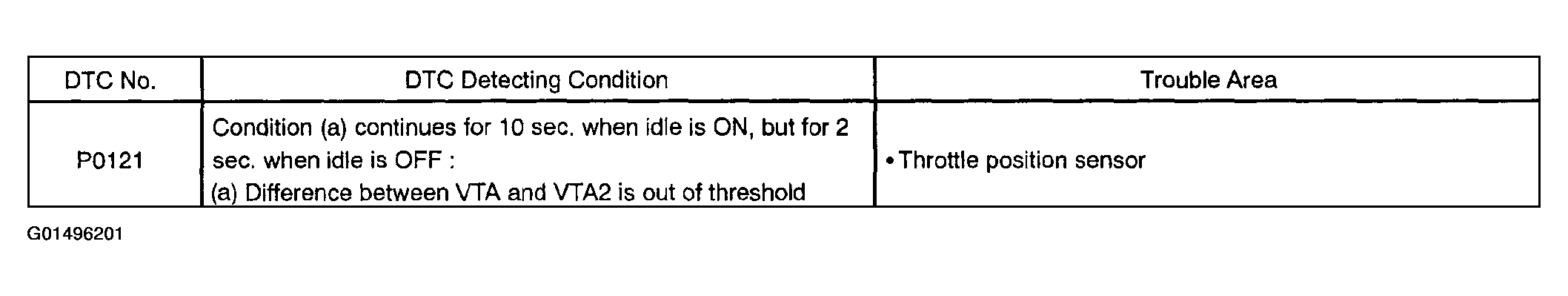

Fig 1: DTC P0121 Chart
G01496201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
