Hand-held tester

PREPARATION:

1. Connect the hand-held tester to DLC3.
2. Turn the ignition switch ON and push the hand-held tester main switch ON.

CHECK:

Read the voltage for the accelerator pedal position sensor data.

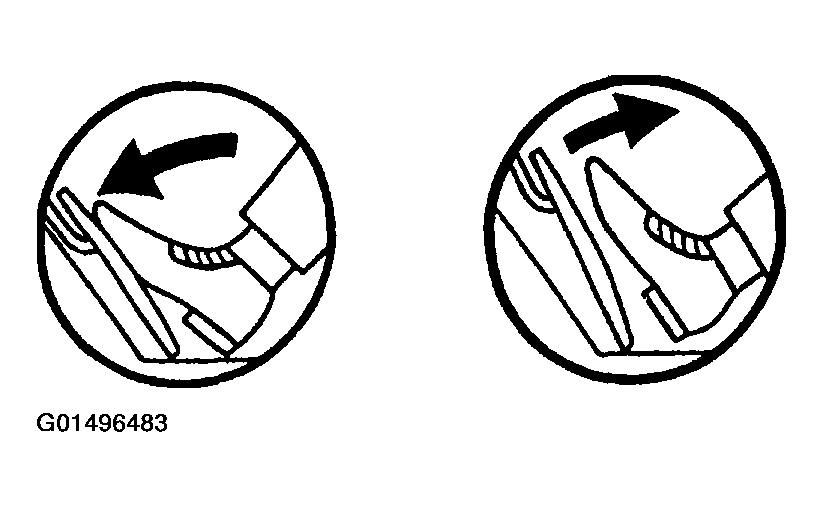

Fig 1: Identifying Accelerator Pedal Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

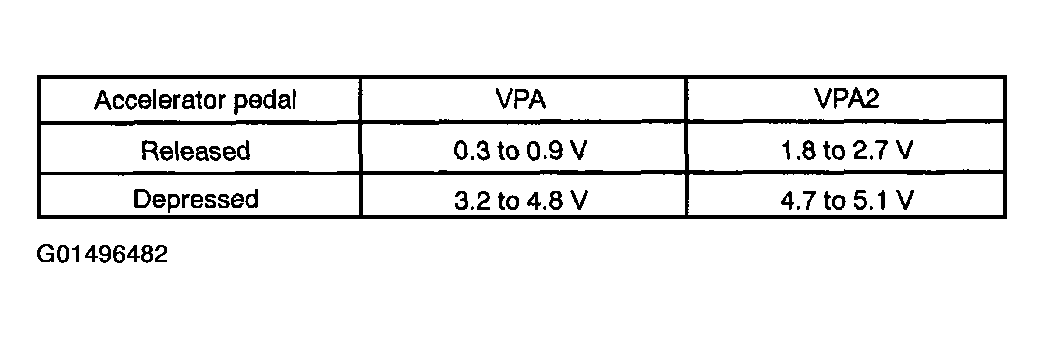

Fig 2: Accelerator Pedal Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: Go to step   6 .
2. NG: Go to next step.

1. NG: Replace accelerator pedal position sensor.
2. NG: Go to next step.

PREPARATION:

1. Remove the ECM hood (See ENGINE CONTROL MODULE (ECM) ).
2. Turn the ignition switch ON.

CHECK:

Measure the voltage between terminals VC and E2 of the ECM connector.

Fig 3: Measuring Voltage Between Terminals VC & E2 Of ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

Voltage: 5.4 to 5.5 V

1. NG: Replace ECM (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
2. OK: Go to next step.

PREPARATION:

1. Remove the ECM hood (See ENGINE CONTROL MODULE (ECM) ).
2. Turn the ignition switch ON.

CHECK:

Measure the voltage between terminals VPA and E2, and VPA2 and E2 of the e ECM connector.

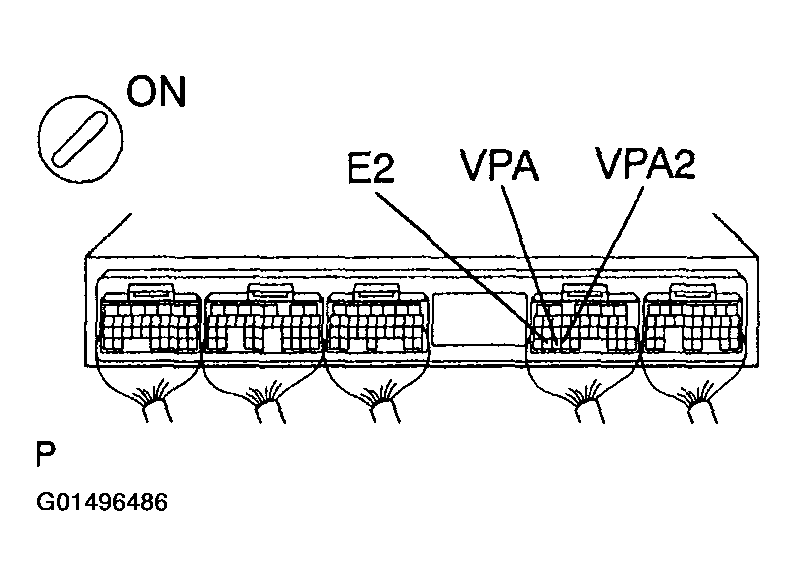

Fig 4: Measuring Voltage Between Terminals VPA & E2 And VPA2 & E2 Of ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

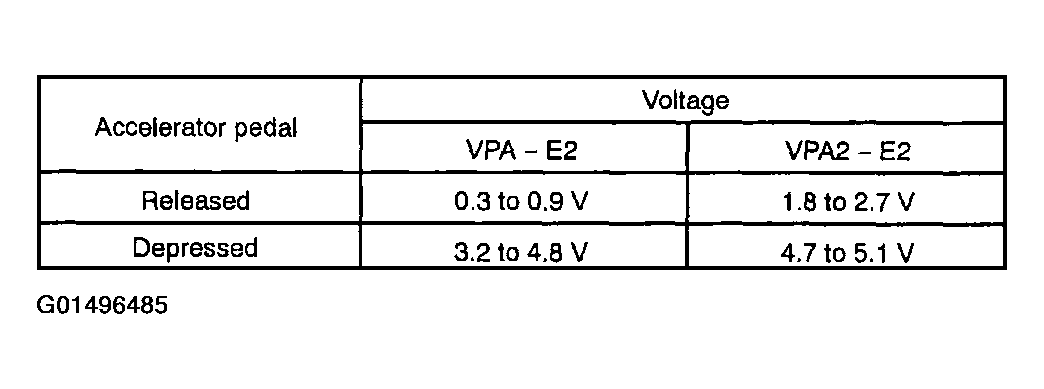

Fig 5: Accelerator Pedal & Voltage Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: Replace ECM (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
2. NG: Go to next step.

1. NG: Repair or replace harness or connector
2. OK: Go to next step.

PREPARATION:

1. Clear the DTC (See PRE-CHECK  ).
2. Start the engine.
3. Run the engine at idle for 15 seconds or more.

CHECK:

1. Read the DTC (See PRE-CHECK  ).

Result:

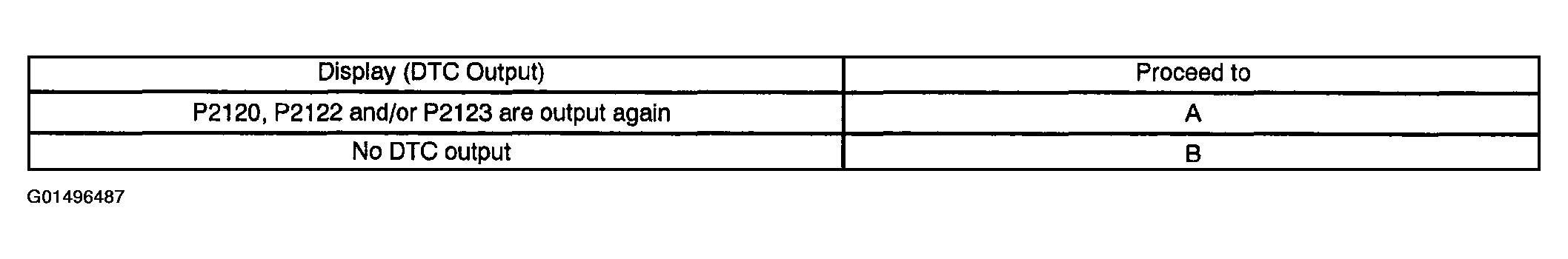

Fig 6: Display (DTC Output) Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. B: System OK
2. A: Replace ECM (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
