DTC P0550: Power Steering Pressure Sensor/Switch Circuit, DTC P0552: Power Steering Pressure Sensor/Switch Circuit Low Input, DTC P0553: Power Steering Pressure Sensor/Switch Circuit High Input: Wiring Diagram

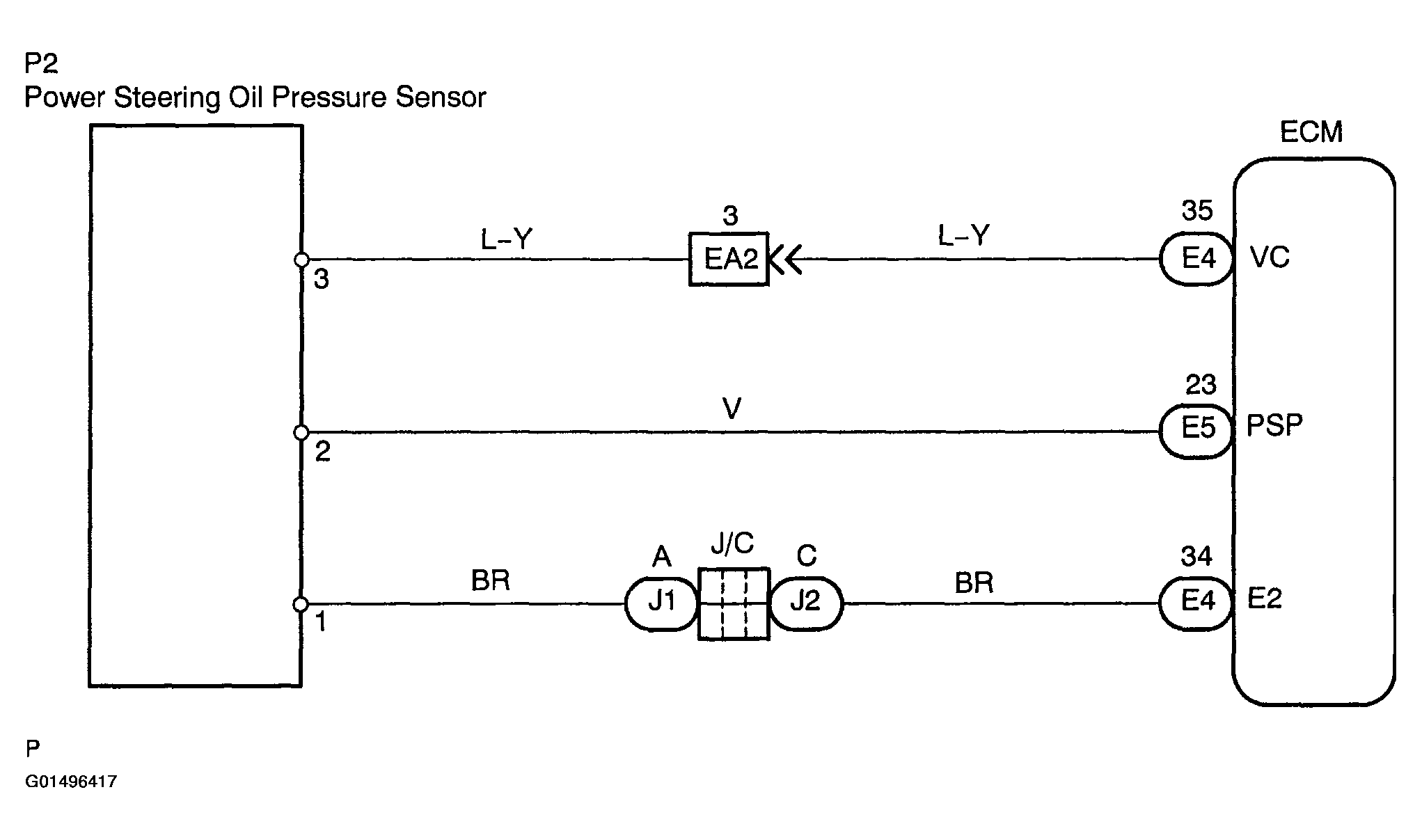

Fig 1: Power Steering Oil Pressure Sensor Wiring Diagram
G01496417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
