DTC P2120: Throttle/pedal Position Sensor/Switch "D" Circuit, DTC P2122: Throttle/pedal Position Sensor/Switch "D" Circuit, DTC P2123: Throttle/Pedal Position Sensor/Switch "D" Circuit High Input: Wiring Diagram

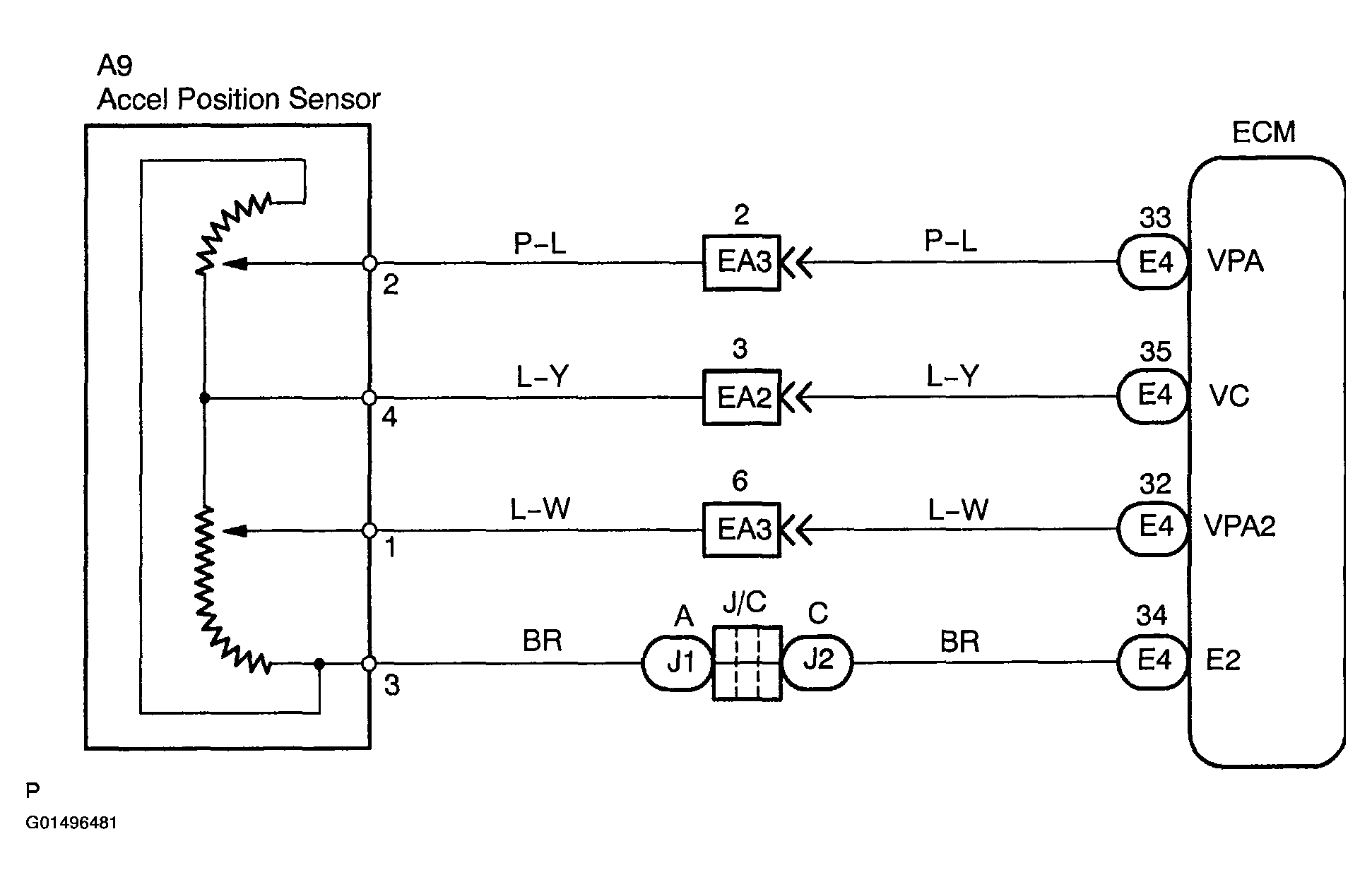

Fig 1: Accel Position Sensor Wiring Diagram
G01496481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
