Starting System: Location

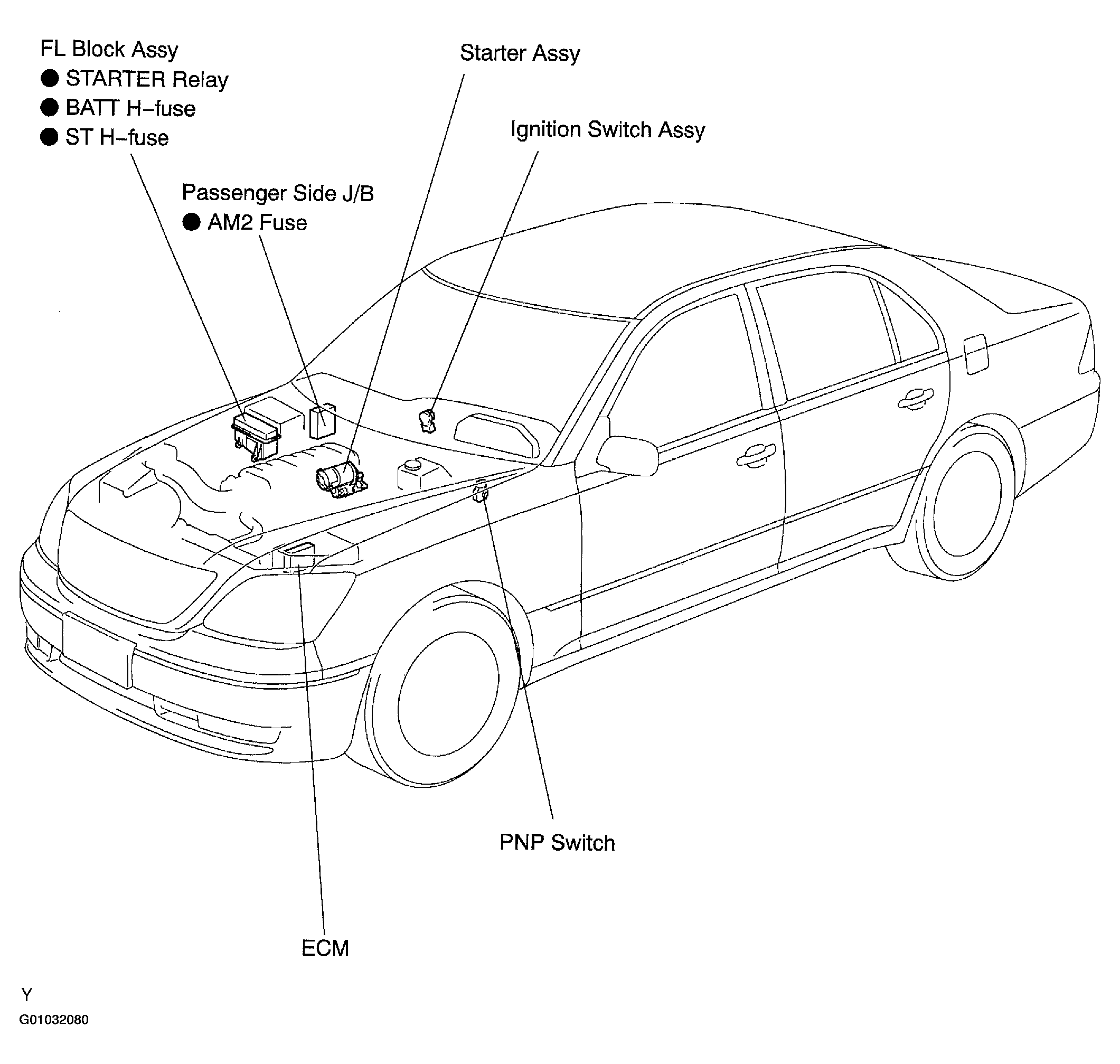

Fig 1: Locating Starting System Components

G01032080

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
