| Drain Plug |
15 (20) |
| Overflow Plug |
15 (20) |
| Refill Plug |
29 (39) |
| INCH Lbs. (N.m) |
| Case Cover Bolts |
48 (5.4) |
| Oil Pan Bolts |
39 (4.4) |
| Oil Strainer Bolts |
88 (10) |
| Park Neutral Position Switch Bolt |
115 (13) |

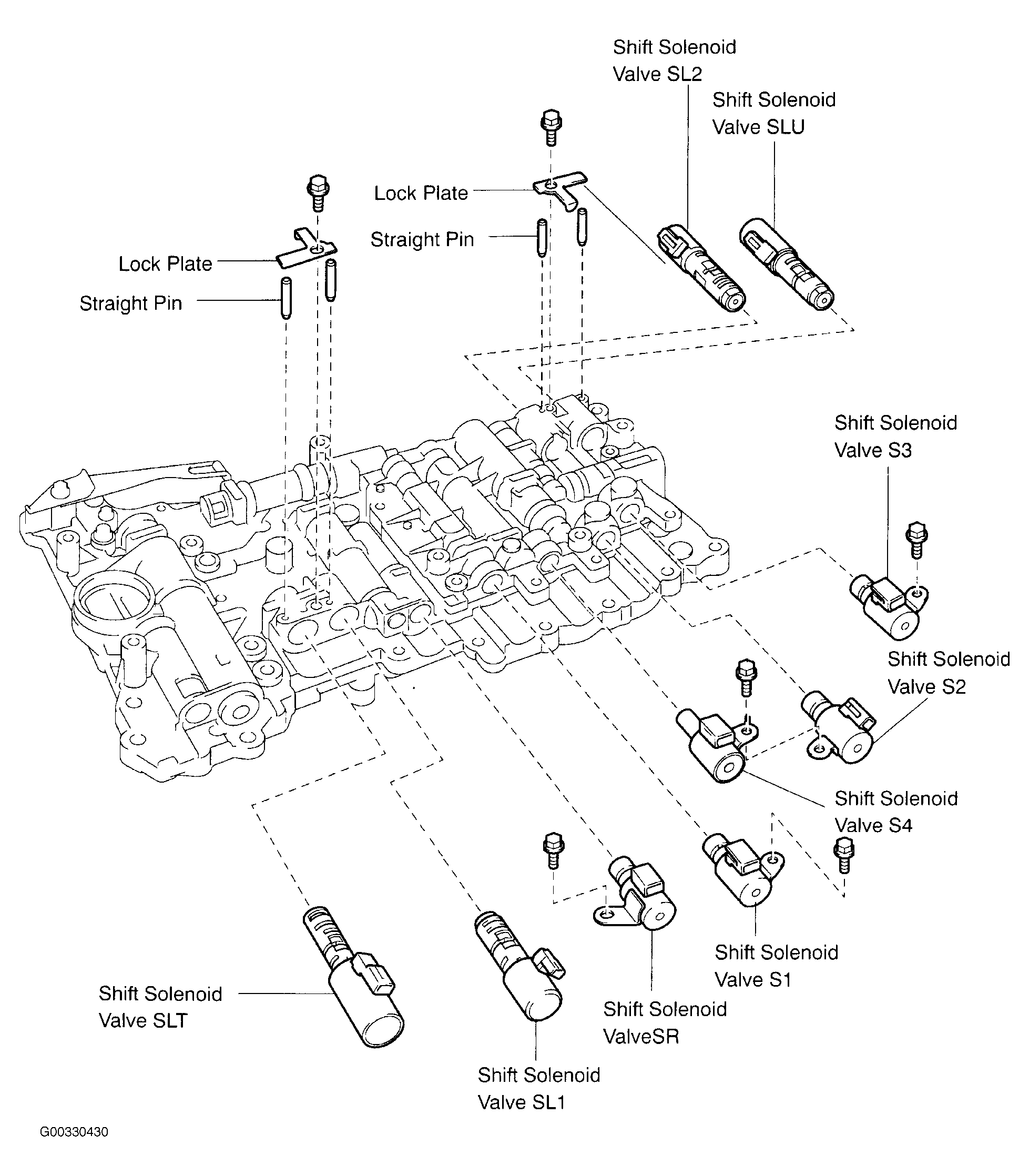

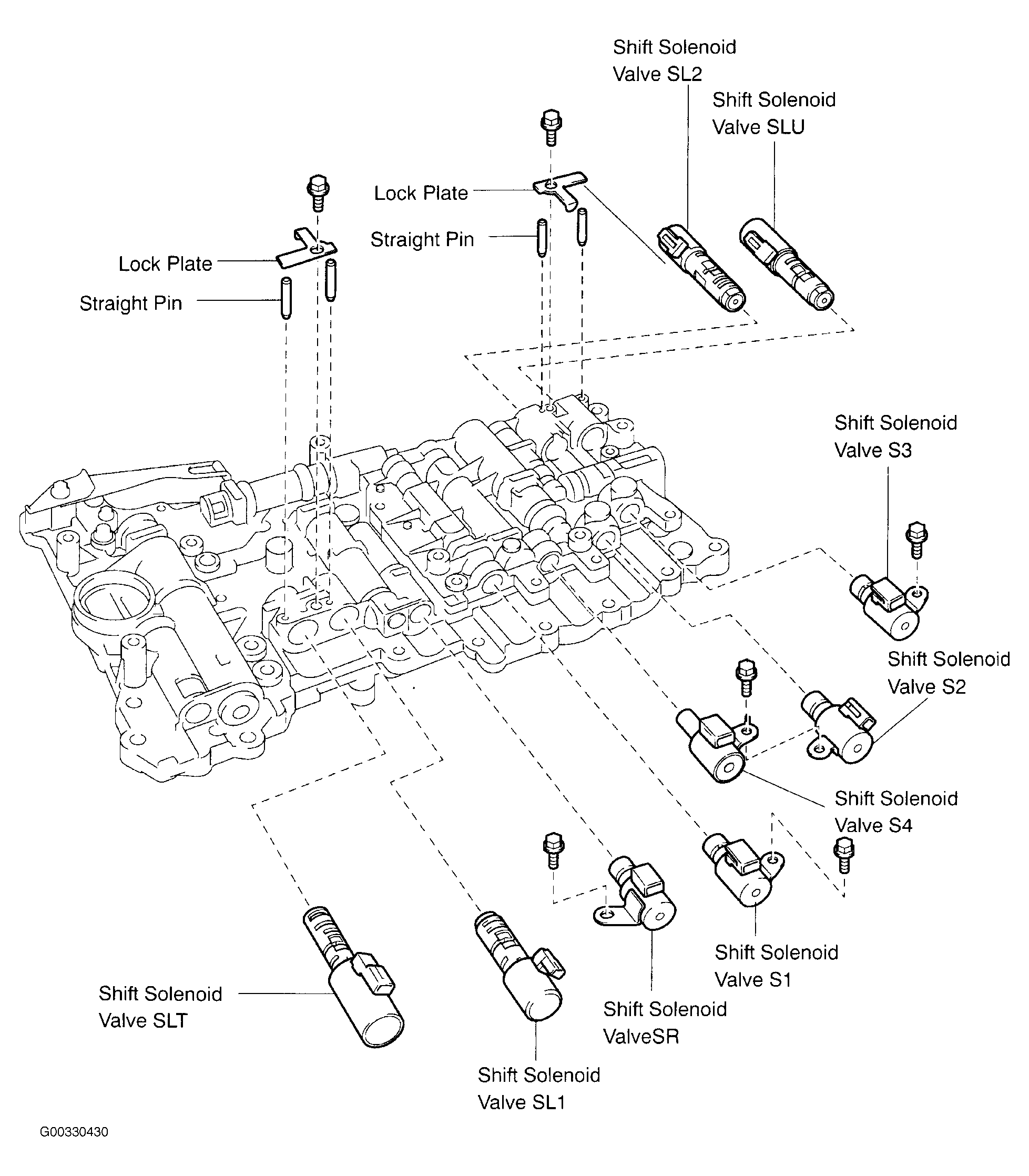

| Shift Solenoid Valve Bolts |
| S1 Bolt |
88 (10) |
| S2 & S4 Bolt |
88 (10) |
| S3 Bolt |
88 (10) |
| SL1 & SLT Lock Plate Bolt |
56 (6.4) |
| SL2 & SLU Lock Plate Bolt |
56 (6.4) |
| SR Bolt |
88 (10) |
| Transmission Case Cover Bolts |
48 (5.4) |
| Transmission Revolution Sensor Bolt |
48 (5.4) |
| Transmission Wire |
| Bolt |
48 (5.4) |
| Clamp Bolts |
88 (10) |
| ATF Temperature Sensor Bolt |
88 (10) |

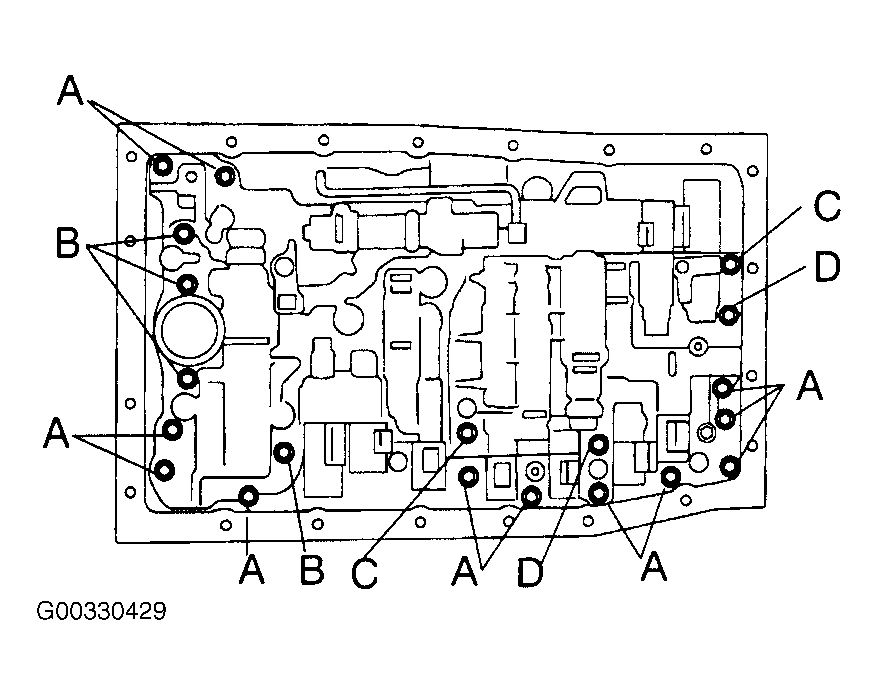

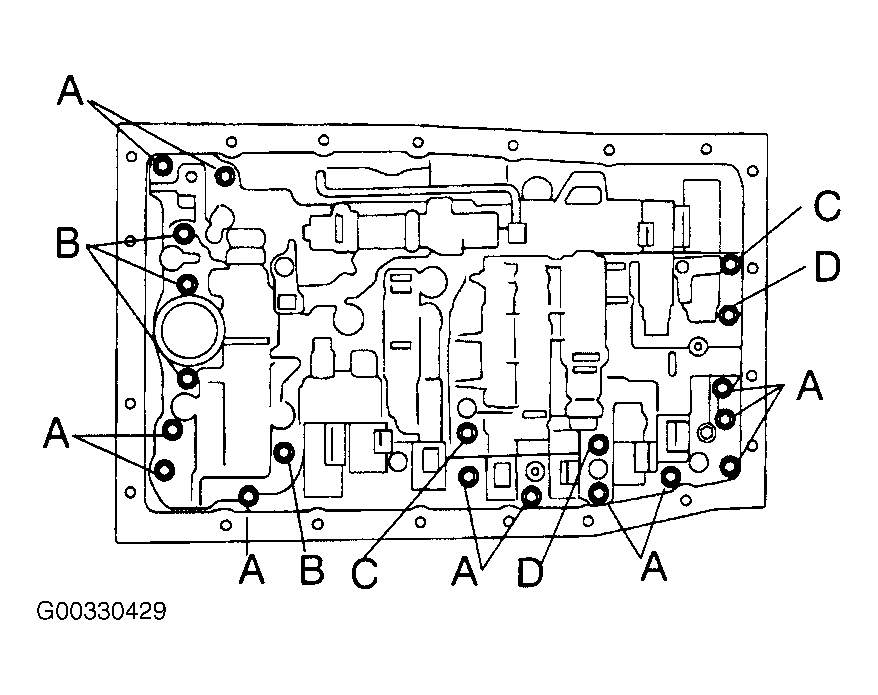

| Valve Body |
| Bolts "A"- 1.42 in. (36 mm) |
97 (11) |
| Bolts "B"- 0.98 in. (25 mm) |
97 (11) |
| Bolts "C"- 1.77 in. (45 mm) |
97 (11) |
| Bolts "D"- 1.97 in. (50 mm) |
97 (11) |
