Remove Speed Sensor

  1. Disconnect the speed sensor connector.
  2. Remove the resin clip and 4 clamp bolts holding the sensor harness from the steering knuckle and upper arm.
    1. Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

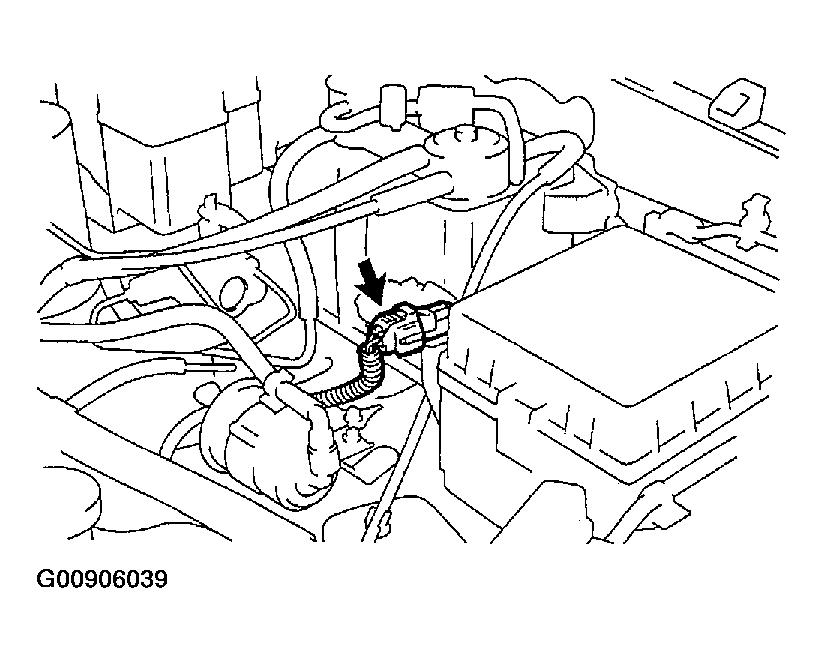

    Fig 1: Disconnecting Speed Sensor Connector
    G00906039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove the speed sensor installation bolt and speed sensor from the steering knuckle.
    1. Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

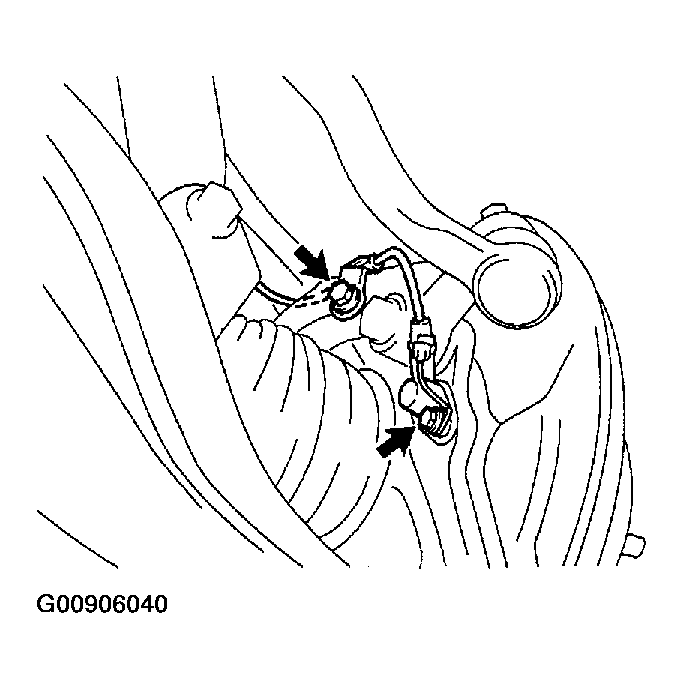

    Fig 2: Removing Speed Sensor Installation Bolt
    G00906040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
