SFI System: Injector: Components

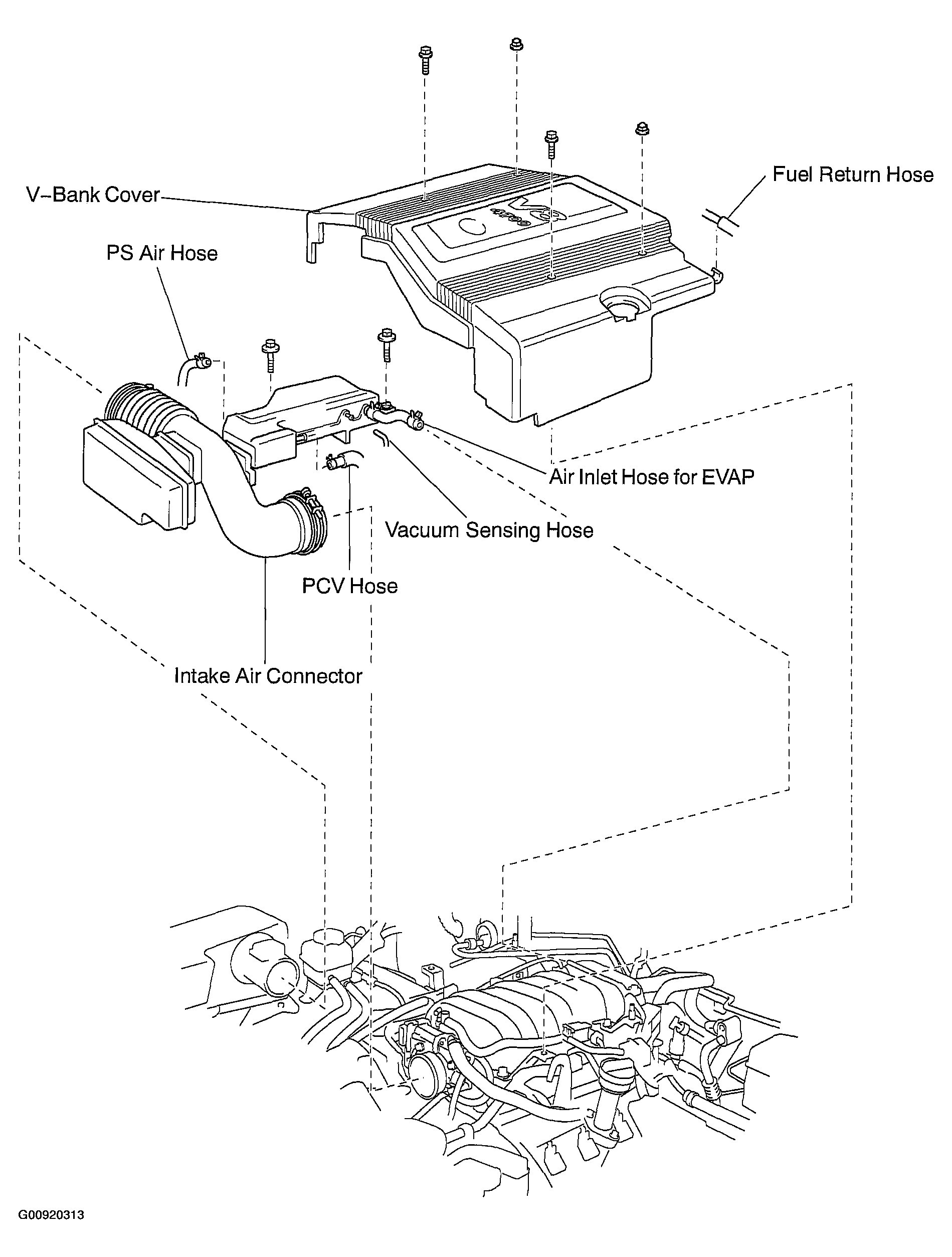

Fig 1: Identifying Injector Components (1 Of 2)
G00920313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

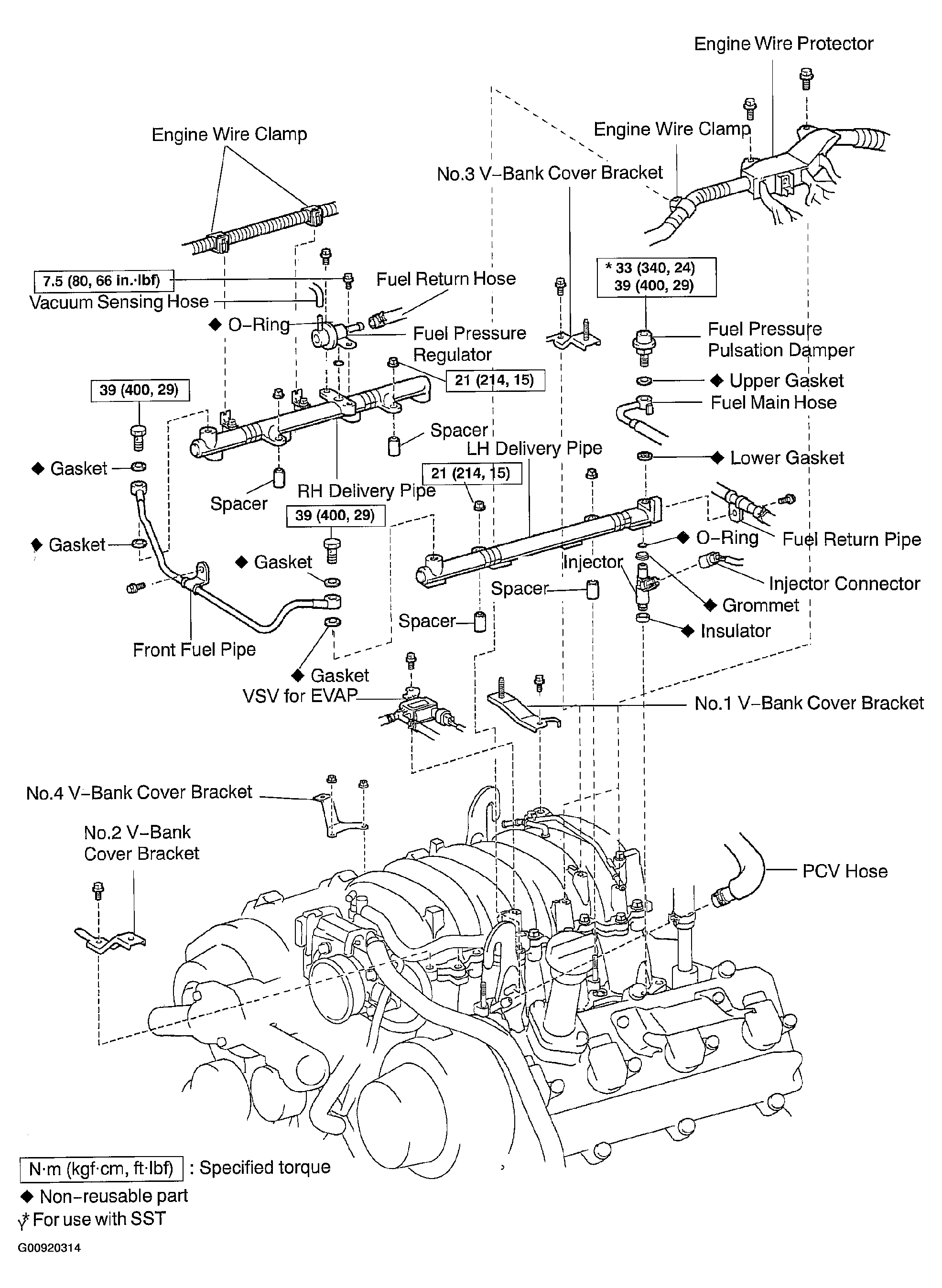

Fig 2: Identifying Injector Components (2 Of 2)
G00920314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
