SFI System - Diagnosis: Location

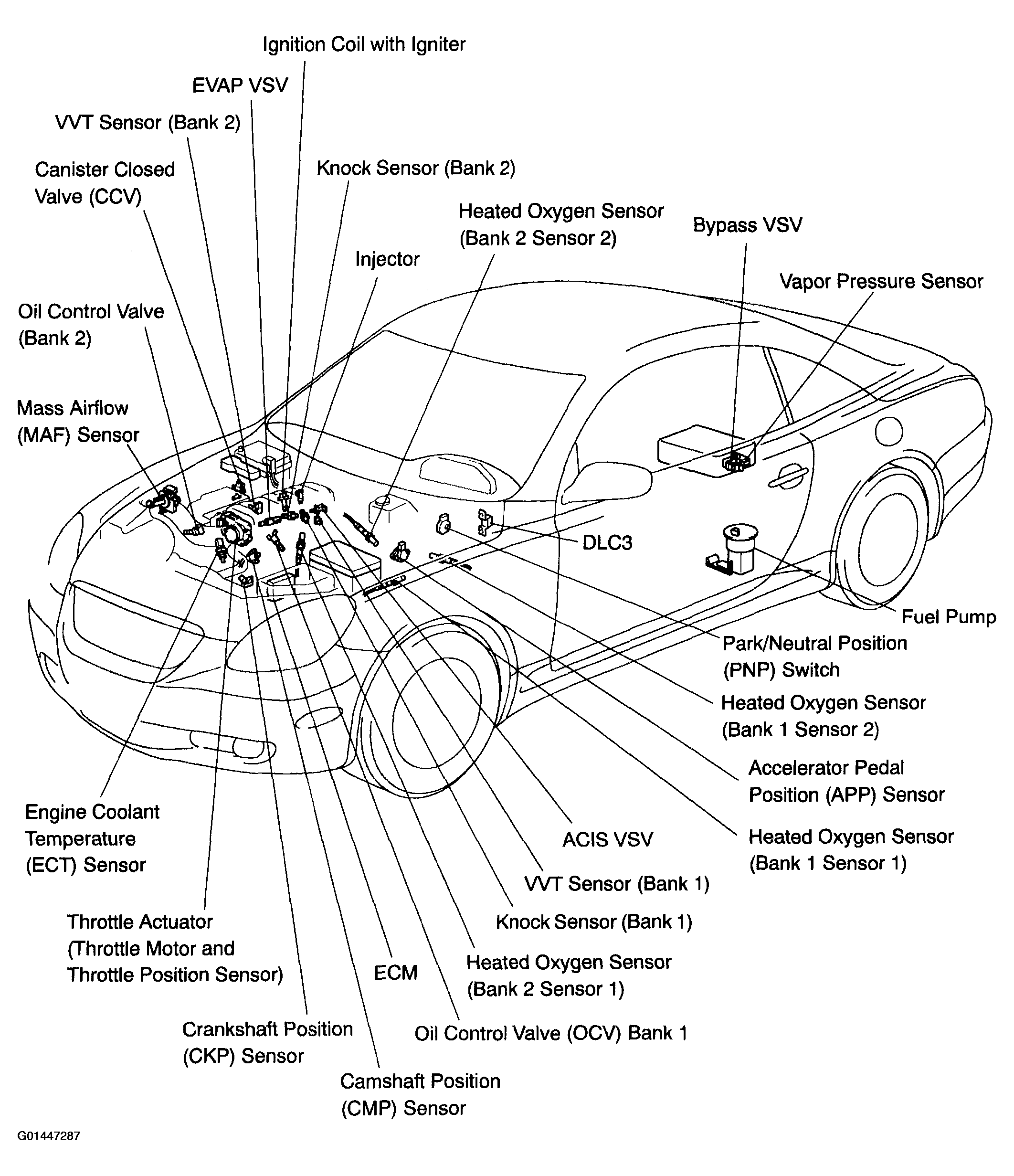

Fig 1: Identifying SFI System Part Location
G01447287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
