Fuse Block: Locations

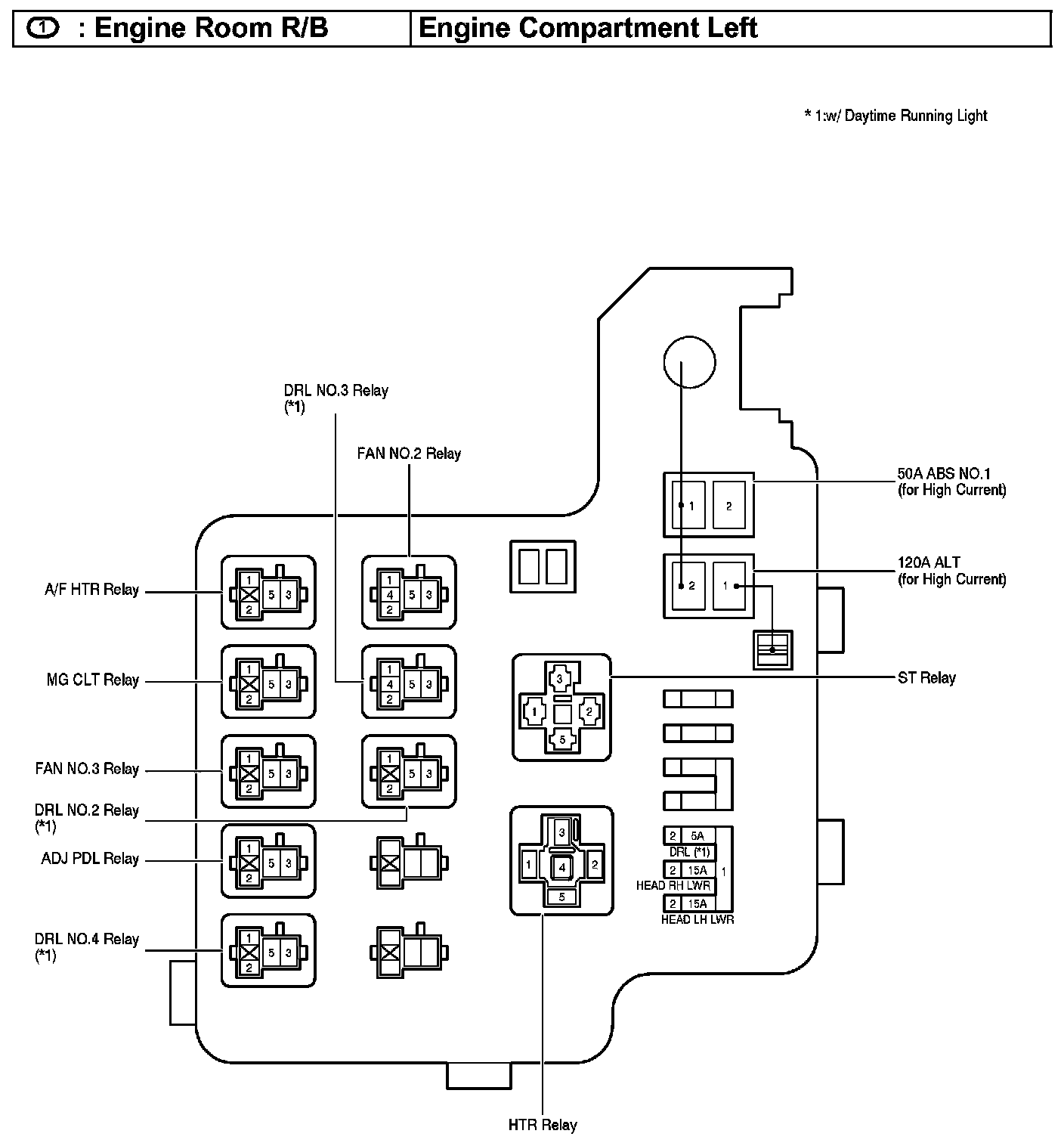

Engine Room R/B - Engine Compartment Left:

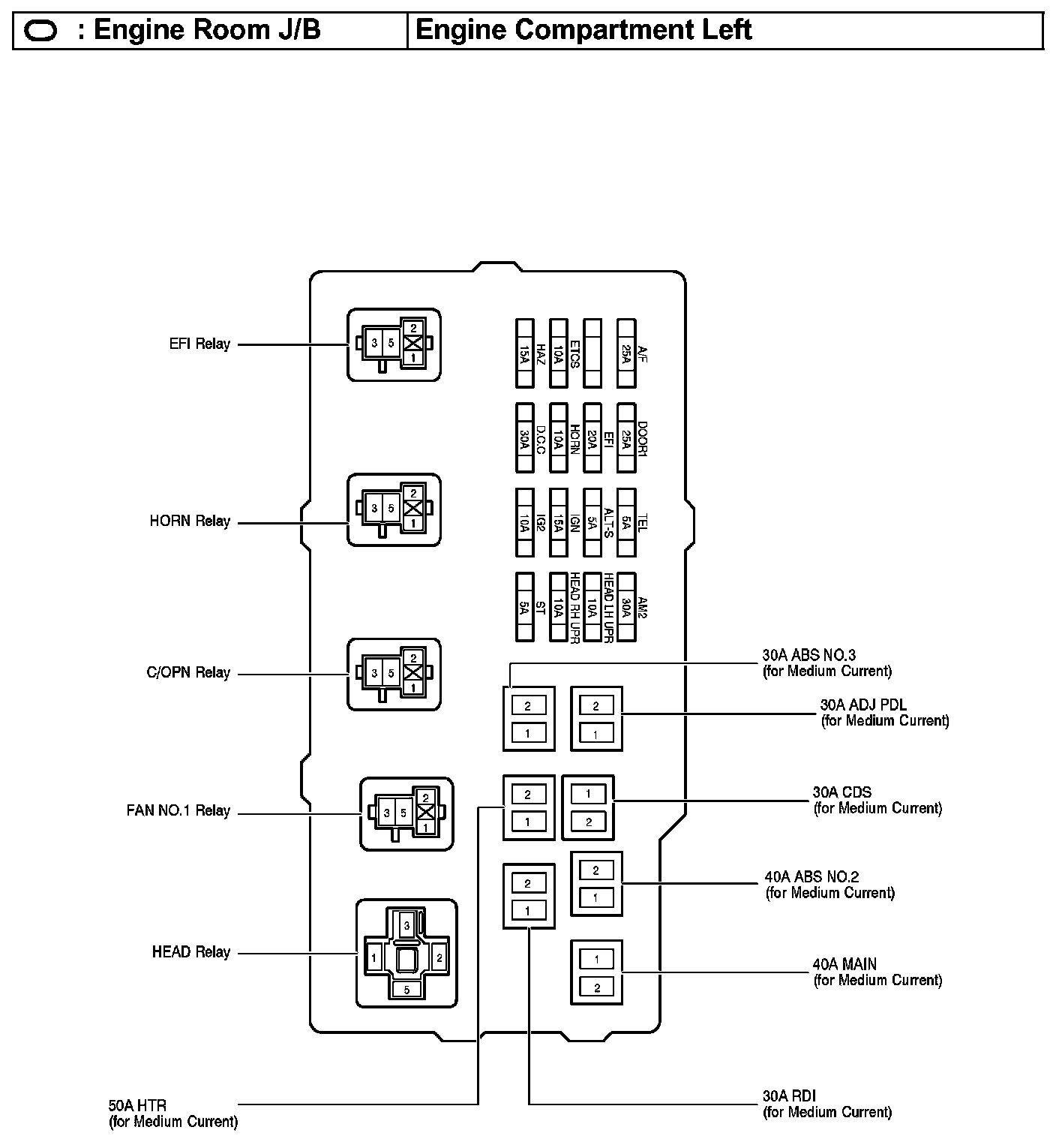

Engine Room J/B - Engine Compartment Left:

Driver Side J/B - Lower Finish Panel:

Fuse Details

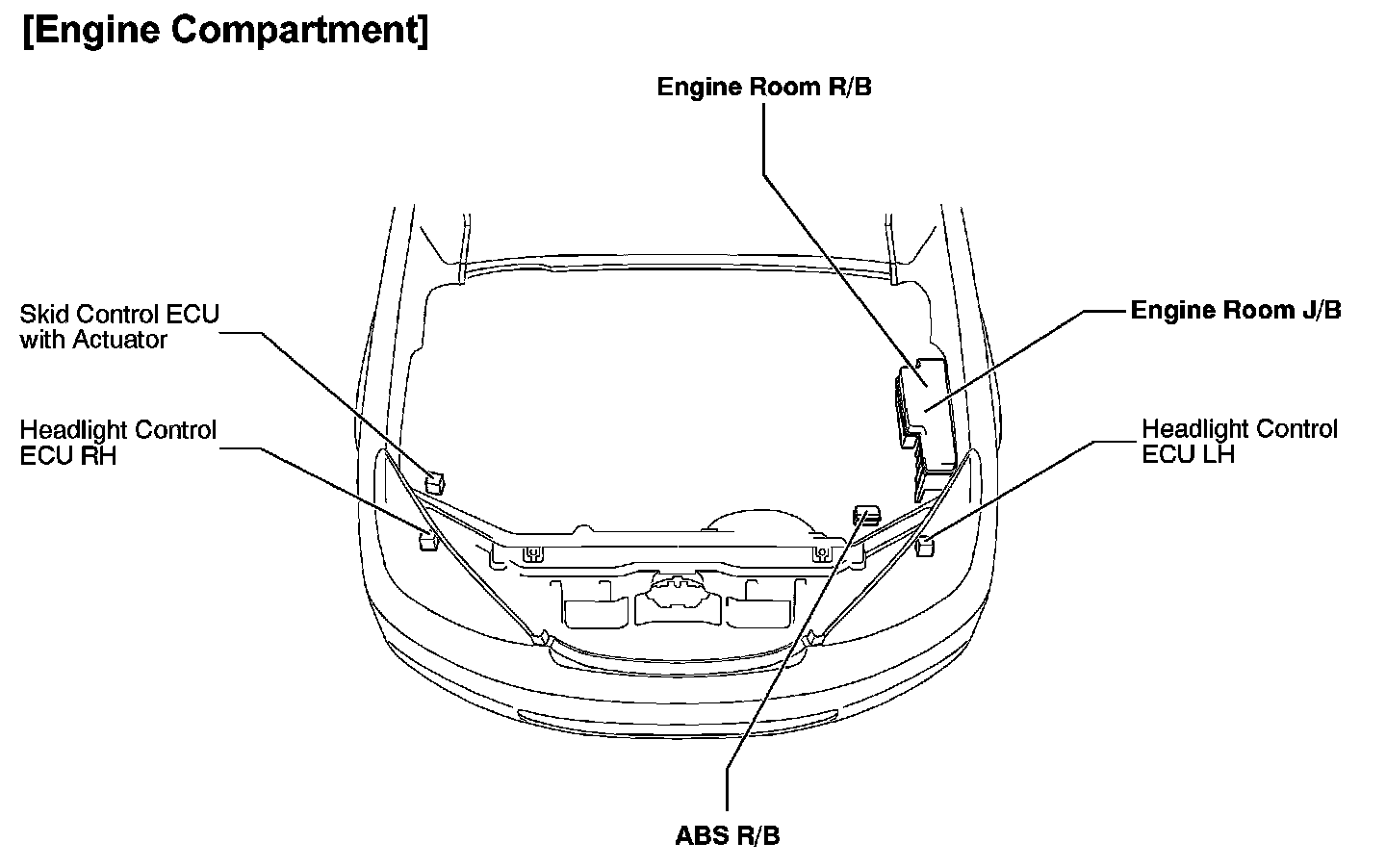

Engine Compartment:

Instrument Panel:

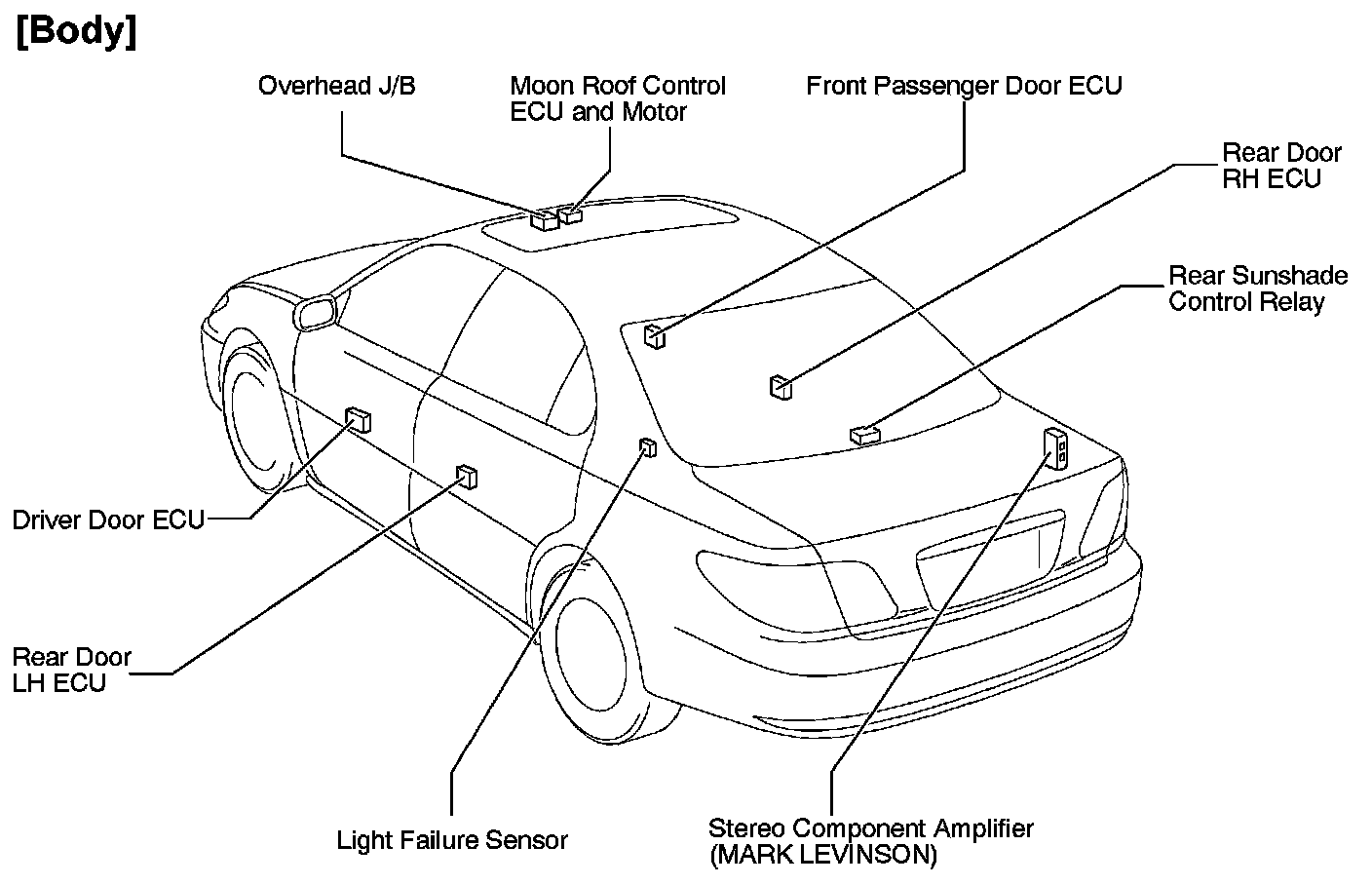

Body:

Locations
