Accessory Meter ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ROOF CONSOLE BOX ASSY (Refer to COMPONENTS , see ROOF CONSOLE BOX ASSY under REPLACEMENT )
REMOVE ACCESSORY METER ASSY
1. Using a torx® socket wrench (T10), remove the 5 screws and accessory meter assy.

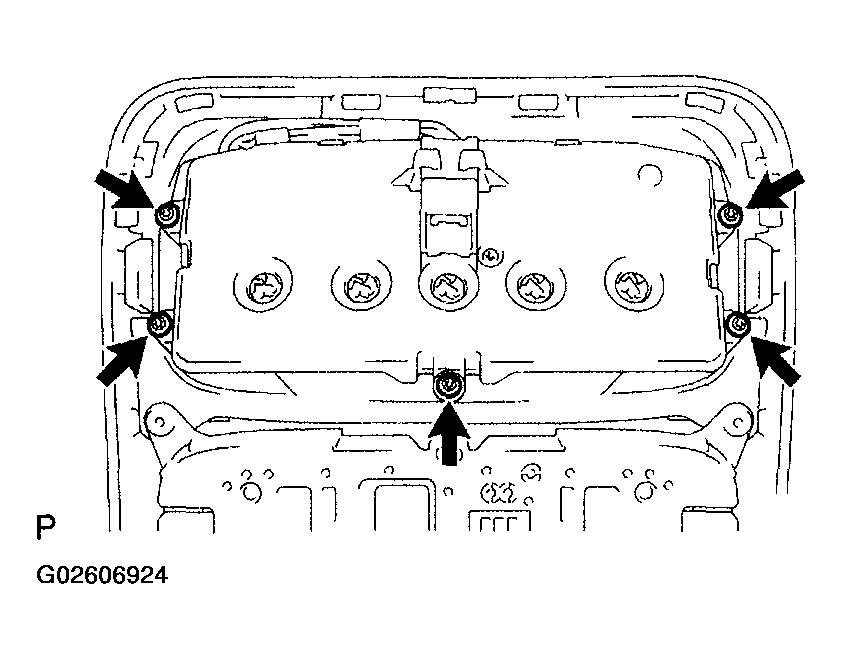

Fig 1: Removing Screws And Accessory Meter Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
