Display Signal Circuit (Multi-Display Controller Sub-ASSY - Multi-Display): Wiring Diagram

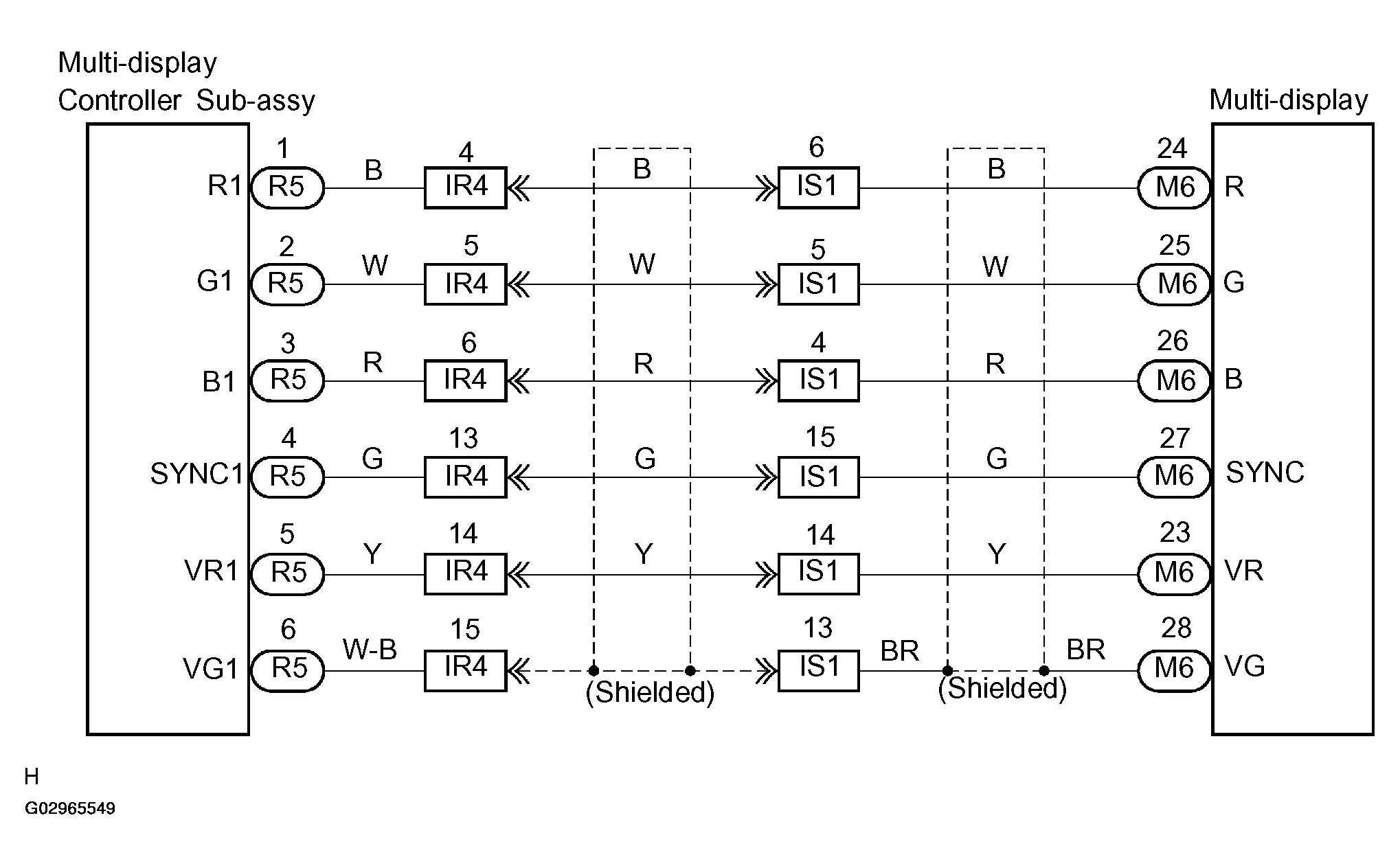

Fig 1: Display Signal Circuit (Multi-Display Controller Sub-Assy - Multi-Display) Wiring Diagram
G02965549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
