How To Determine Bolt Strength

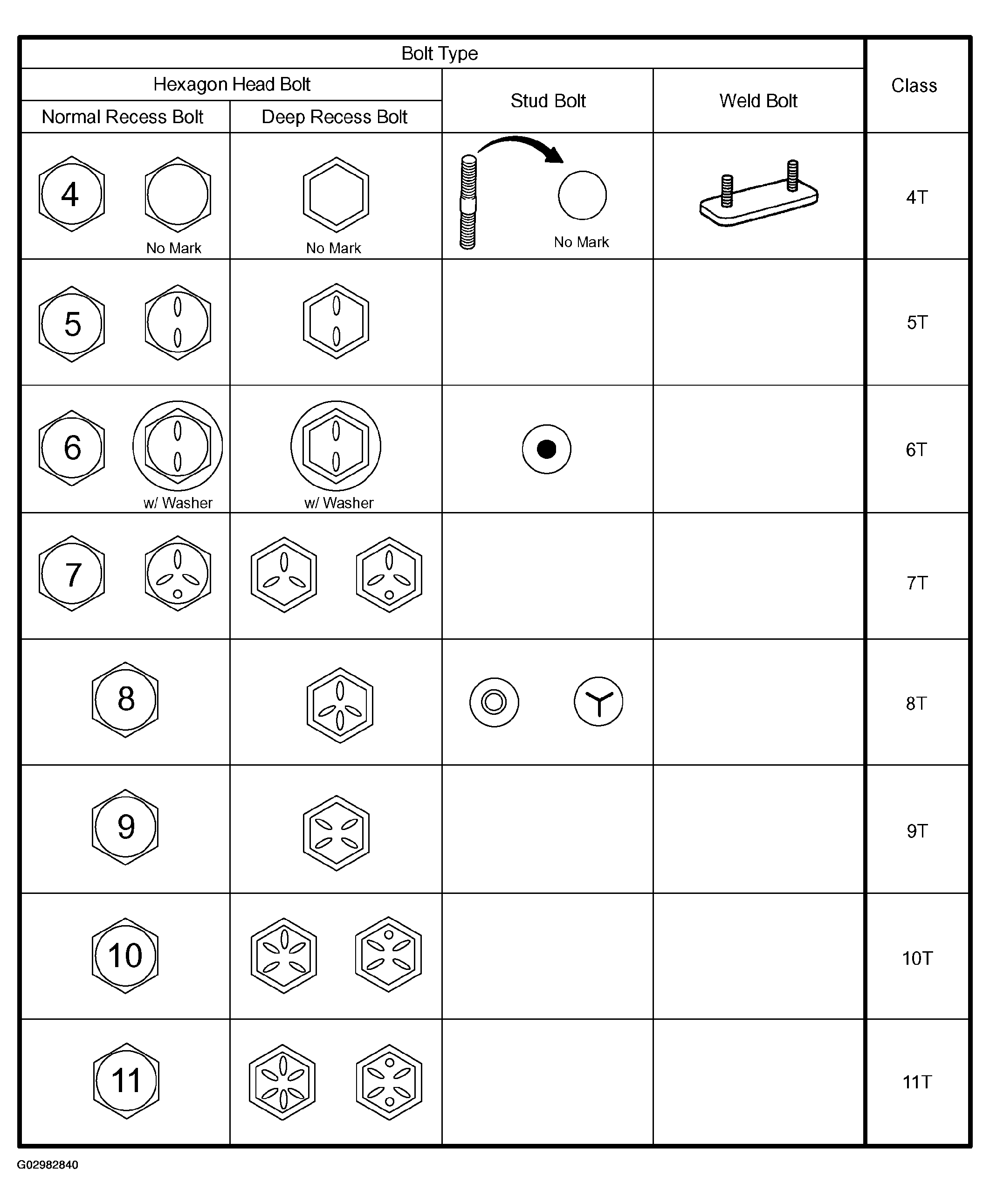

Fig 1: Determining Bolt Strength Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
