Front Door: Components

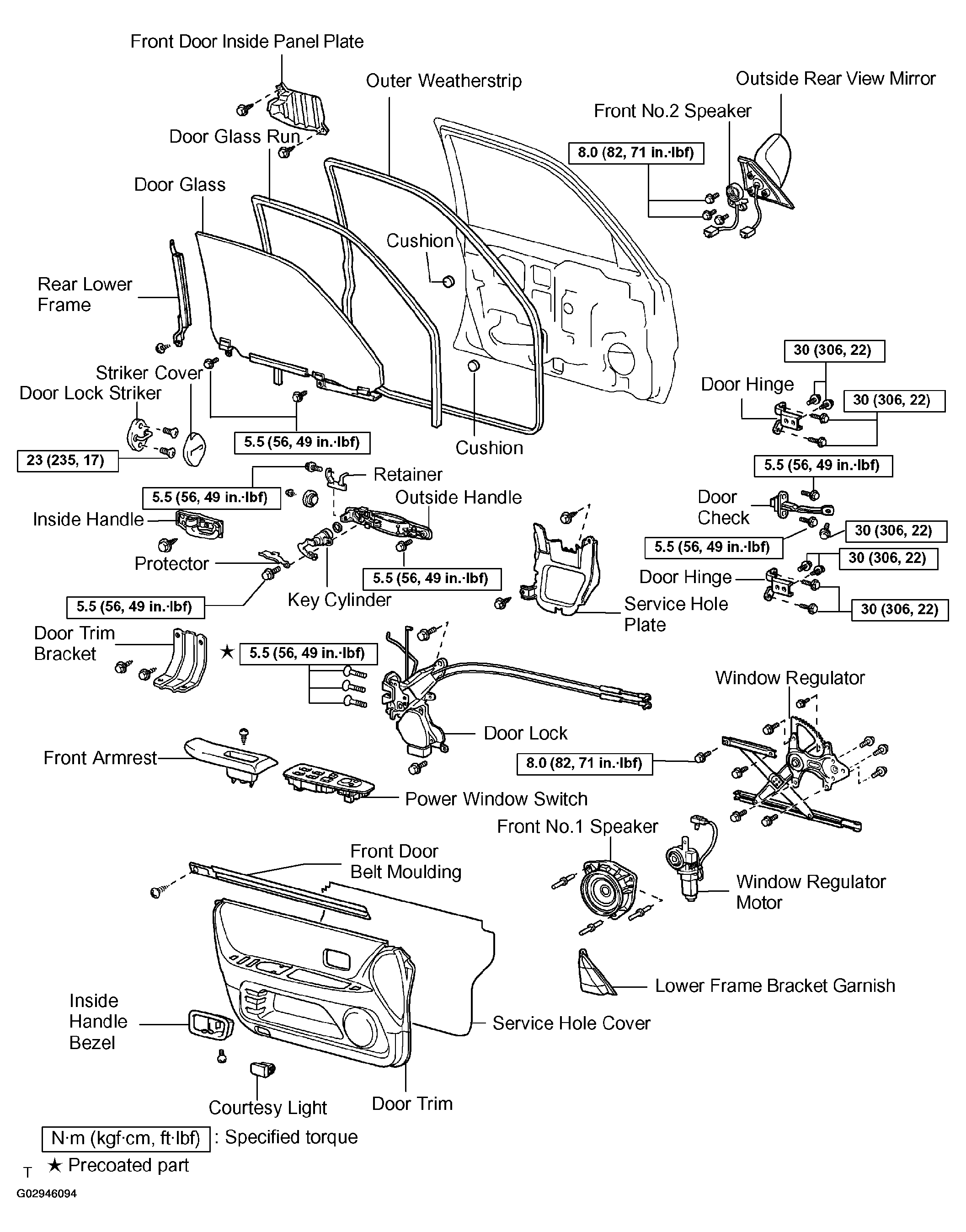

Fig 1: Identifying Front Door Components

G02946094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
