Power Window Control System: Troubleshooting
POWER WINDOW CONTROL SYSTEM MALFUNCTION SYMPTOMS
| Malfunction symptoms | Applicable chart |
|---|---|
| Driver's door does not operate. | 1 |
| Passenger's and all rear doors do not operate by using the switches at each seat. | 2 |
| Any of passenger's and rear doors does not operate by using the switches of each seat. | 3 |
| Passenger's and all rear doors are not controlled remotely by using the master switch. (Switches of each door can be operated.) | 4 |
| AUTO UP and AUTO DOWN does not operate. (Prepare a normal master switch.) | 5 |
| DOWN operation operates during door glass AUTO UP operation. | 6 |
| Even though a foreign object is caught, DOWN operation does not function. | 7 |
| After ignition switch has been turned to OFF by using a key, power window function does not operate. | 8 |

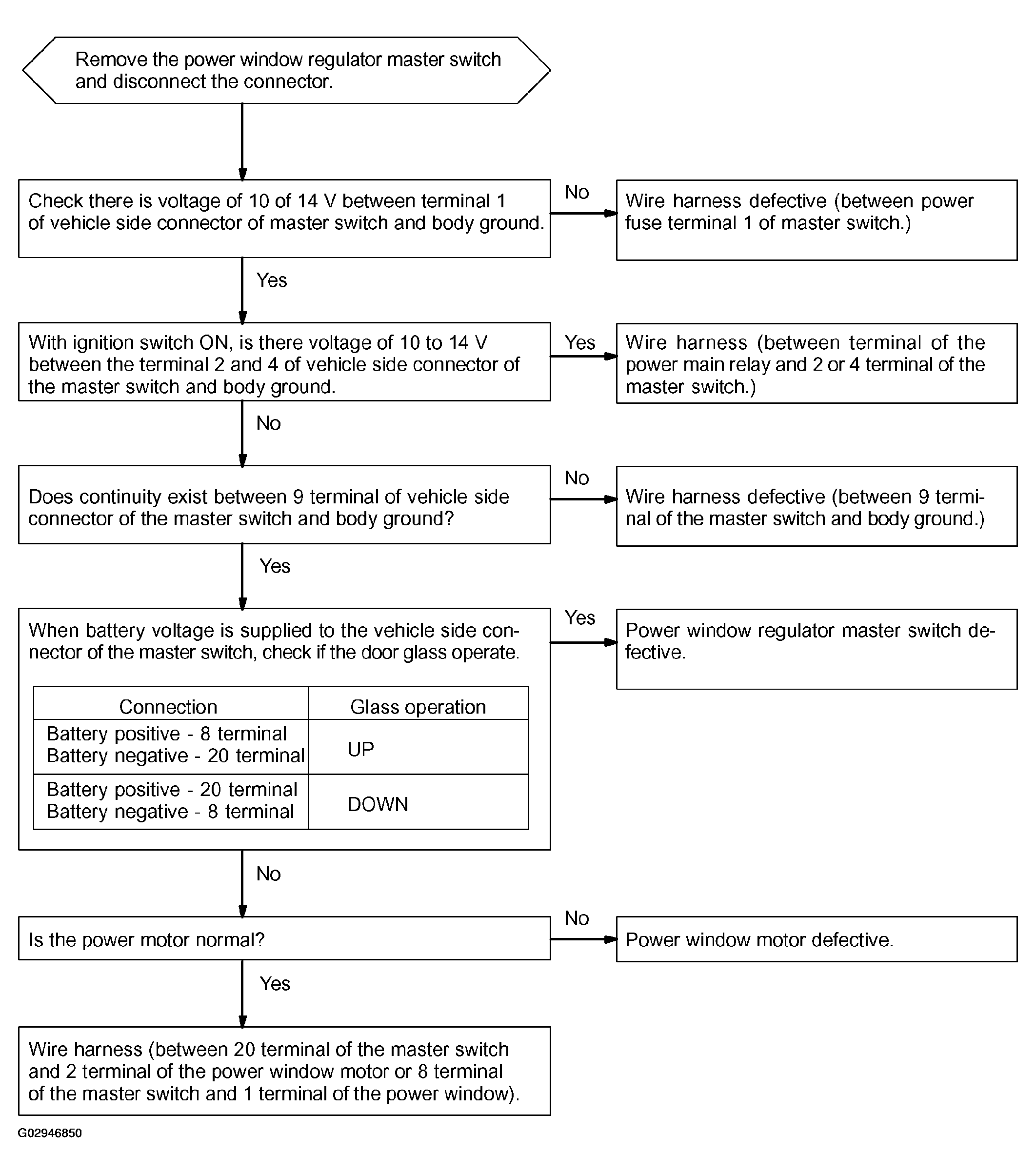

- Driver's door does not operate.

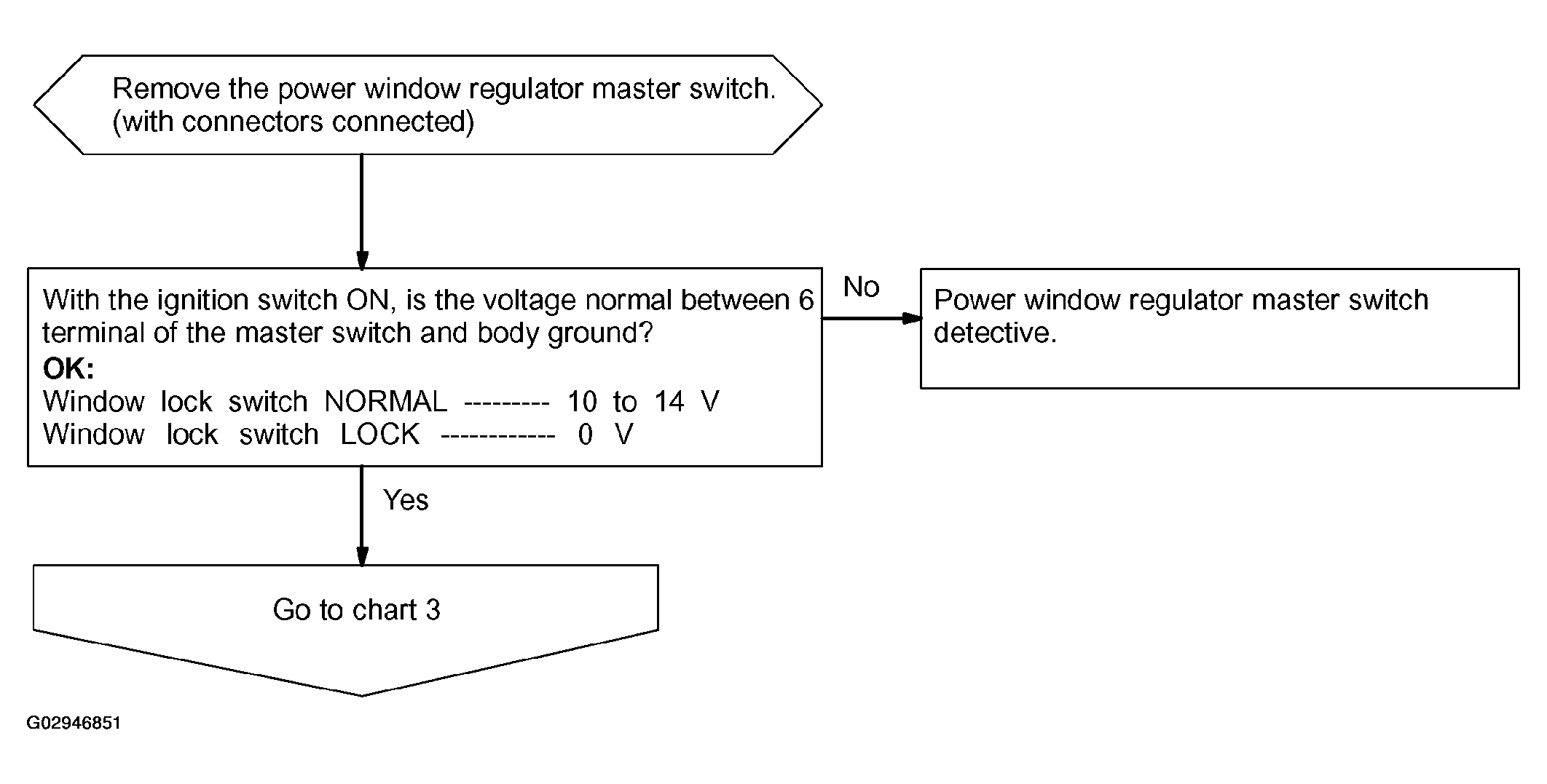

- Passenger's and all rear doors do not operate by using the switches of each seat.

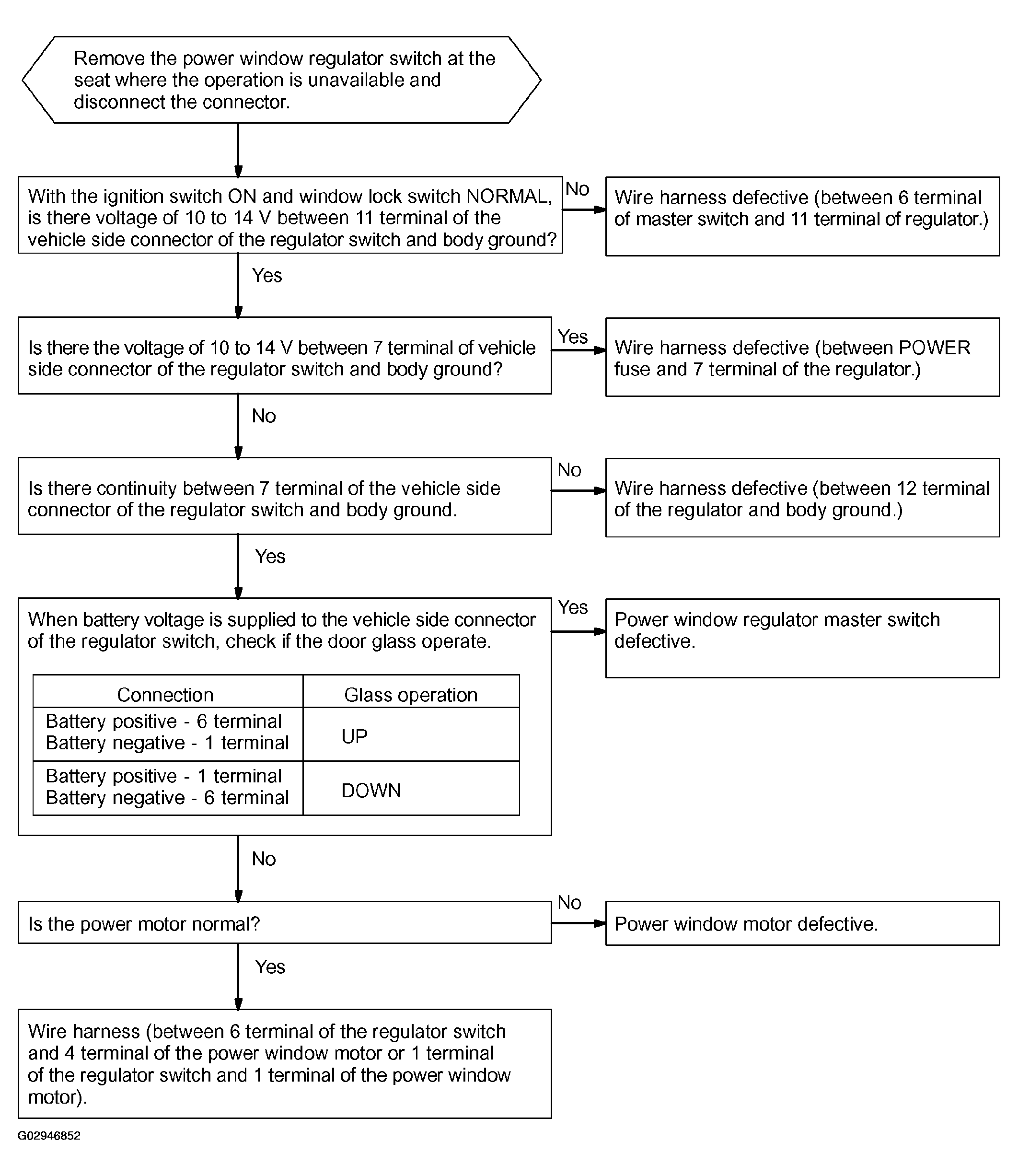

- Any of passenger's and all rear doors does not operate by using the switches at each seat.

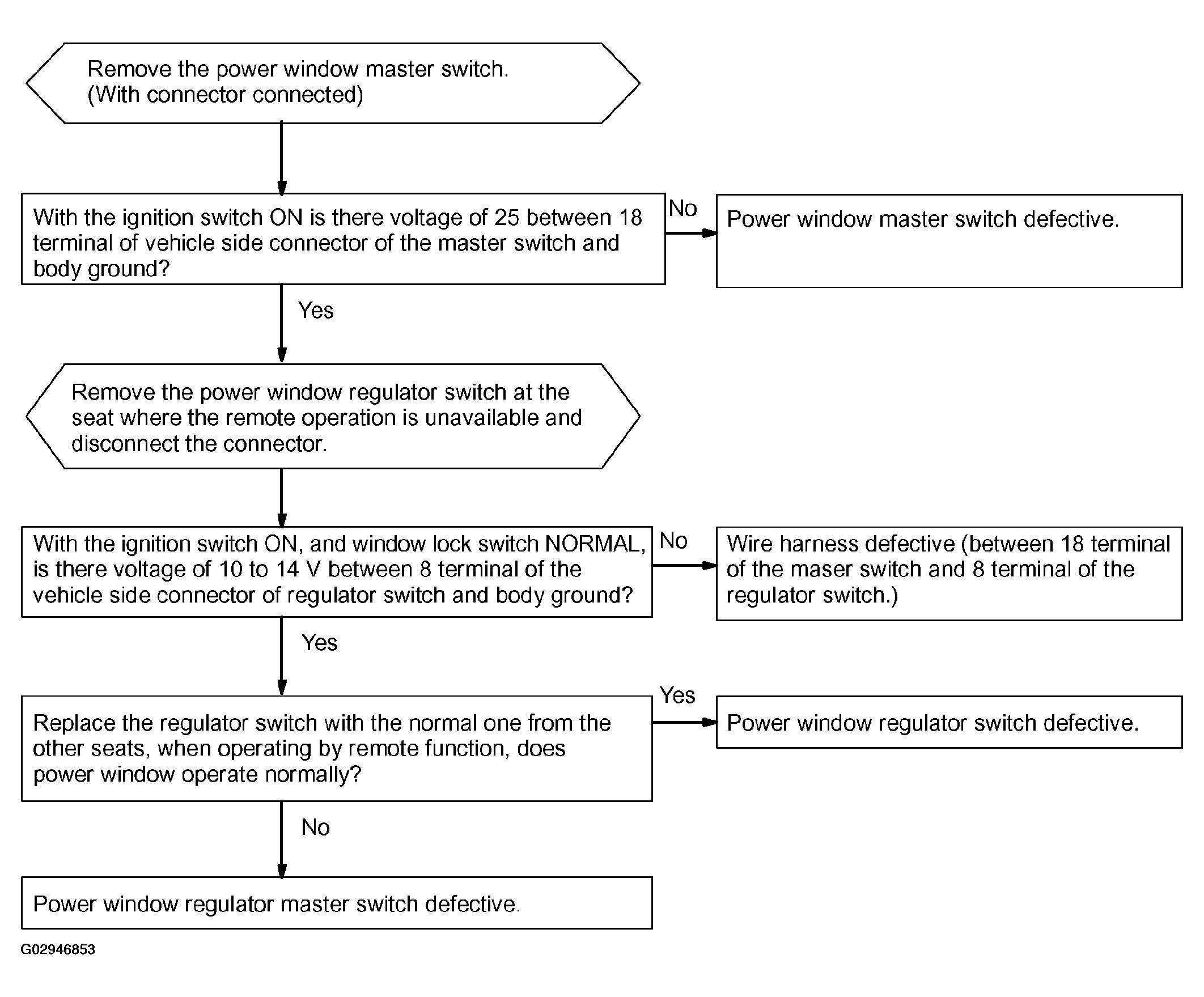

- Passenger's and all rear doors are not controlled remotely by using the master switch. (Switches at each door can be operated.)

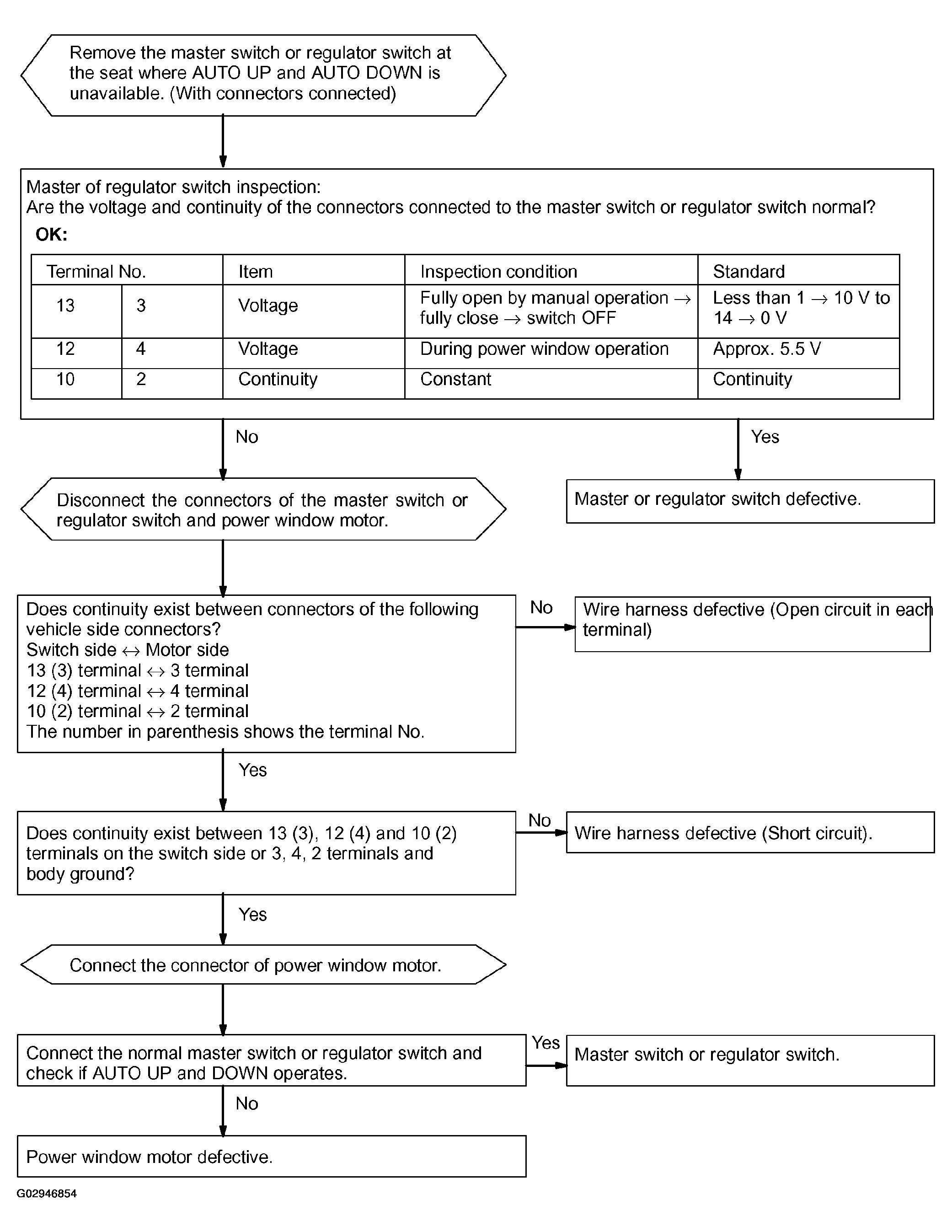

- AUTO UP and AUTO DOWN do not operate. (Prepare a normal master switch.)

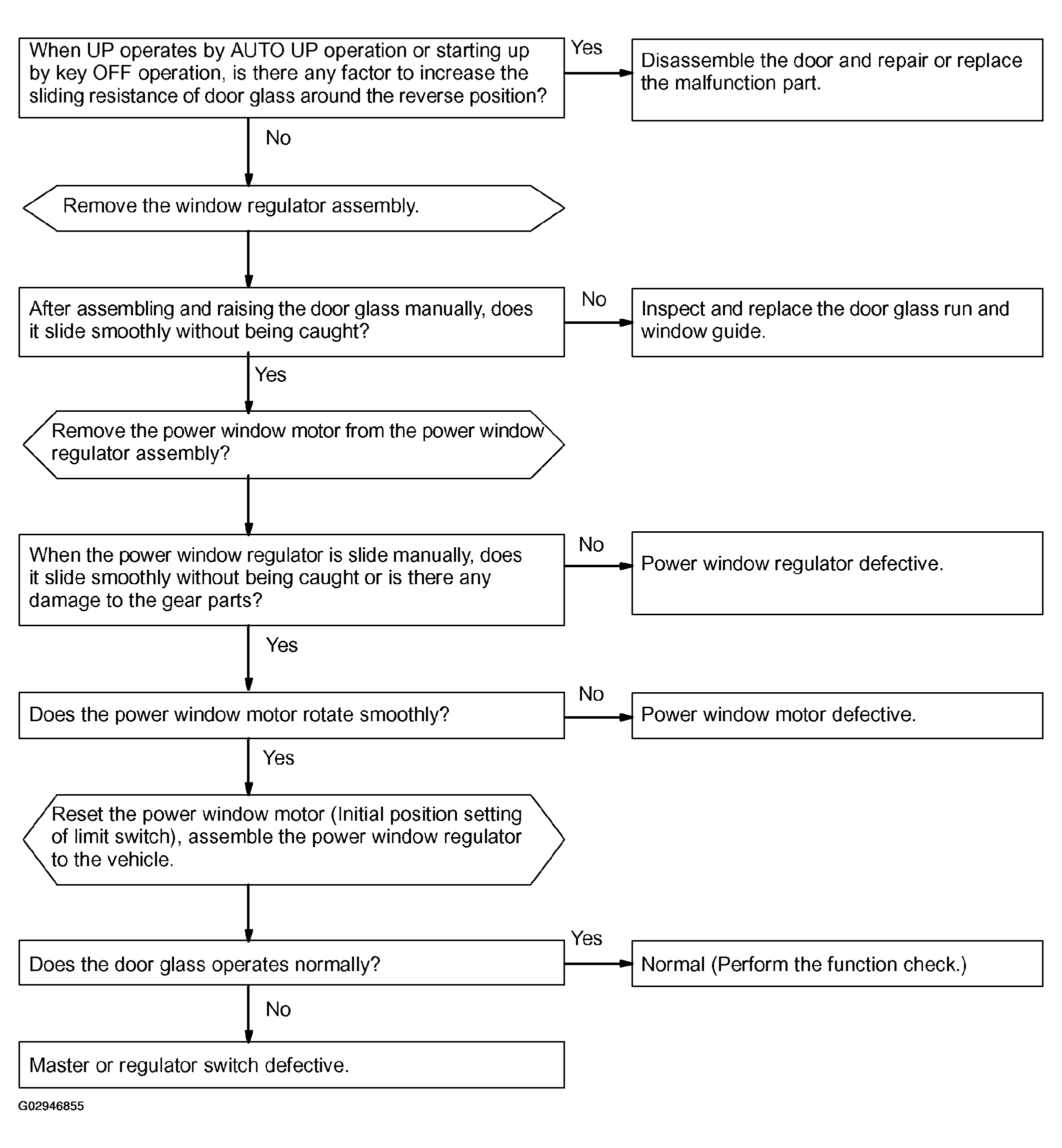

- DOWN operates during door glass AUTO UP operation.

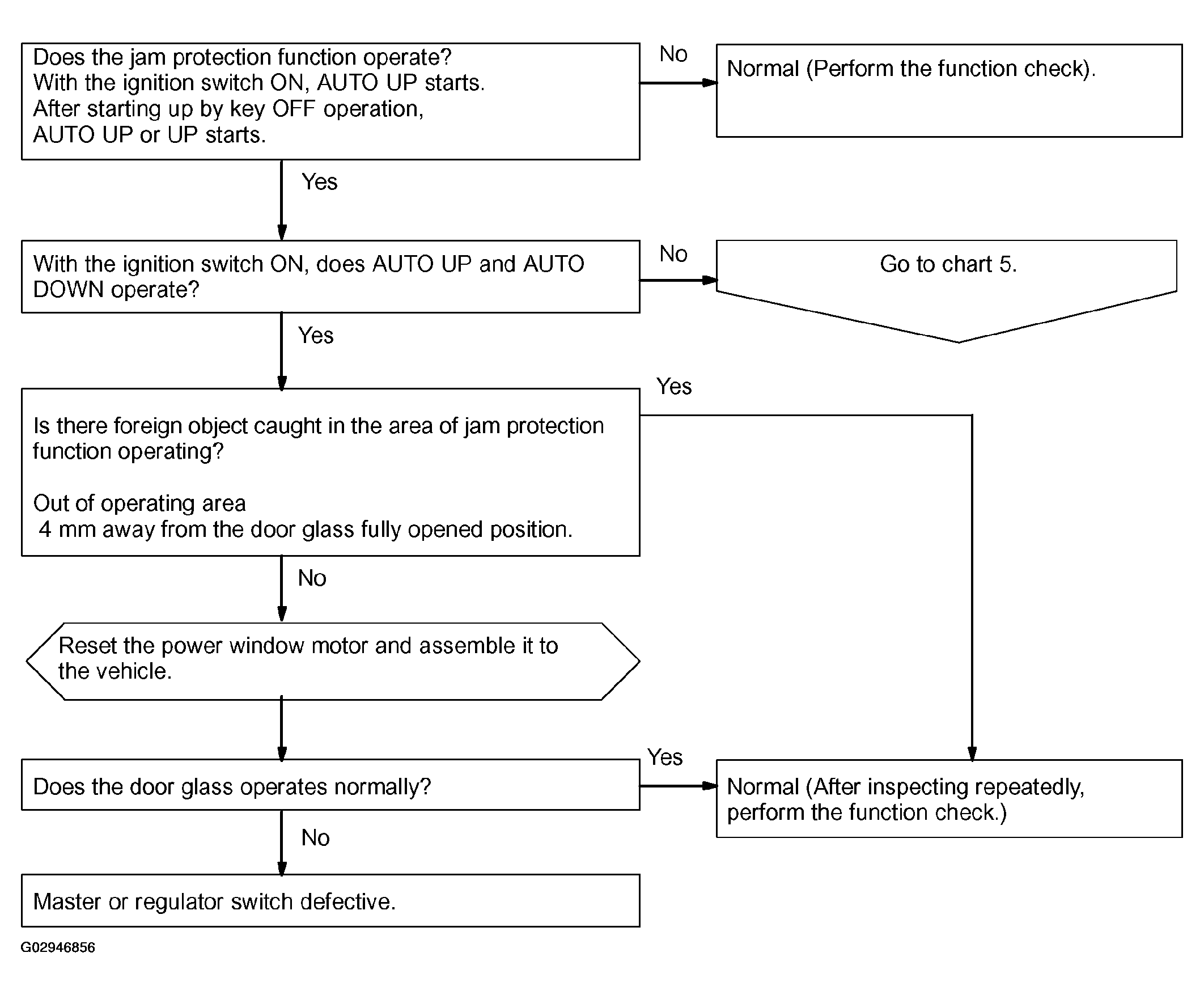

- Even through a foreign object is caught, DOWN operation does not function.
- After ignition switch has been turned OFF by using a key, power window function does not operate.
