Typical Malfunction Thresholds

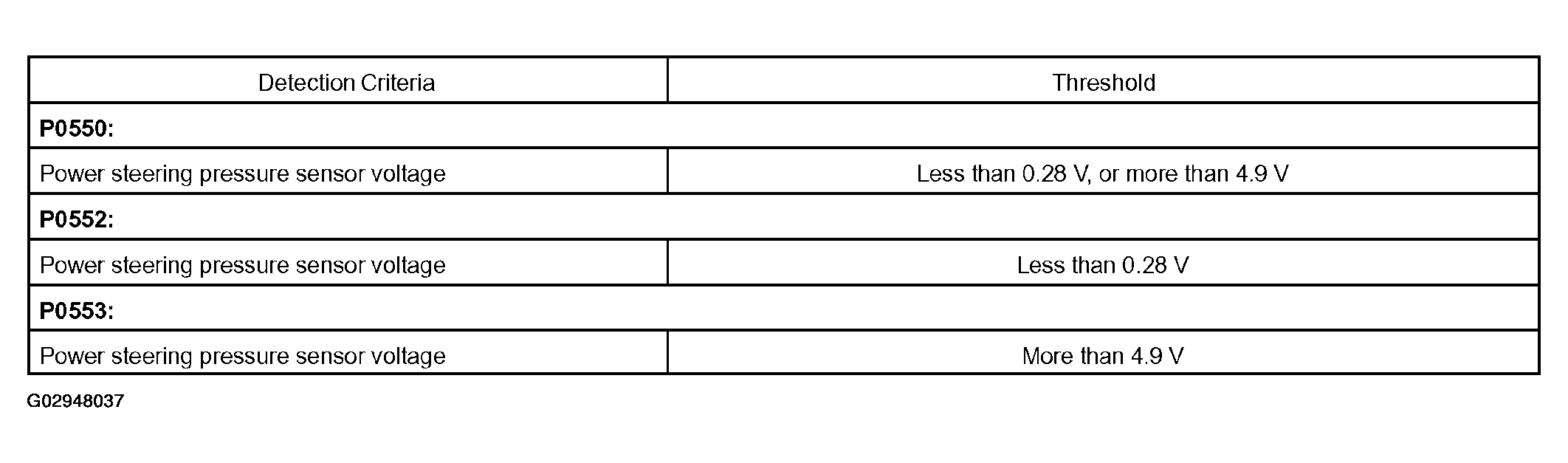

Fig 1: DTC P0550, P0552, P0553 Typical Malfunction Thresholds
G02948037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
