Cooling System (Mechanical): Cooling: Radiator: Components

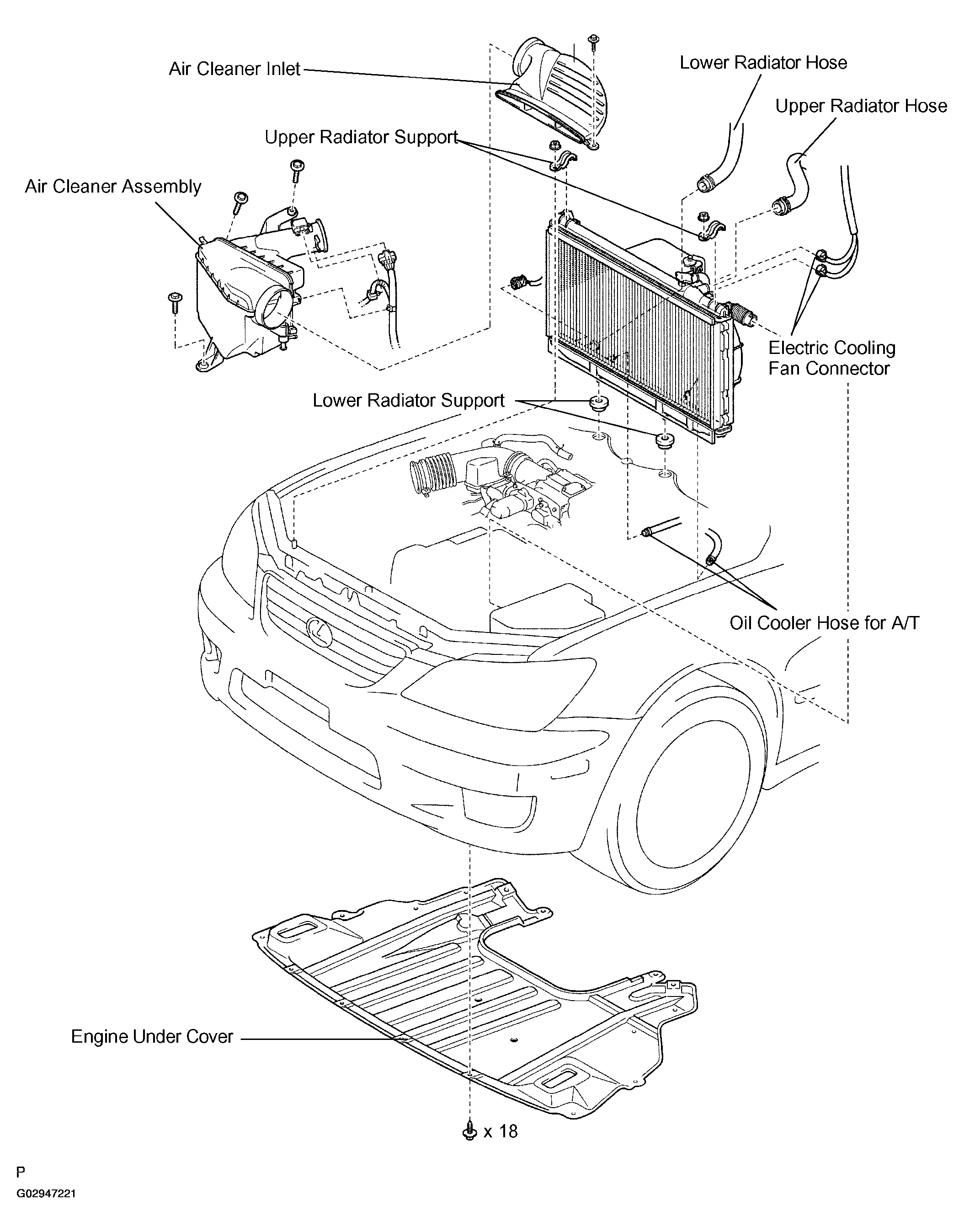

Fig 1: Exploded View Of Radiator
G02947221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

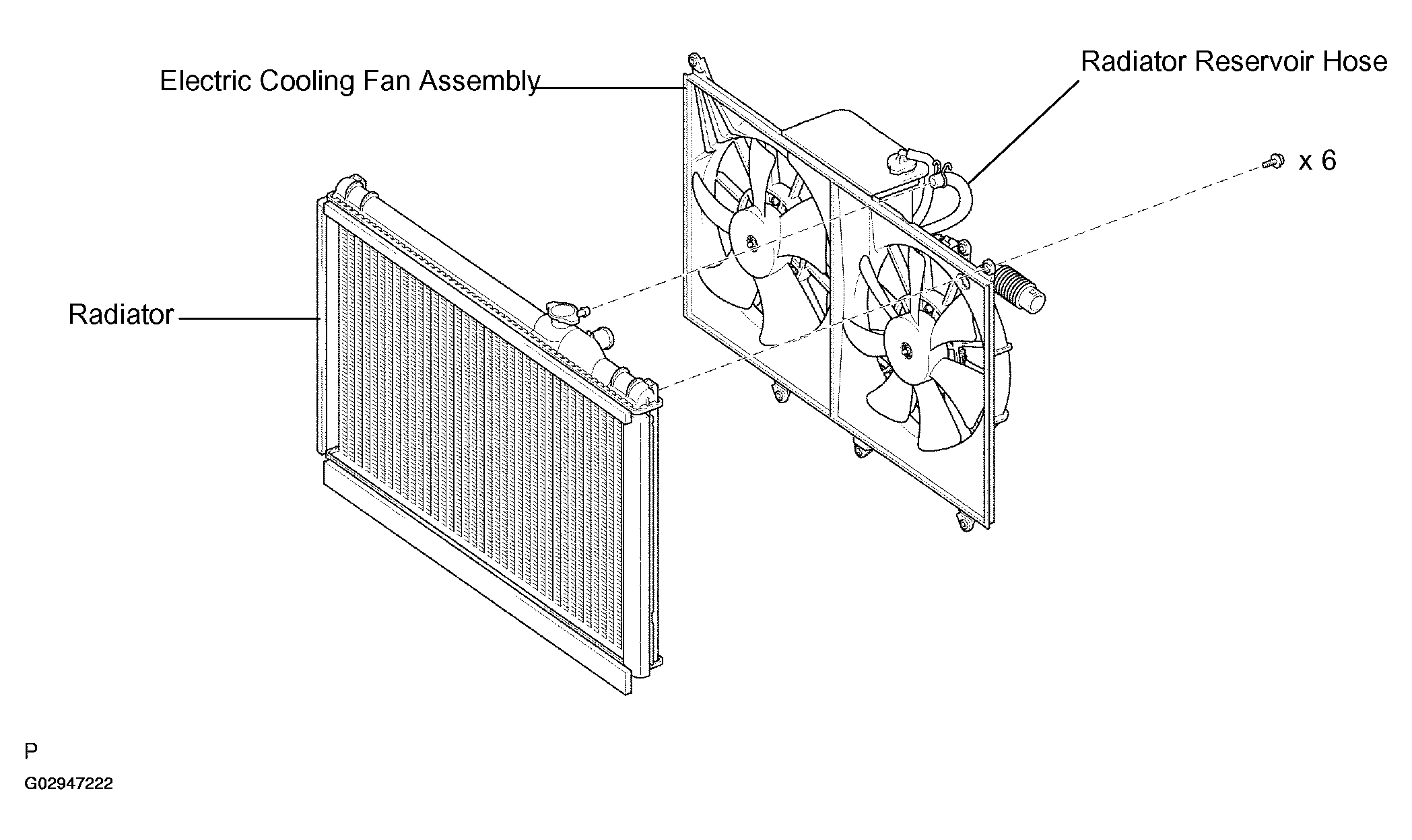

Fig 2: Removal And Installation Of Radiator (1 Of 2)
G02947222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

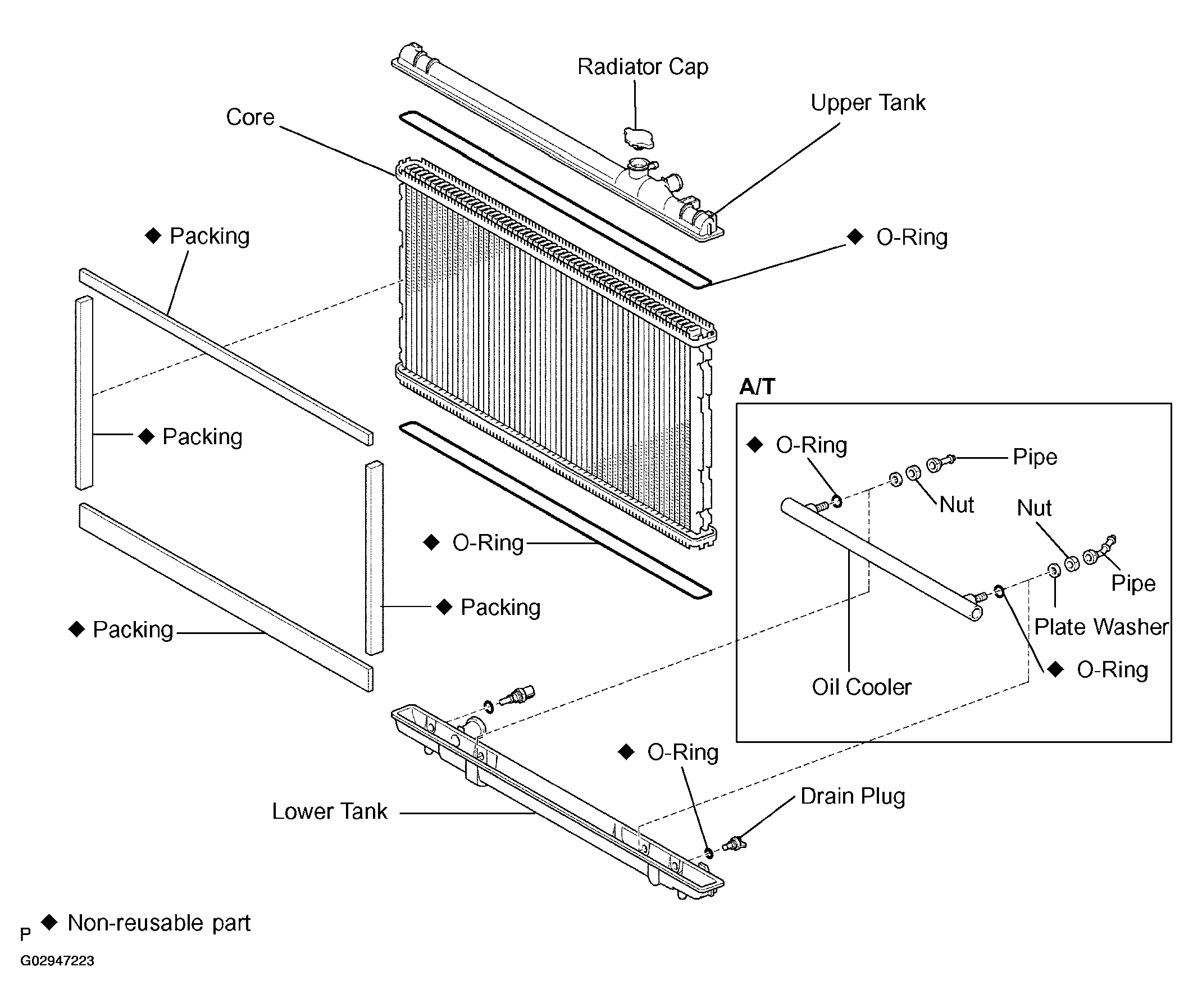

Fig 3: Removal And Installation Of Radiator (2 Of 2)
G02947223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
