Oil Pump: Components

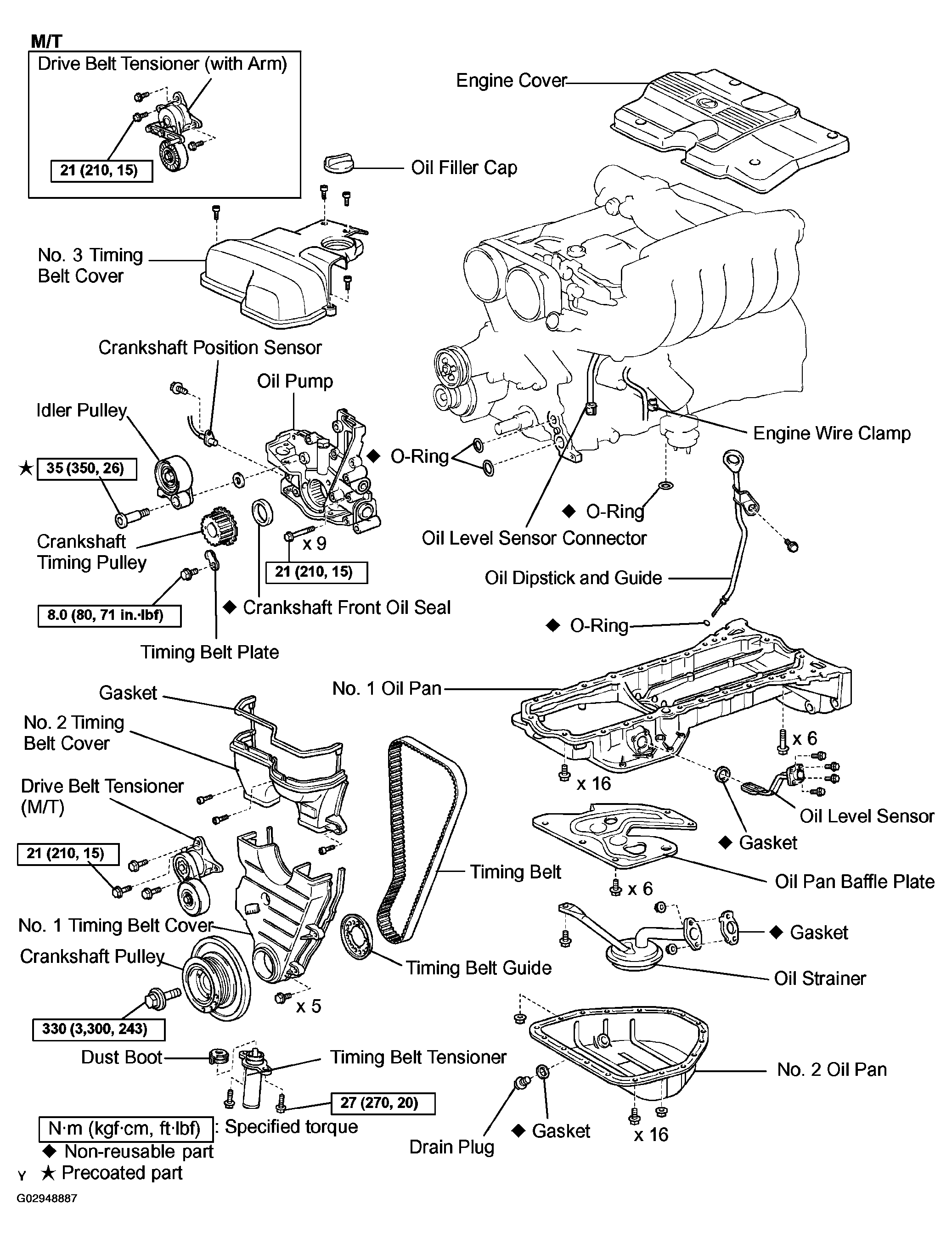

Fig 1: Exploded View Of Oil Pump Components With Torque Specifications
G02948887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

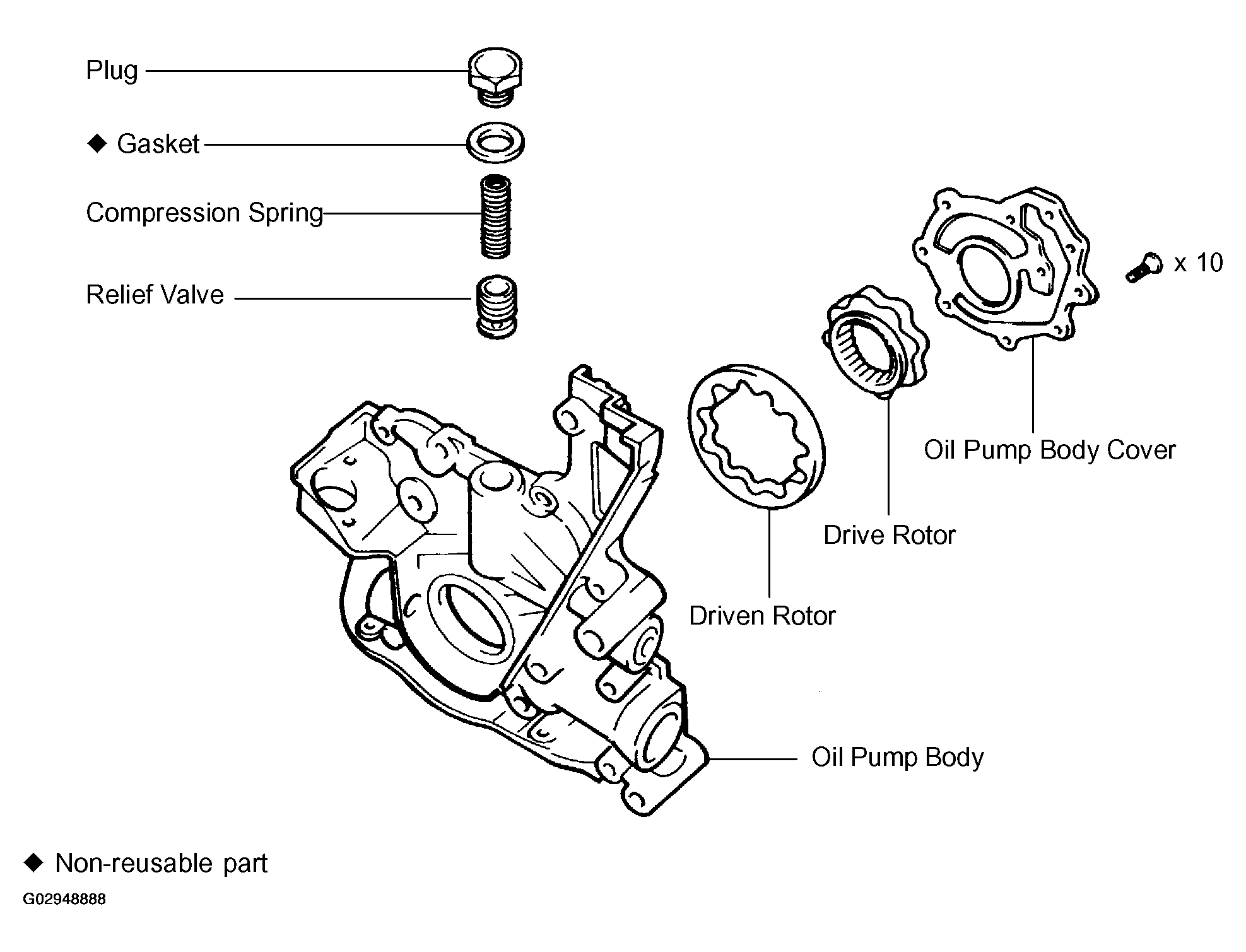

Fig 2: Exploded View Of Oil Pump Components
G02948888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
