Ignition System: Preparation: Brake: Preparation

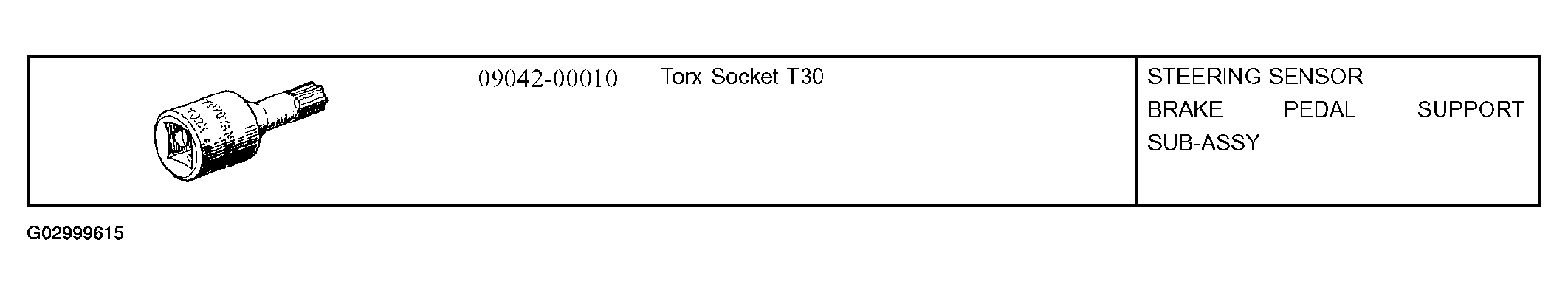

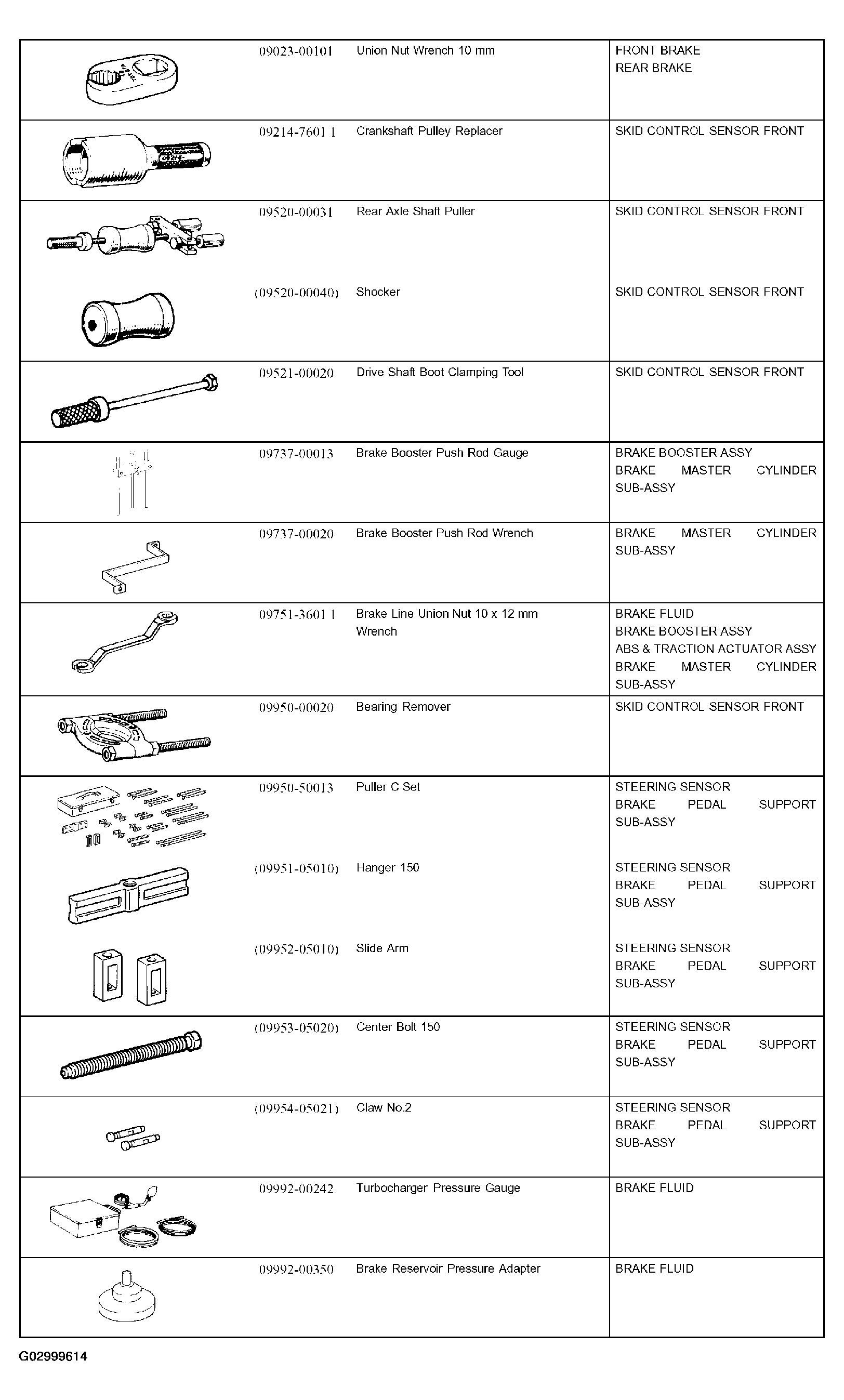

SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Equipment
EQUIPMENT
| Micrometer |
|
| Dial indicator w/ magnetic base |
|
| Brake drum gauge |
|
| Slide calipers |
|
| Torque wrench |
|
Lubricant
LUBRICANT CLASSIFICATION
| Item |
Capacity |
Classification |
| Brake fluid |
- |
SAE J1703 or FMVSS No. 116 DOT3 |
