Inspection Procedure

  1. Check voltage between terminals B1, ACC, IG and GND of multi-display assembly.
    1. Disconnect the connector from the multi-display assembly.
    2. Measure the voltage according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified condition
      B1 - GND1 Always 10 to 14 V
      ACC - GND1 Ignition SW ACC 10 to 14 V
      IG - GND1 Ignition SW ON 10 to 14 V

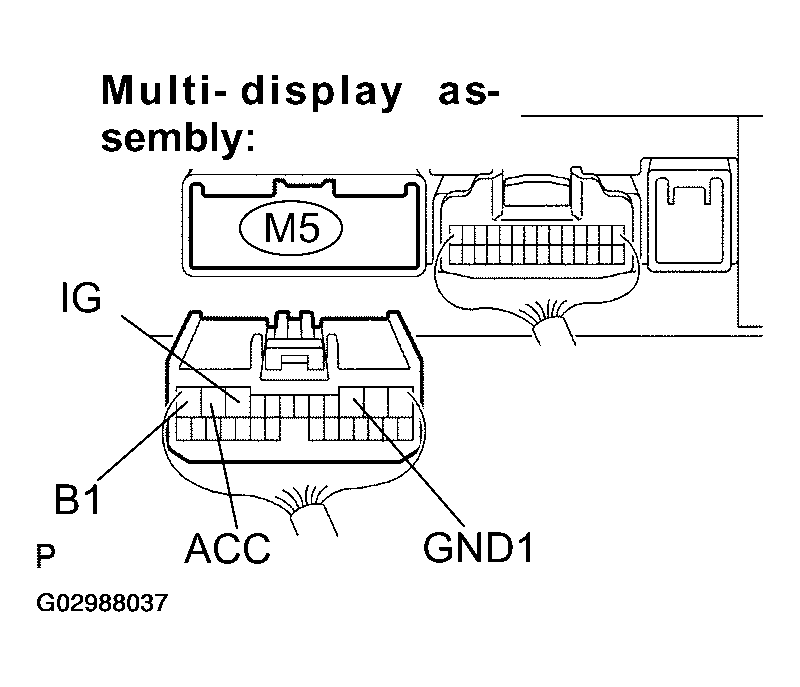

    Fig 1: Locating Terminals B1, ACC, IG and GND
    G02988037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Proceed to next circuit inspection shown in problem symptoms table. (See  PROBLEM SYMPTOMS TABLE   )
    2. NG: Go To Next Step.
  2. Check continuity between terminal GND1 of multi-display assembly and body ground.
    1. Disconnect the connector from the multi-display assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified condition
      GND1 - Body ground Always Below 1 Ω

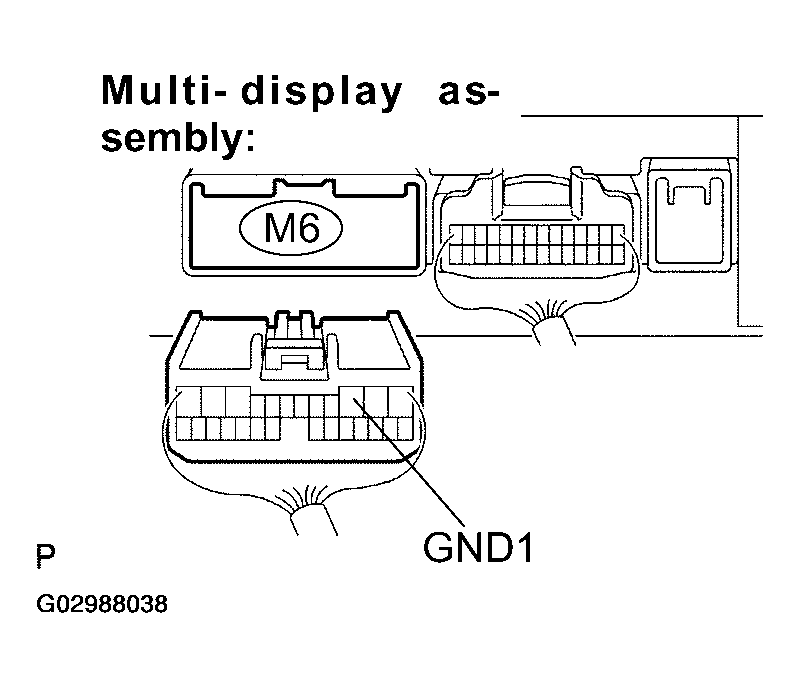

    Fig 2: Locating Terminal GND1
    G02988038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Repair or replace harness or connector between navigation ECU and fuse.
    2. NG: Repair or replace harness or connector between navigation ECU and body ground.
