Circuit Description

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

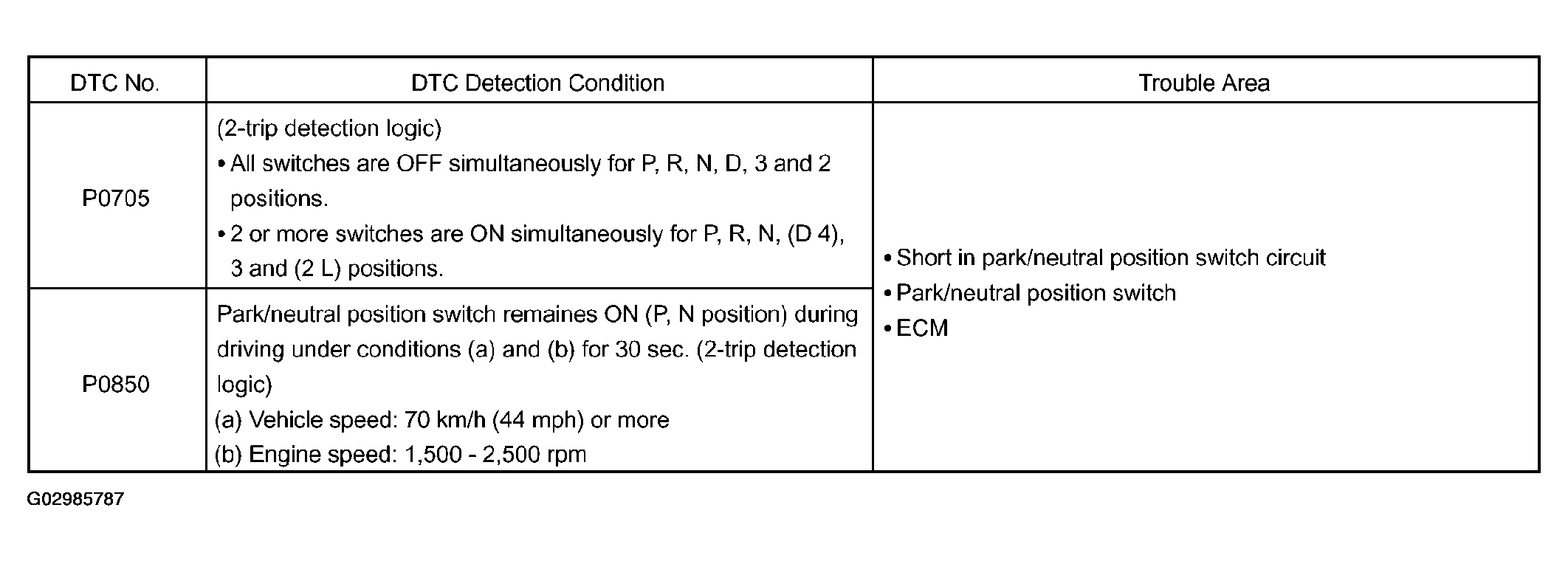

Fig 1: DTC Detection Condition And Trouble Area Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
