Inspection Procedure

HINT:

According to the DATA LIST displayed by the OBD II scan tool or Hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one method to shorten labor time.

1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect the OBD II scan tool or Hand-held tester to the DLC3.
4. Turn the ignition switch ON.
5. Push the "ON" button of OBD II scan tool or Hand-held tester.
6. Select the item "/DIAGNOSIS/ENHANCED OBD l l/DATA LIST/ALL (or ATM)".
7. According to the display on tester, read the "DATA LIST".

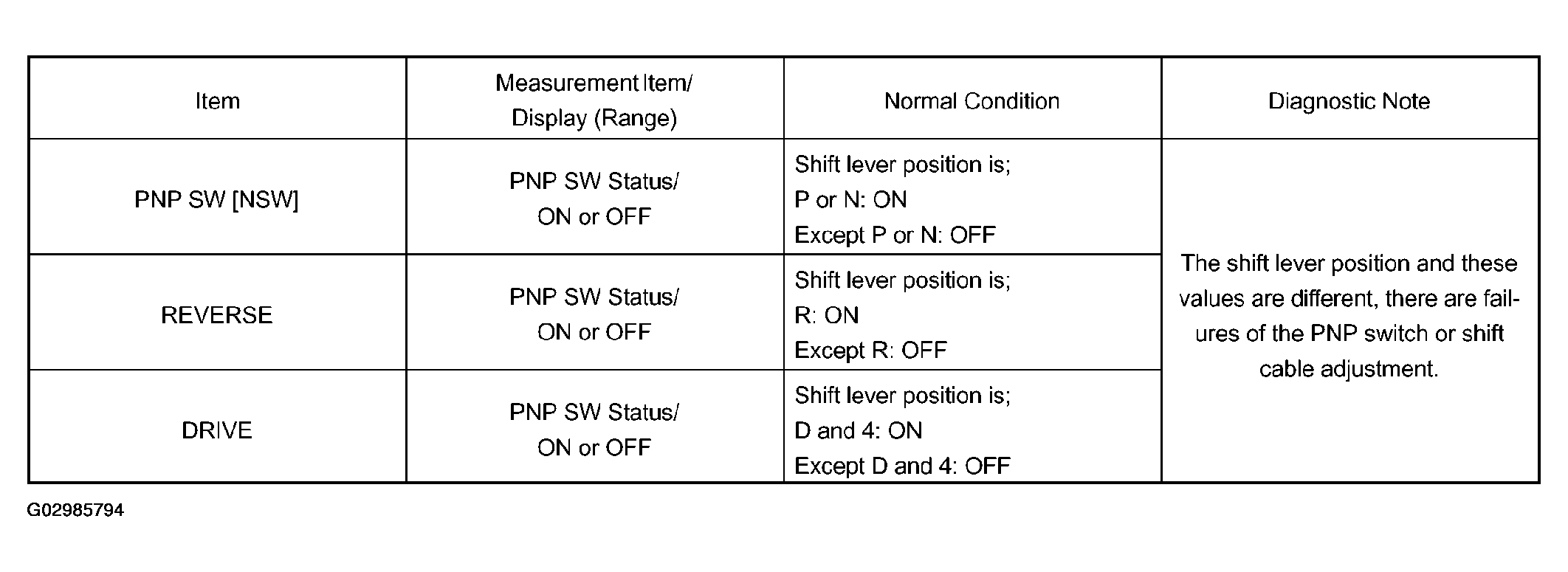

Fig 1: Data List Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check park/neutral position switch.

   PREPARATION:

   1. Jack up the vehicle.
   2. Disconnect the park/neutral position switch connector.
   Fig 2: Identifying Park/Neutral Position Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   CHECK:

   Check continuity between each terminal shown below when the shift lever is moved to each position.

   OK:

   SHIFT POSITION AND TERMINAL NO. TO CONTINUITY



   Shift position	Terminal No. to continuity	Terminal No. to continuity
   P	1-3	6-9
   R	2-3	-
   N	3-5	6-9
   D, 4	3-7	-
   3	3-4	-
   2, L	3-8	-

   1. NG : Replace park/neutral position switch (See  PARK/NEUTRAL POSITION (PNP) SWITCH  ).
   2. OK : Go to Next Step.
2. Check transmission control switch.

   PREPARATION:

   1. Connect the park/neutral position switch connector.
   2. Disconnect the shift lock control computer connector (transmission control switch).
   Fig 3: Identifying Shift Lock Control Computer Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   CHECK:

   Check continuity between each terminal of shift lock control computer (transmission control switch).

   OK:

   Fig 4: Tester Connection And Specified Value Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG : Replace the transmission control switch (See  FLOOR SHIFT ASSEMBLY  ).
   2. OK : Go to Next Step.
3. Measure voltage between each terminals of NSW, P, R, N, D, 4, 3, 2, L and E1 of ECM.

   PREPARATION:

   1. Connect the shift lock control computer connector (transmission control switch).
   2. Turn the ignition switch ON.

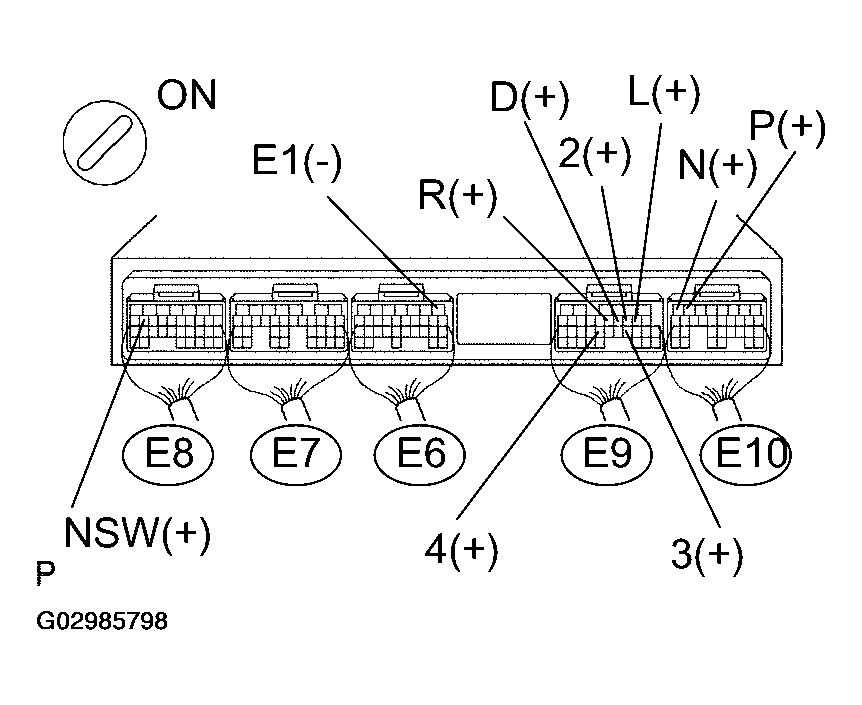

   Fig 5: Identifying ECM Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   CHECK:

   Measure voltage between each terminals NSW, P, R, N, D, 4, 3, 2, L and E1 of ECM when the shift lever is shifted to the following positions.

   OK:

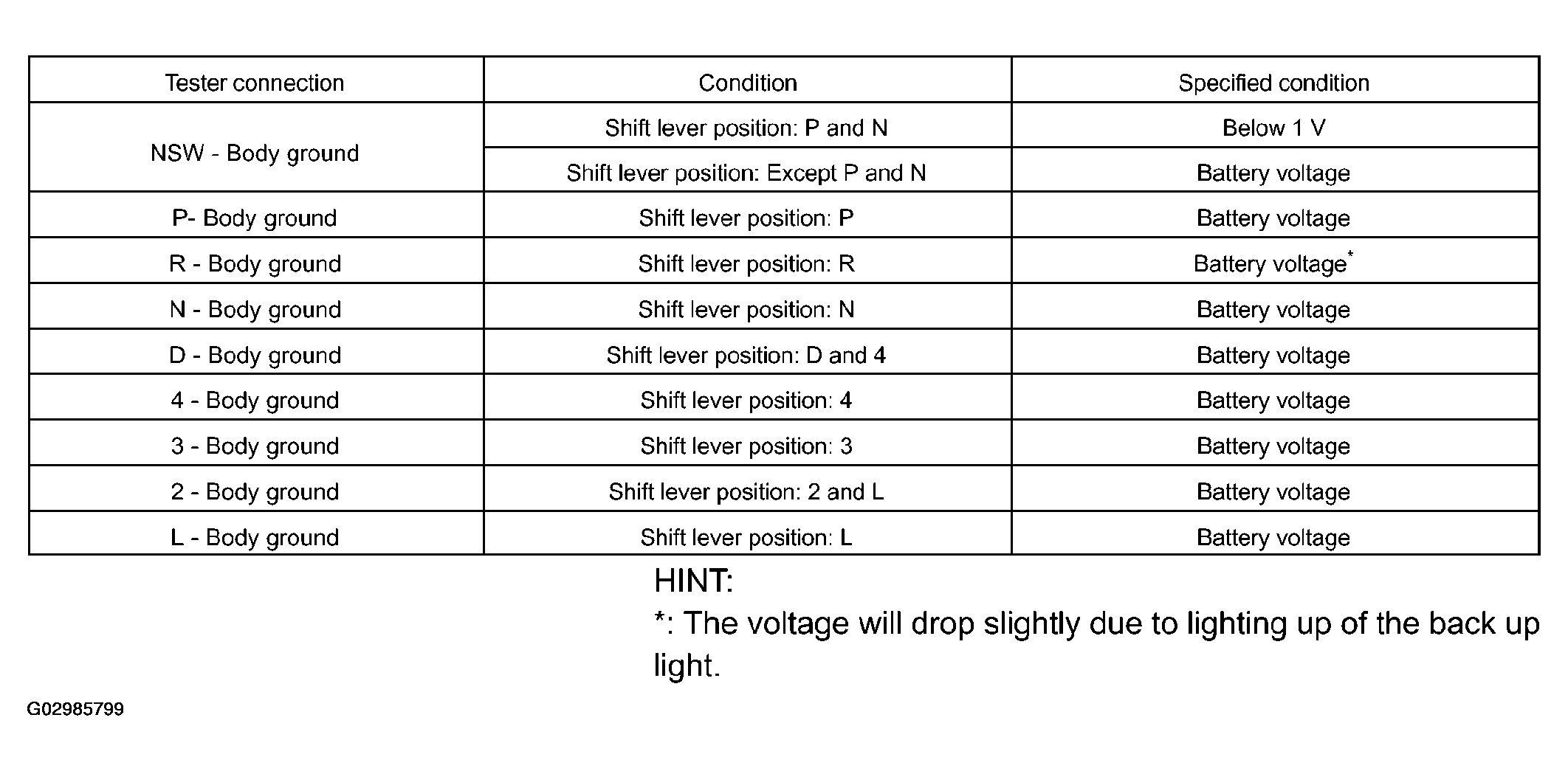

   Fig 6: Tester Connection And Specified Condition Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. OK : Check and replace the ECM (See  PROCEDURE  ).
   2. NG : Repair or replace the harness or connector (See  PROCEDURE  ).
