Height Control Sensor Sub-ASSY Rear LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before replacement, press the height control OFF switch to stop the vehicle height control operation.
The height control sensor RR RH and height control valve No.2 have the same shape connectors, therefore they might be wrongly connected. When installing them, Connect the connector with the distinction. Mark (white tape) on the wire harness to the height control sensor RR RH.

REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR LH (2WD DRIVE TYPE)
1. Disconnect the connector.
2. Remove the torx nut, the 2 nuts and the height control sensor RR LH from the vehicle.

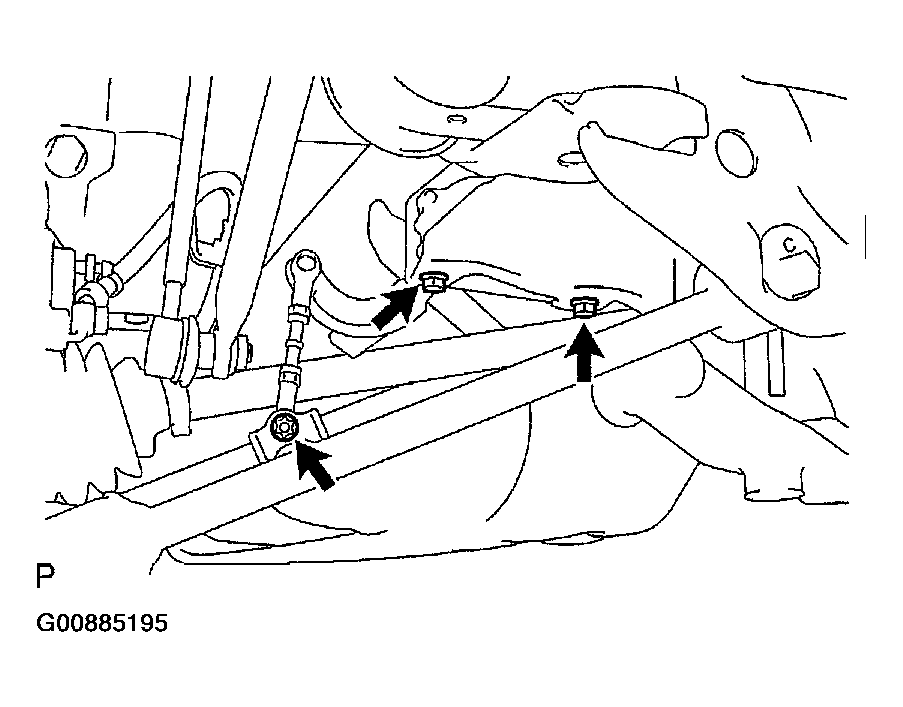

  Fig 1: Removing Height Control Sensor Sub-Assy Rear LH (2WD Drive Type)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR LH (4WD DRIVE TYPE)
1. Disconnect the connector.
2. Remove the torx nut, the 2 bolts and the height control sensor RR LH from the vehicle.

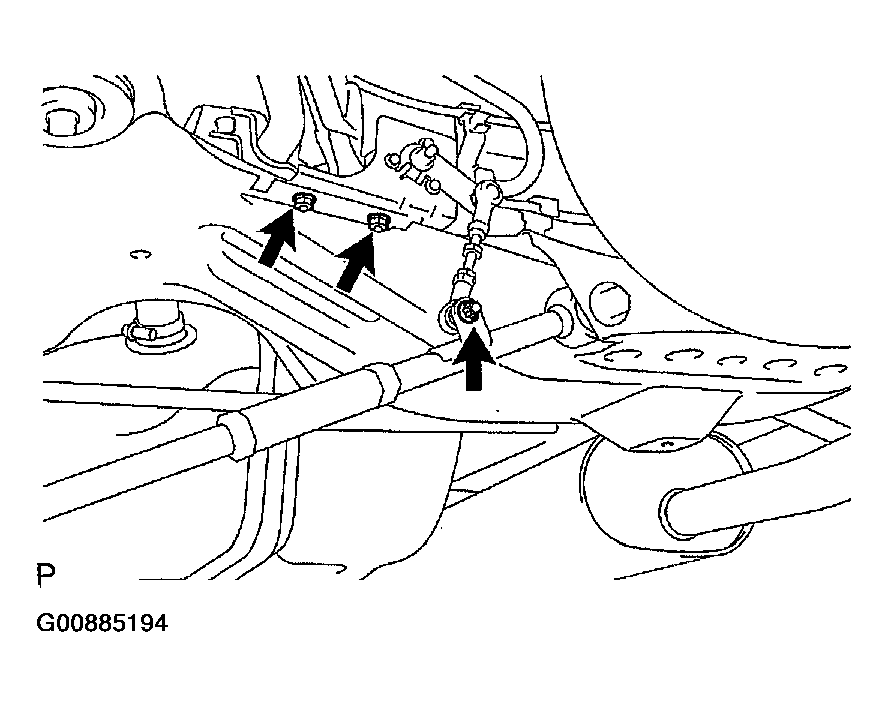

  Fig 2: Removing Height Control Sensor Sub-Assy Rear LH (4WD Drive Type)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR LH (2WD DRIVE TYPE)
1. Install the height control sensor RR LH with the torx nut and the 2 nuts.

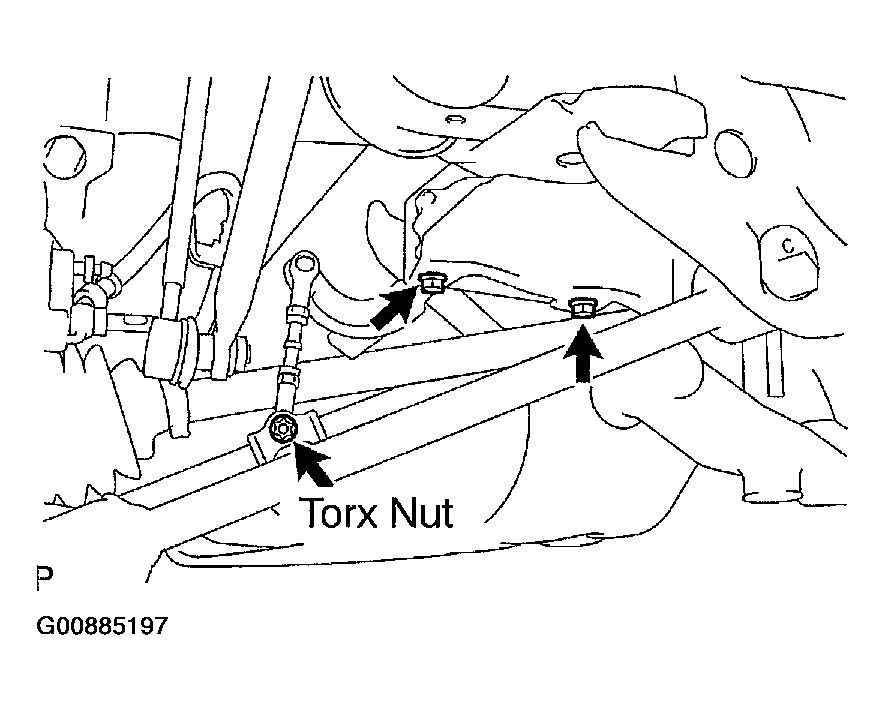

  Fig 3: Installing Height Control Sensor Sub-Assy Rear LH (2WD Drive Type)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque:

  7.8 N.m (80 kgf.cm, 69 in.lbf) (Nut)

  5.4 N.m (55 kgf.cm, 48 in.lbf) (Torx nut)
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR LH (4WD DRIVE TYPE)
1. Install the height control sensor RR LH with the torx nut and the 2 bolts.

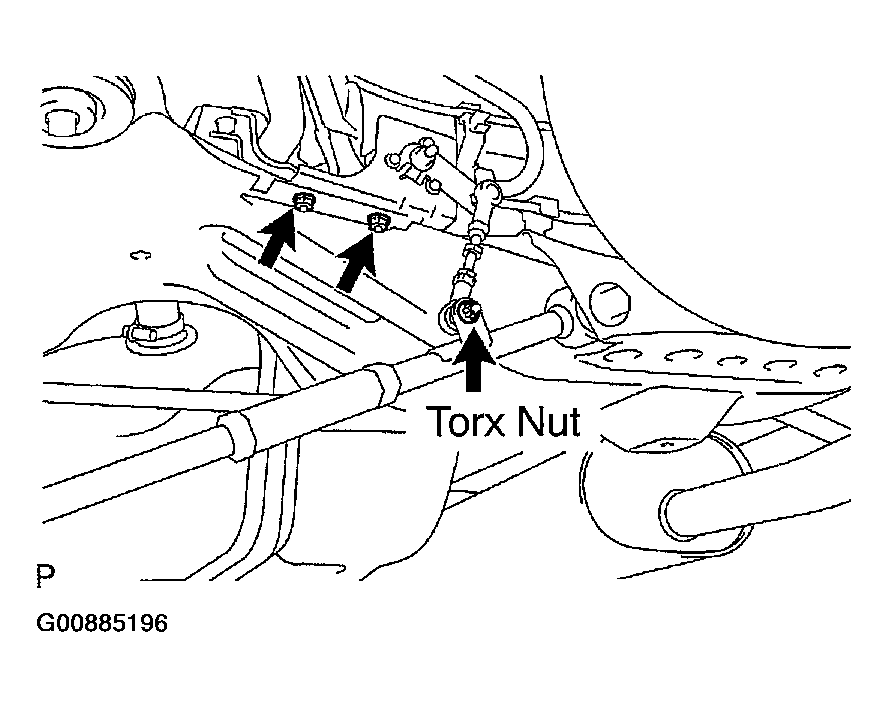

  Fig 4: Installing Height Control Sensor Sub-Assy Rear LH (4WD Drive Type)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque:

  7.8 N.m (80 kgf.cm, 69 in.lbf) (Bolt)

  5.4 N.m (55 kgf.cm, 48 in.lbf) (Torx nut)
ADJUST VEHICLE HEIGHT (See PRE-CHECK )
