Navigation Ecu: Replacement

HINT:

LOCATION : See

1. REMOVE DECK BOARD SUB-ASSY (See  REPLACEMENT  )
2. REMOVE TONNEAU COVER ASSY
3. REMOVE DECK FLOOR BOX FRONT (See  REPLACEMENT  )
4. REMOVE DECK FLOOR BOX REAR (See  REPLACEMENT  )
5. REMOVE DECK BOARD SUB-ASSY NO.2 (See  REPLACEMENT  )
6. REMOVE DECK BOARD SUB-ASSY NO.3
7. REMOVE DECK SIDE TRIM BOX RH (See  REPLACEMENT  )
8. REMOVE NAVIGATION ECU W/BRACKET
   1. Disconnect the connector.
   2. Disconnect the wire-harness clmp.
   3. Remove the 3 nuts and the navigation ECU w/ bracket.

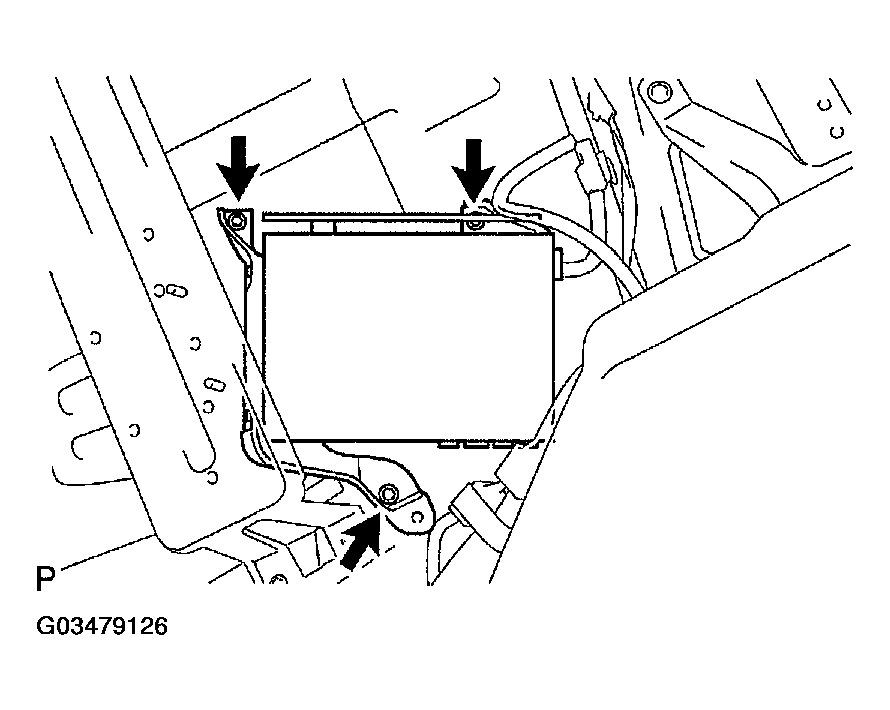

      Fig 1: Removing Navigation ECU W/ Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE DISC PLAYER BRACKET
   1. Remove the screw and the disc player bracket.
      Fig 2: Removing Disc Player Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE DISC PLAYER BRACKET NO.2
    1. Remove the 2 screws and the disc player bracket No.2.
       Fig 3: Removing Disc Player Bracket No.2

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE NAVIGATION ECU
