AVC-LAN Circuit (Navigation Ecu - Multi-Display Controller Sub-ASSY): Wiring Diagram

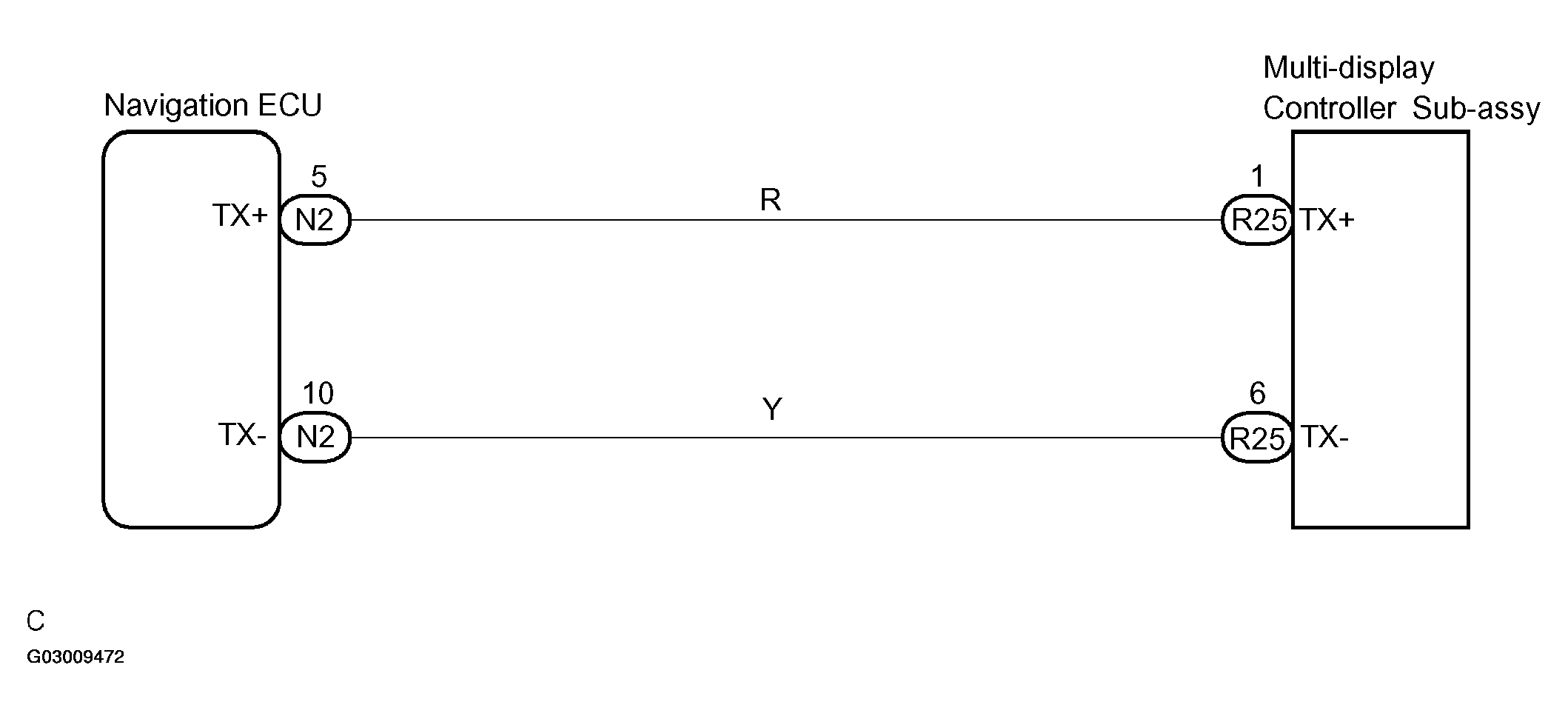

Fig 1: AVC-LAN Circuit (Navigation ECU - Multi-Display Controller Sub-Assy) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
