Engine Control Systems: Preparation: Differential: Preparation: SST

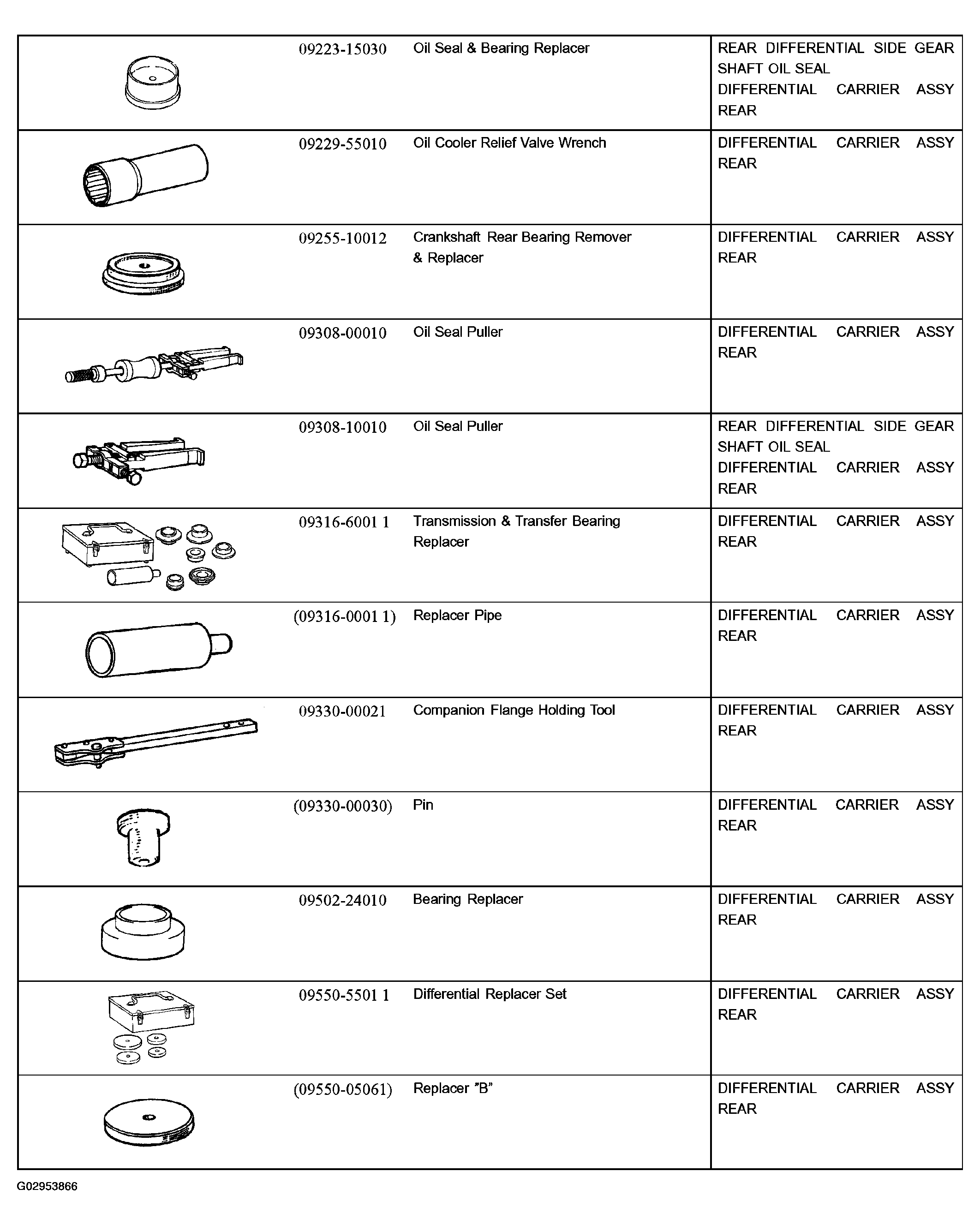

Fig 1: Differential - Preparation Special Tools Specifications Table (1 Of 3)
G02953866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

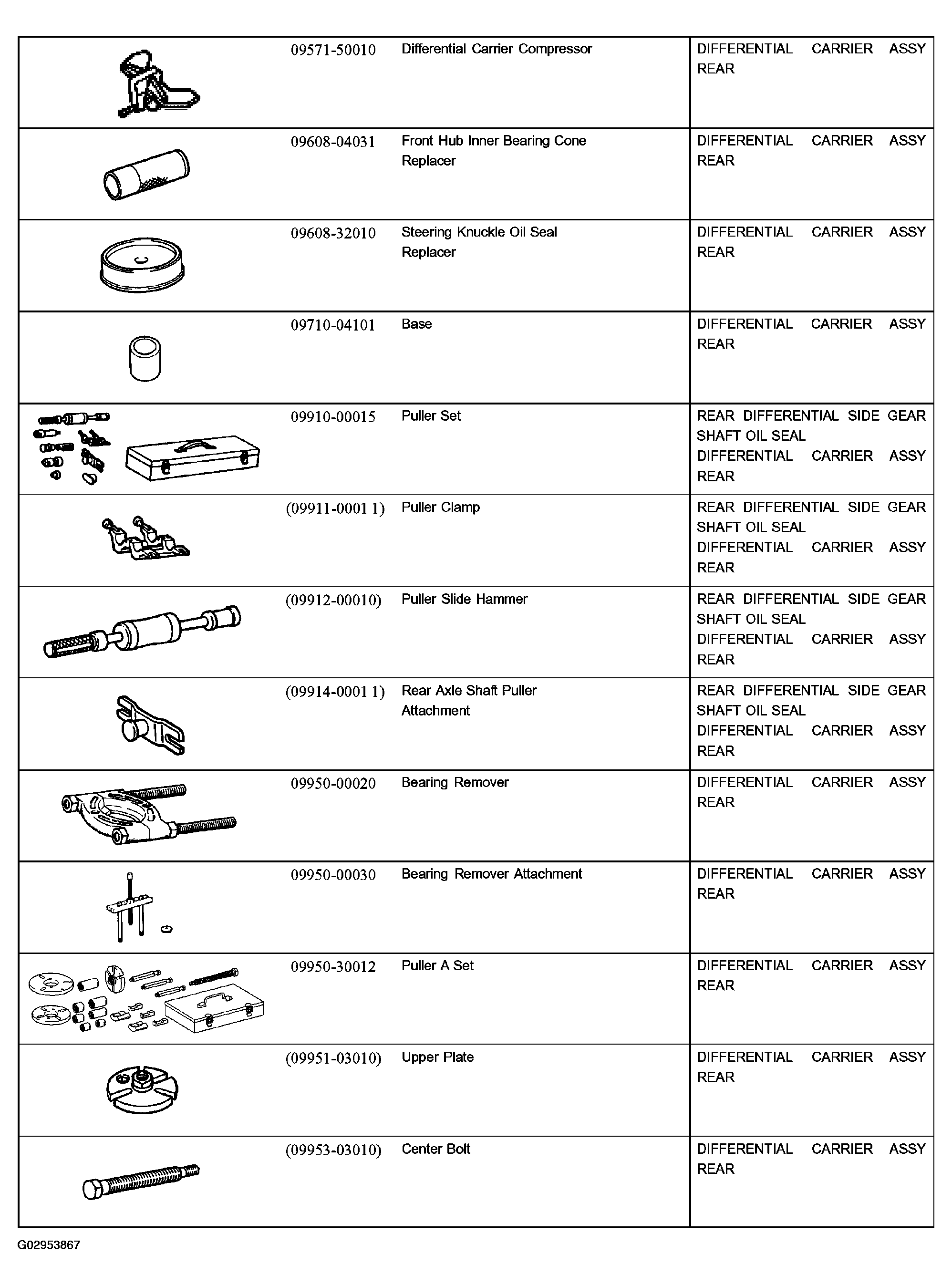

Fig 2: Differential - Preparation Special Tools Specifications Table (2 Of 3)
G02953867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

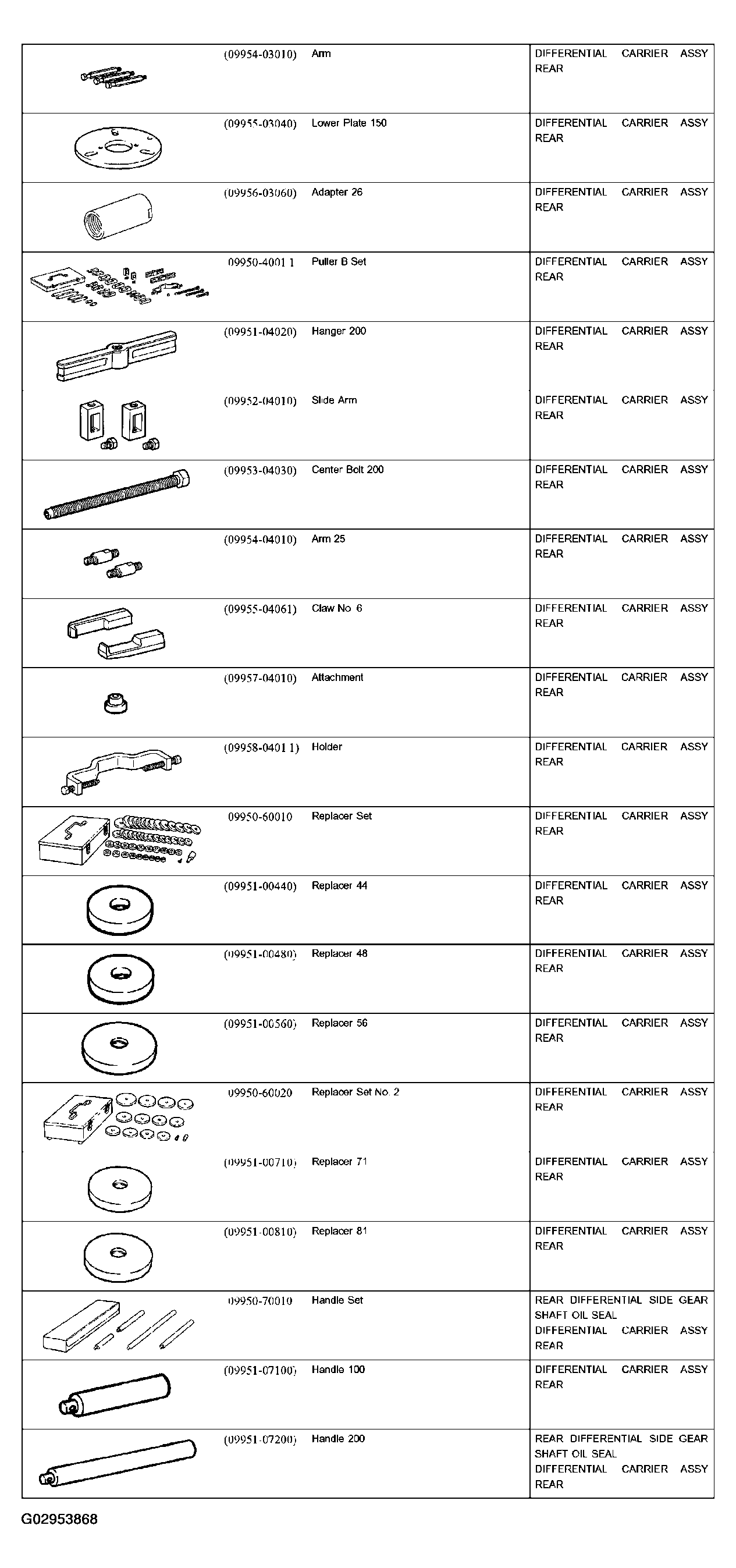

Fig 3: Differential - Preparation Special Tools Specifications Table (3 Of 3)
G02953868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
