Power Window Control System - Diagnostics: Location

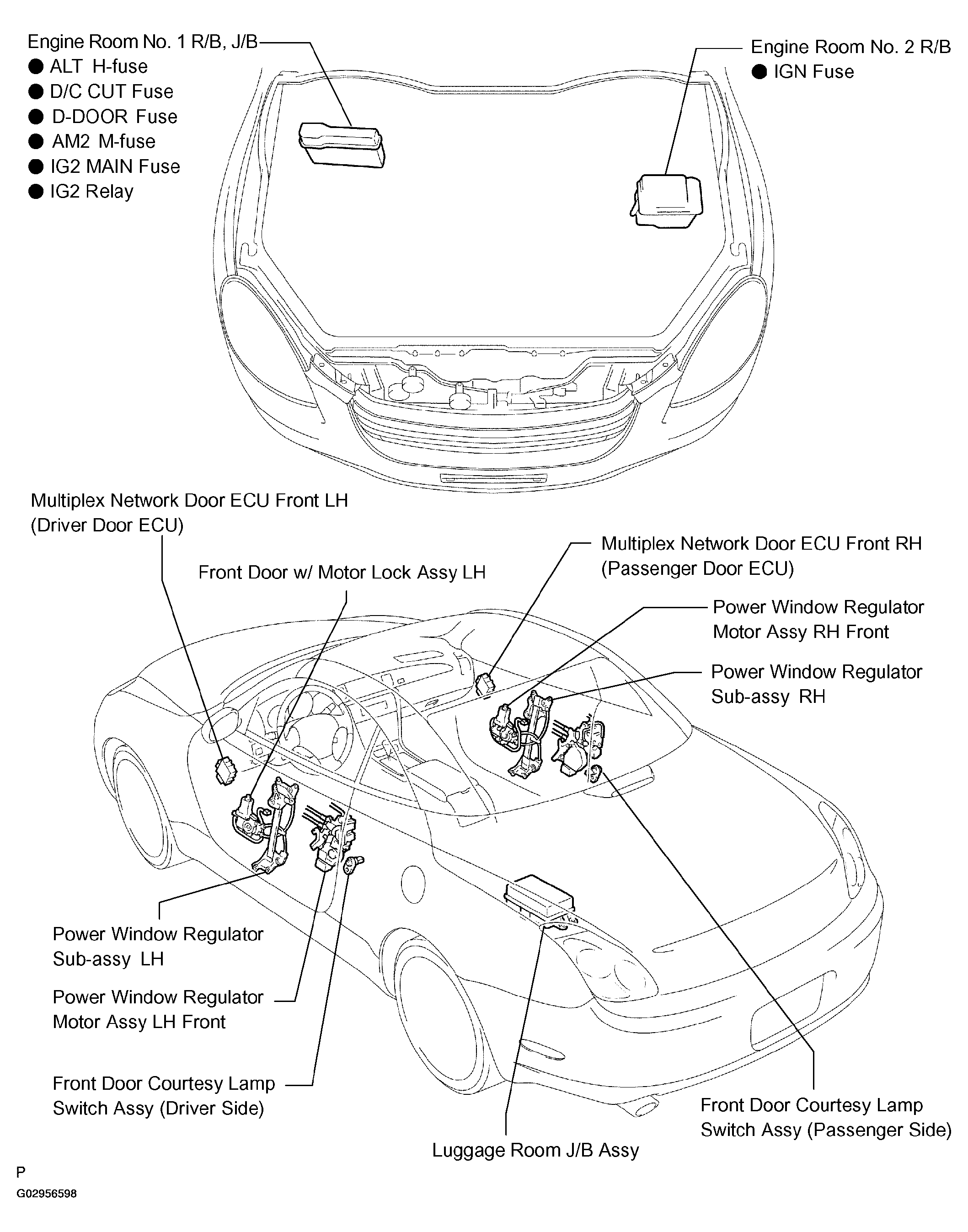

Fig 1: Identifying Location Of Power Window Control System Components & Replacements (1 Of 2)
G02956598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

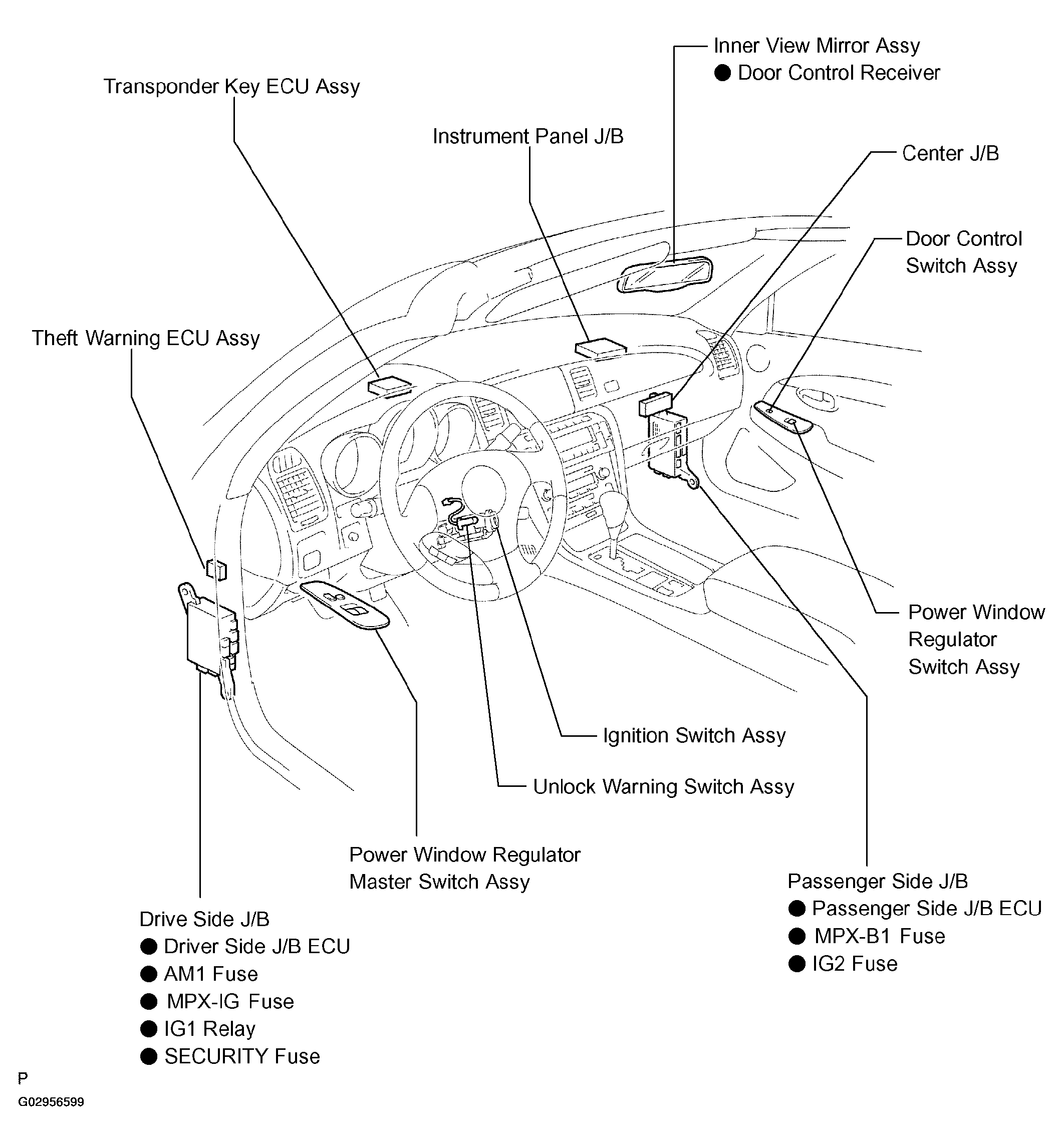

Fig 2: Identifying Location Of Power Window Control System Components & Replacements (2 Of 2)
G02956599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
