Remote Up/Down Function Does Not Operate: Wiring Diagram

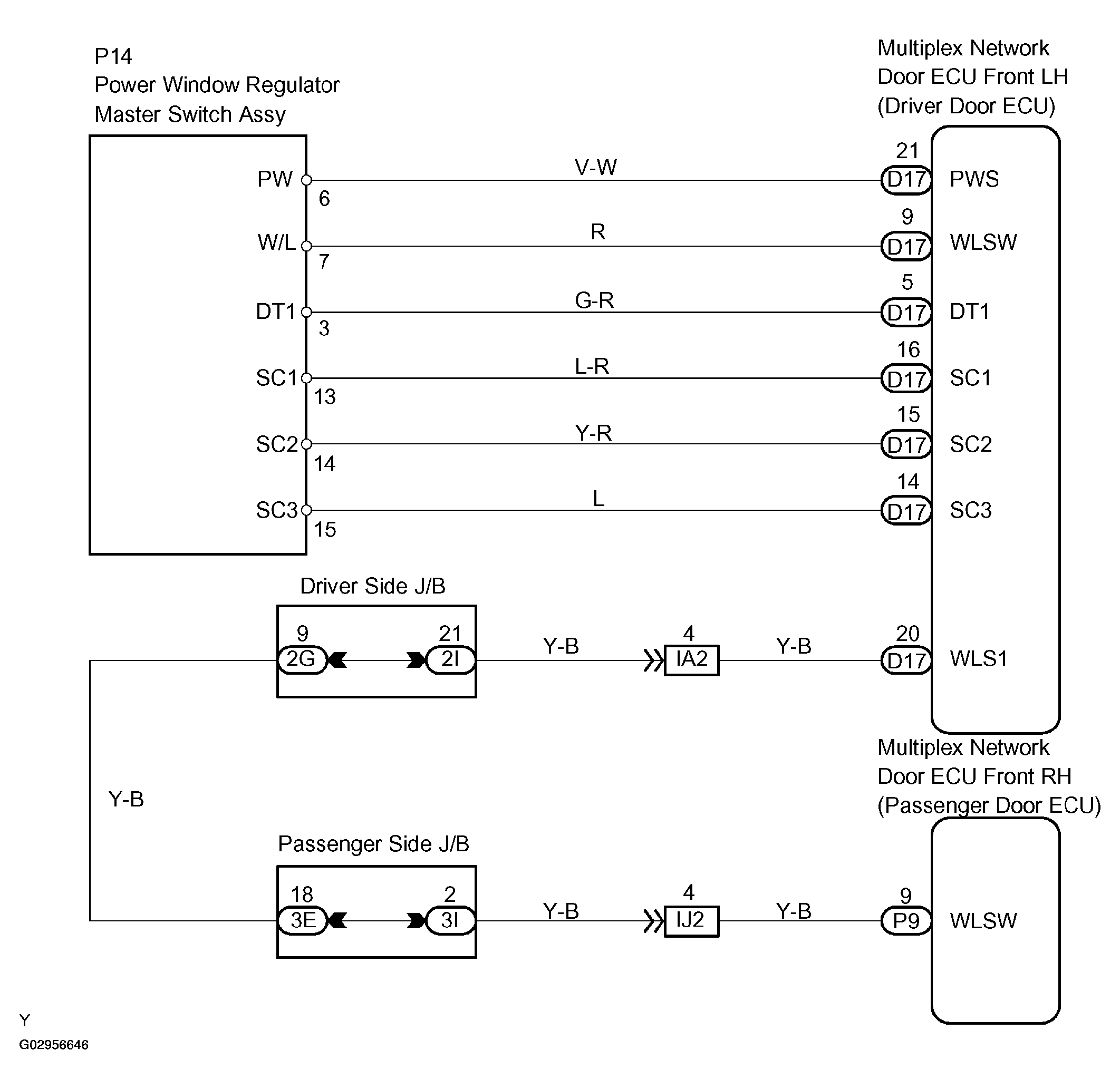

Fig 1: Remote Up/Down Function Does Not Operate Wiring Diagram
G02956646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
