Fuel Tank ASSY: Components

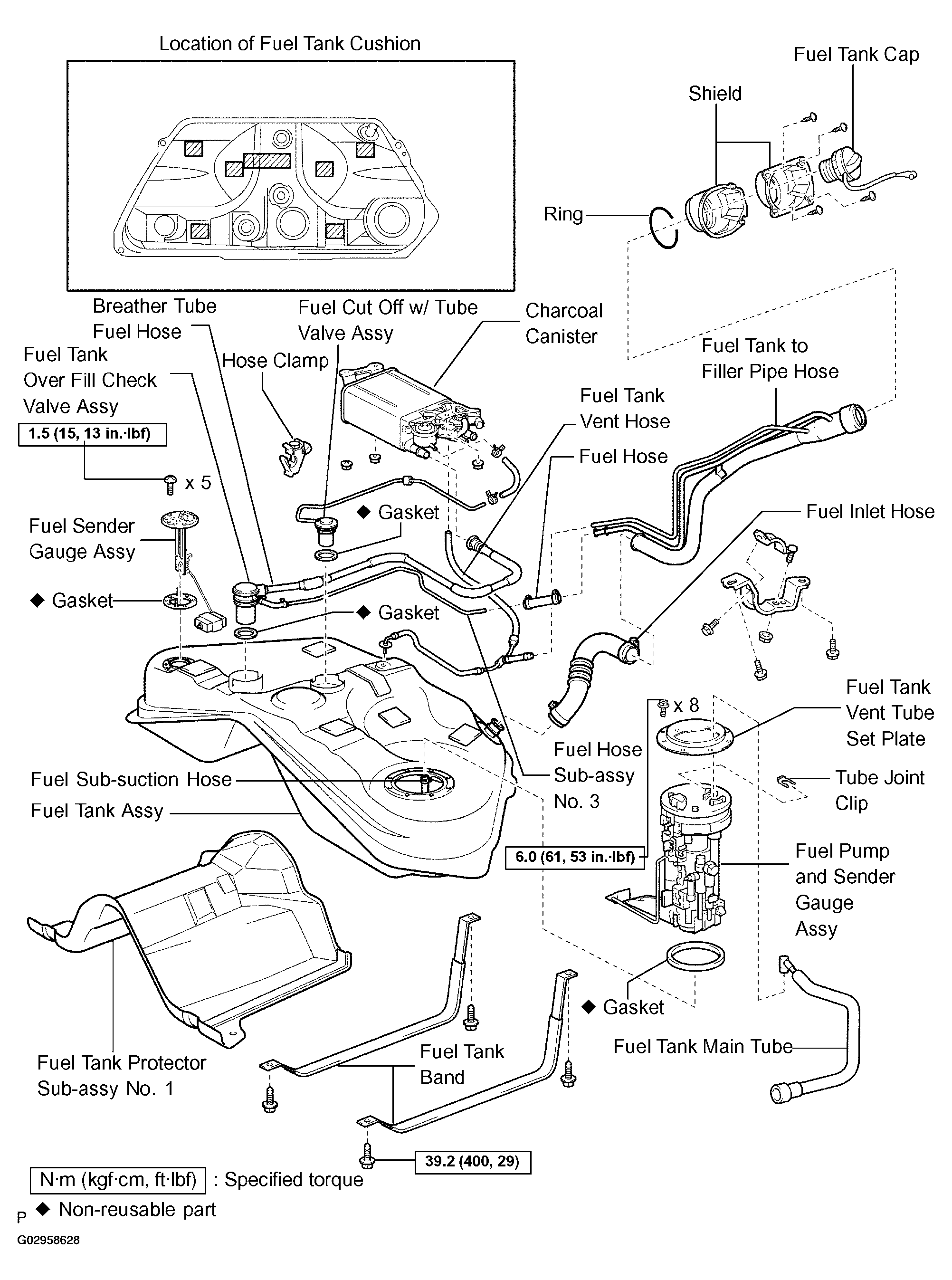

Fig 1: Identifying Fuel Tank Assy Components & Replacements
G02958628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
