Engine Performance
>>
System
>>
SFI System - Diagnostics
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

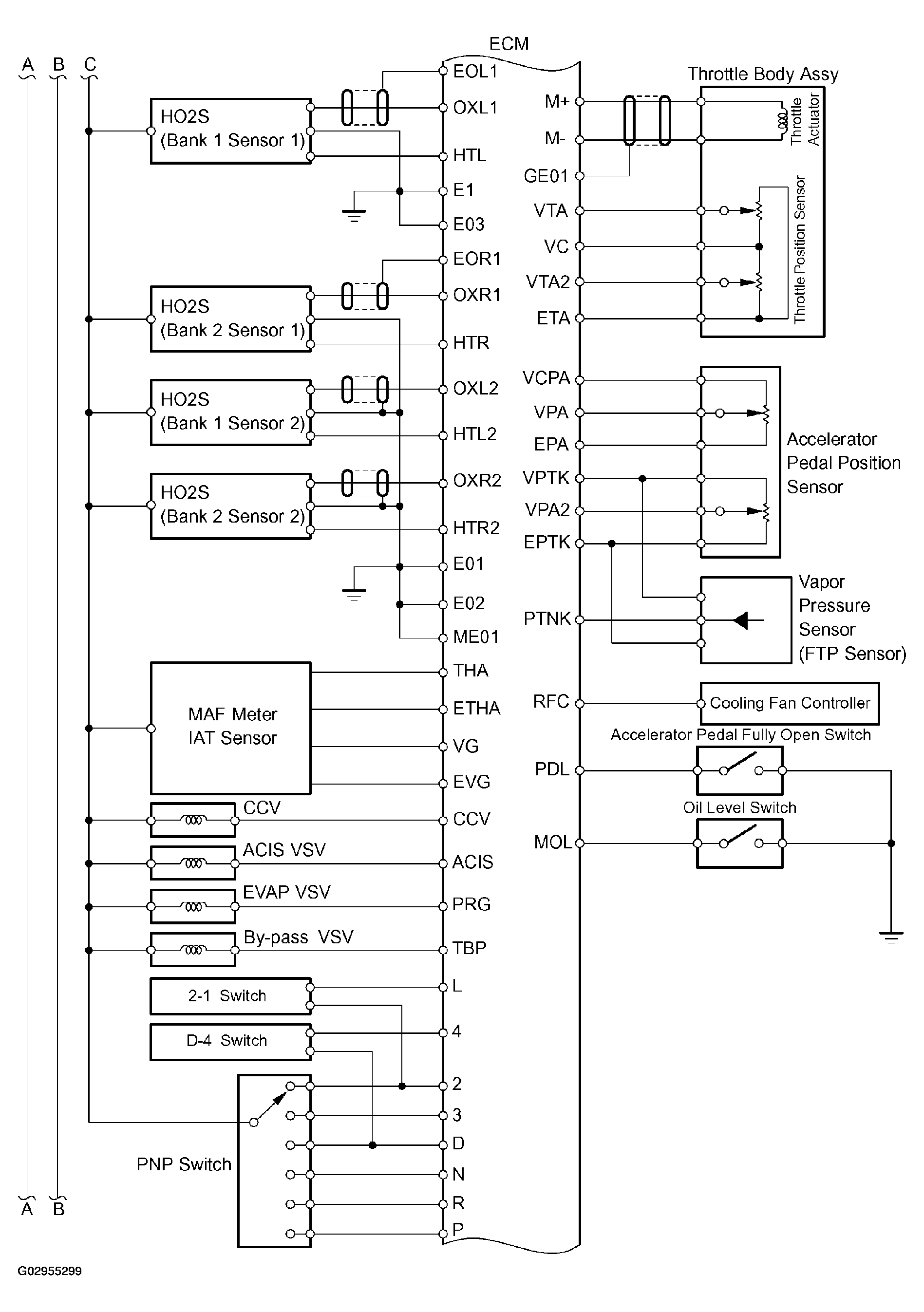

Fig 1: SFI System Diagram Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

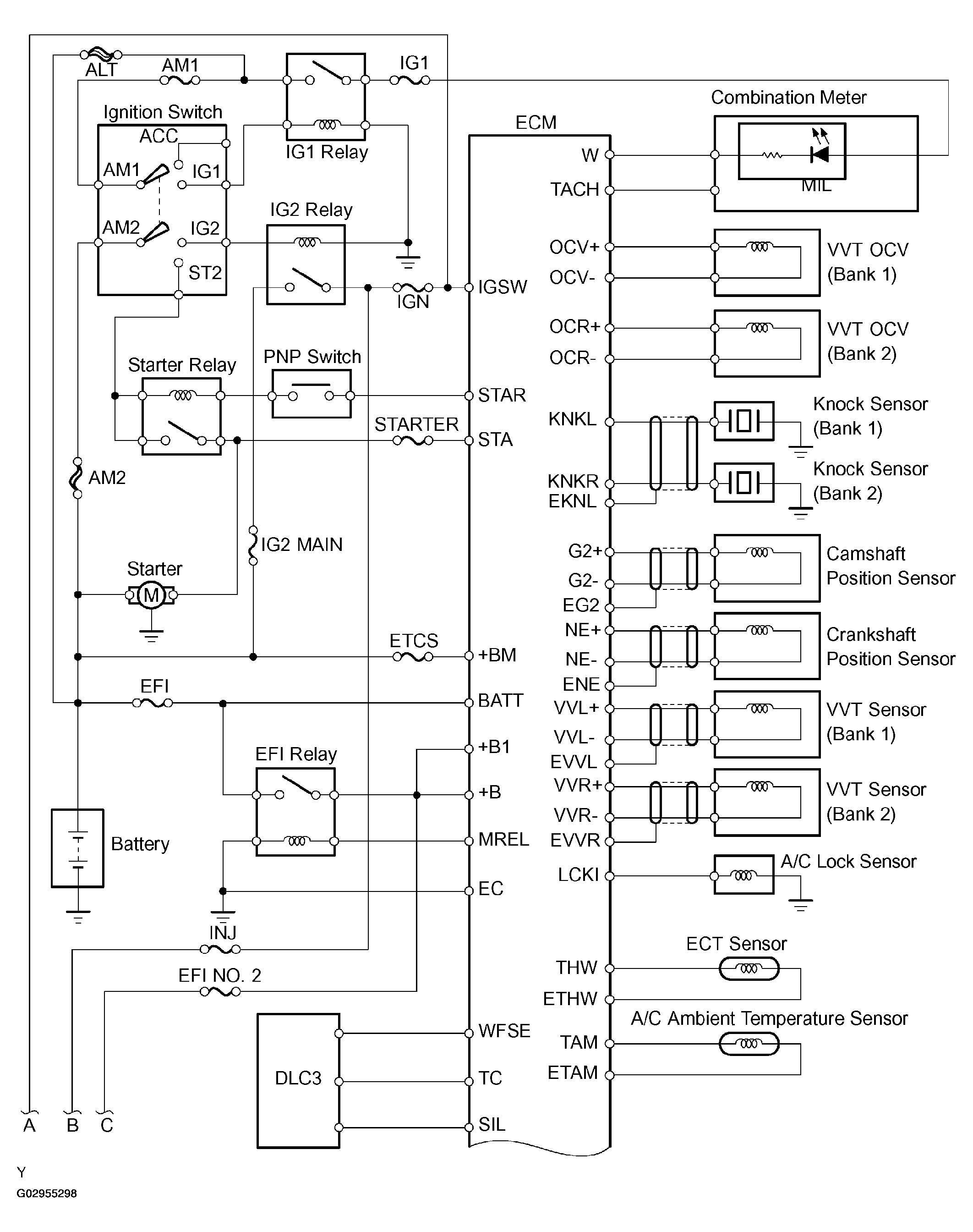

Fig 2: SFI System Diagram Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

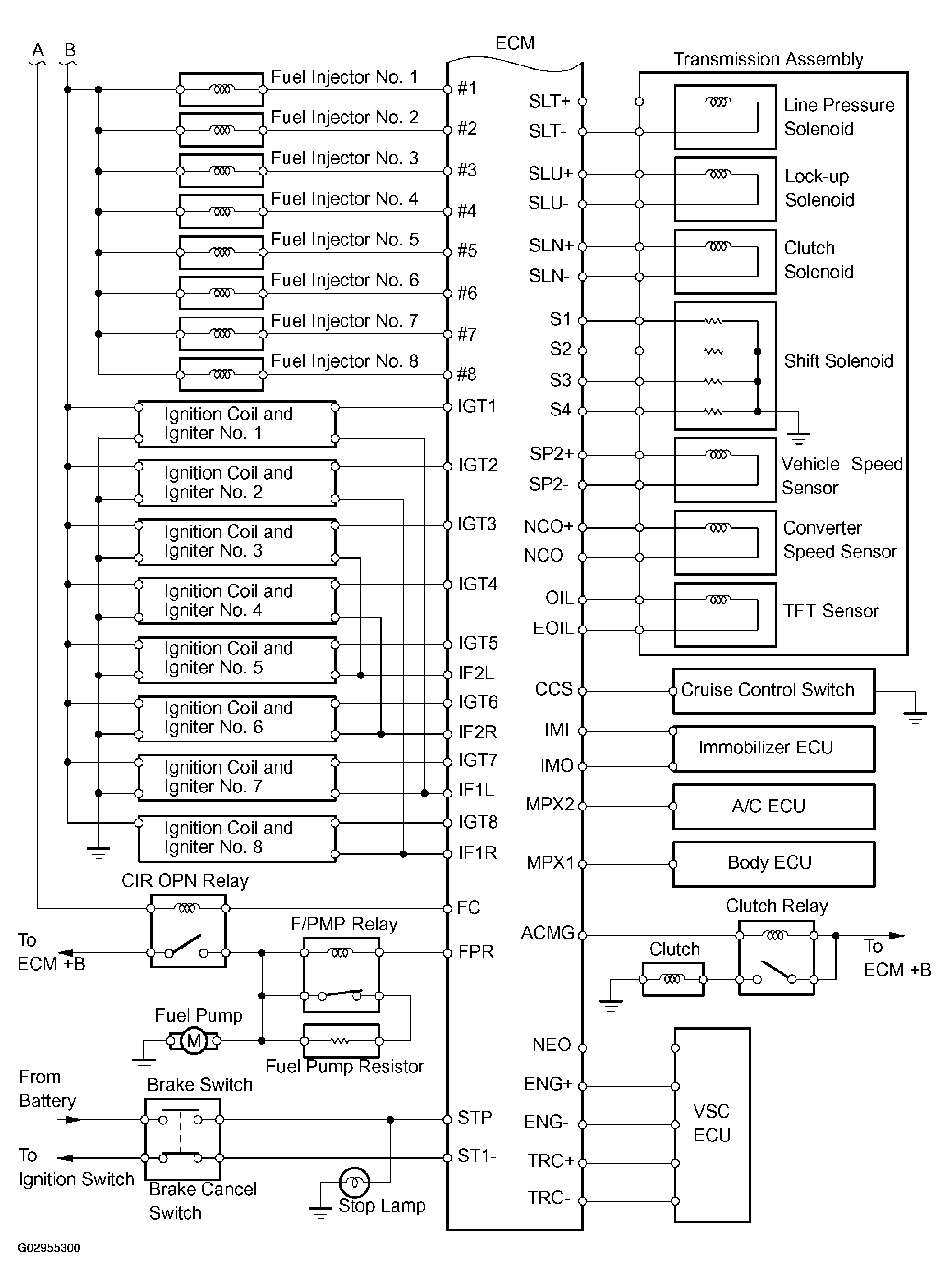

Fig 3: SFI System Diagram Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
