DTC U0073 Control Module Communication Bus OFF; DTC U0105 Lost Communication with ECM; DTC U0121 Lost Communication with Anti-lock Brake System (ABS) Control Module; DTC U0122 Lost Communication with Vehicle Dynamics Control Module; DTC U0130 Lost Communication with VGRS: Wiring Diagram

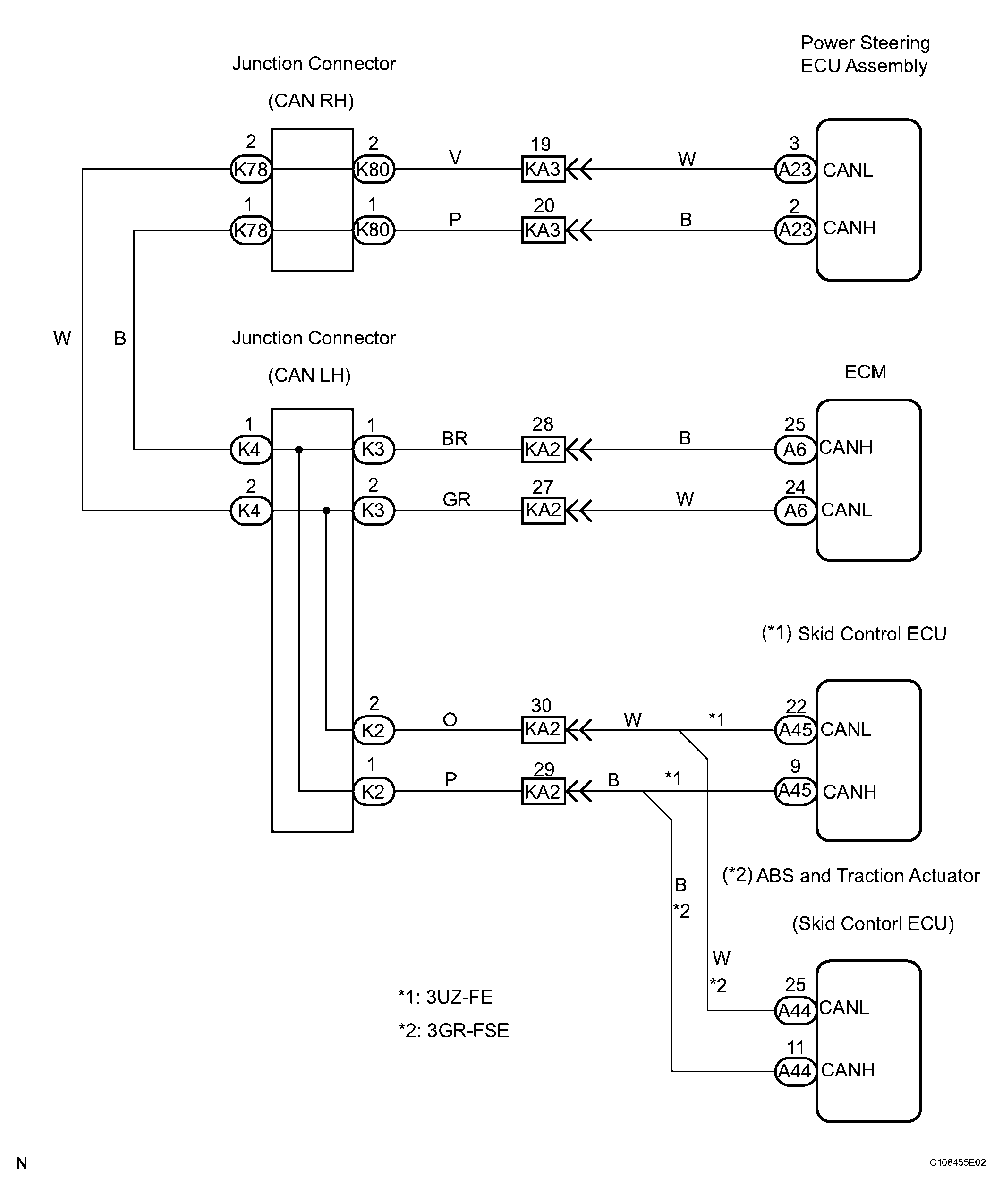

Fig 1: Wiring Diagram - Control Module Communication

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. CHECK DTC
   1. Using the intelligent tester, check for DTCs.

   NEXT: GO TO CAN COMMUNICATION SYSTEM TROUBLESHOOTING
