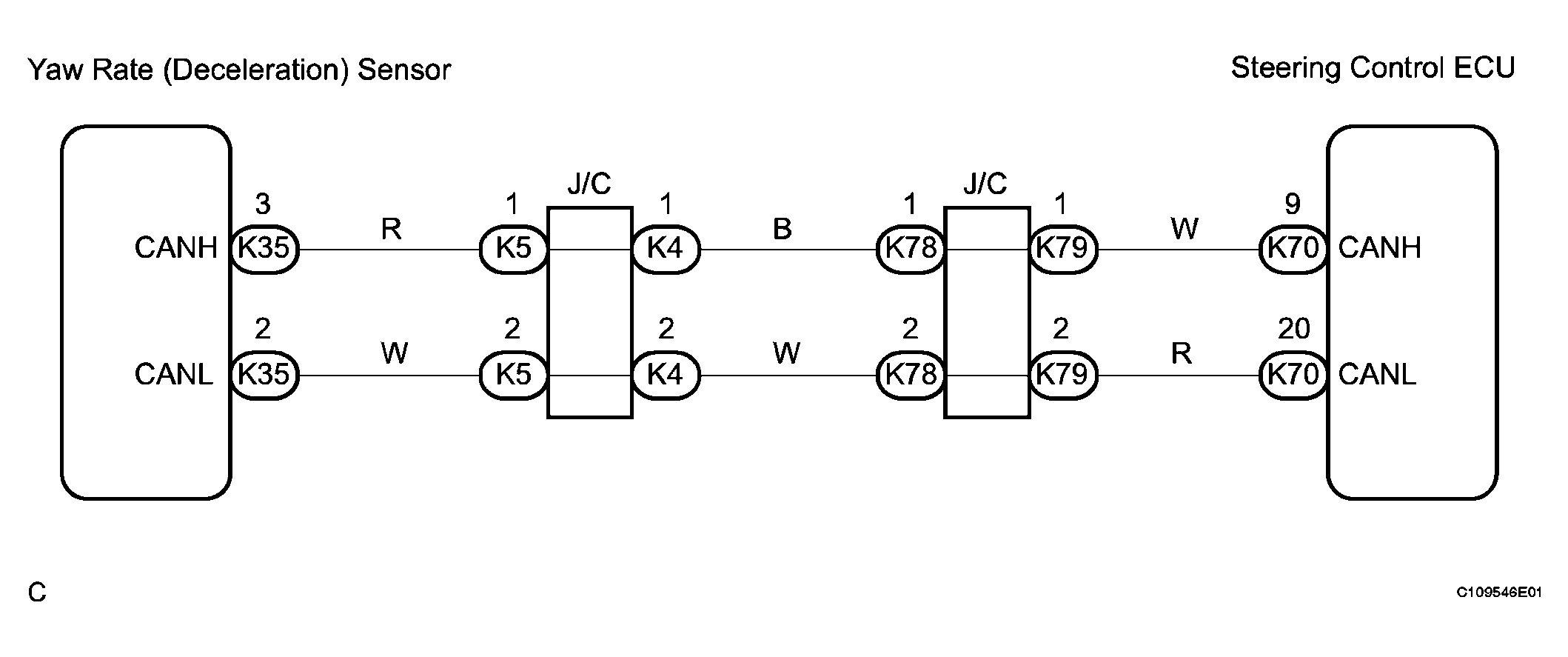

DTC U0123/56 Lost Communication with Yaw Rate (Deceleration) Sensor Module: Wiring Diagram

1. Check for DTCs in the CAN communication system (See GATEWAY ECU COMMUNICATION STOP MODE ).

   Result

   RESULT SPECIFICATION



   Result	Proceed to
   DTC is not output.	A
   DTC is output.	B

B : REPAIR CIRCUIT INDICATED BY DTC OUTPUT

A : REPLACE YAW RATE (DECELERATION) SENSOR
