Sunroof / Moonroof
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Sunroof / Moonroof

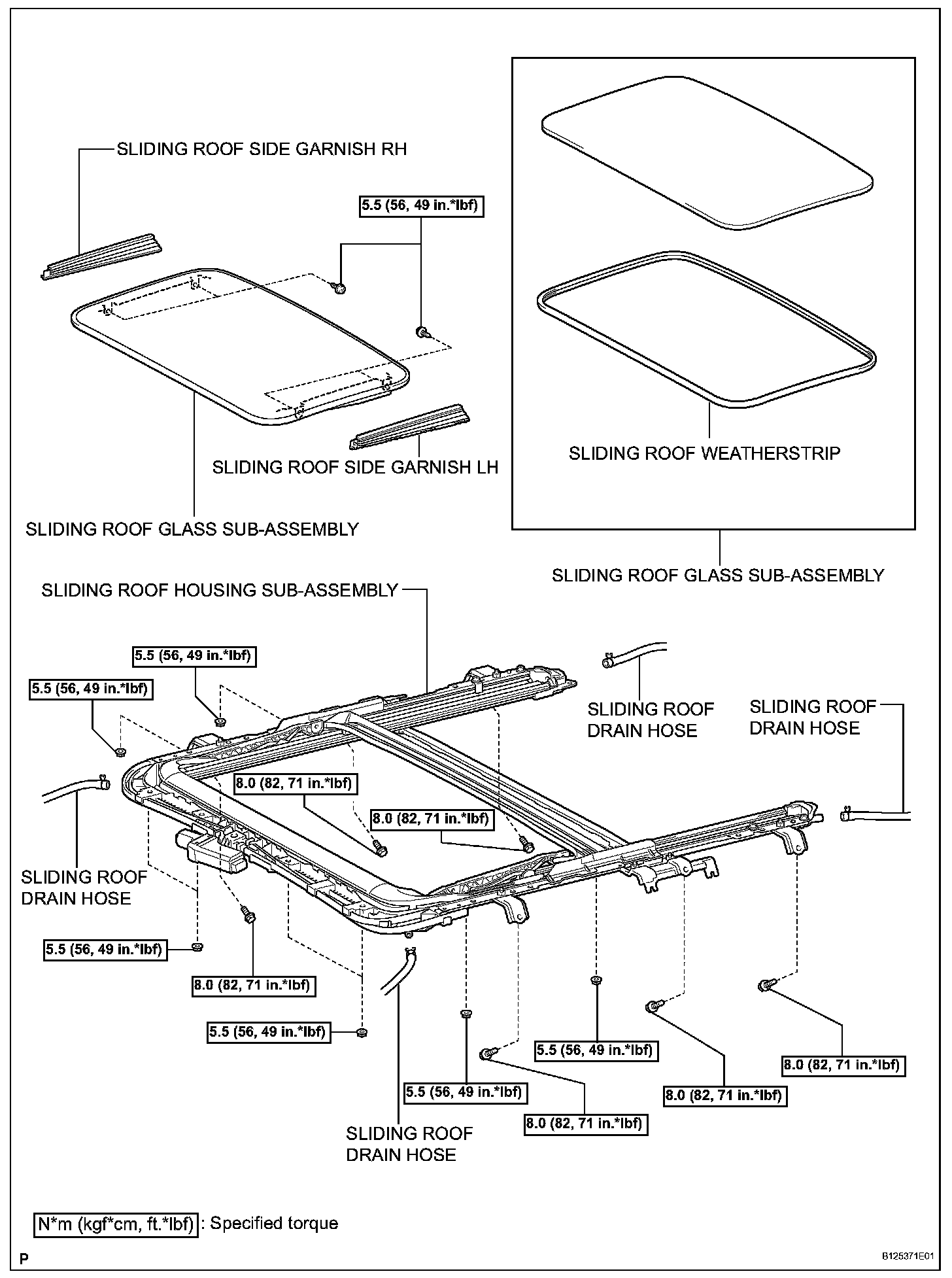

Sliding Roof Housing:

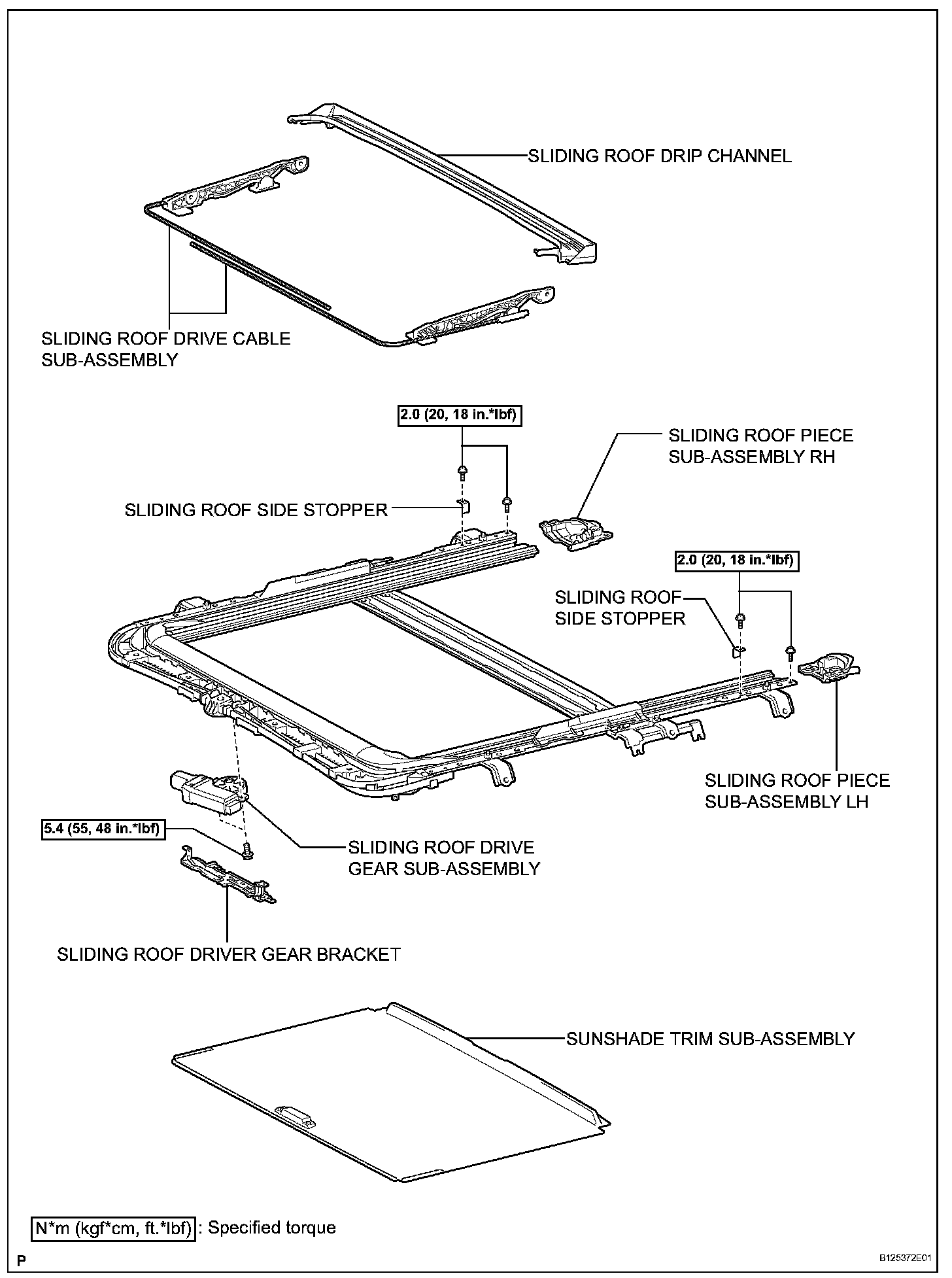

Sliding Roof Housing:

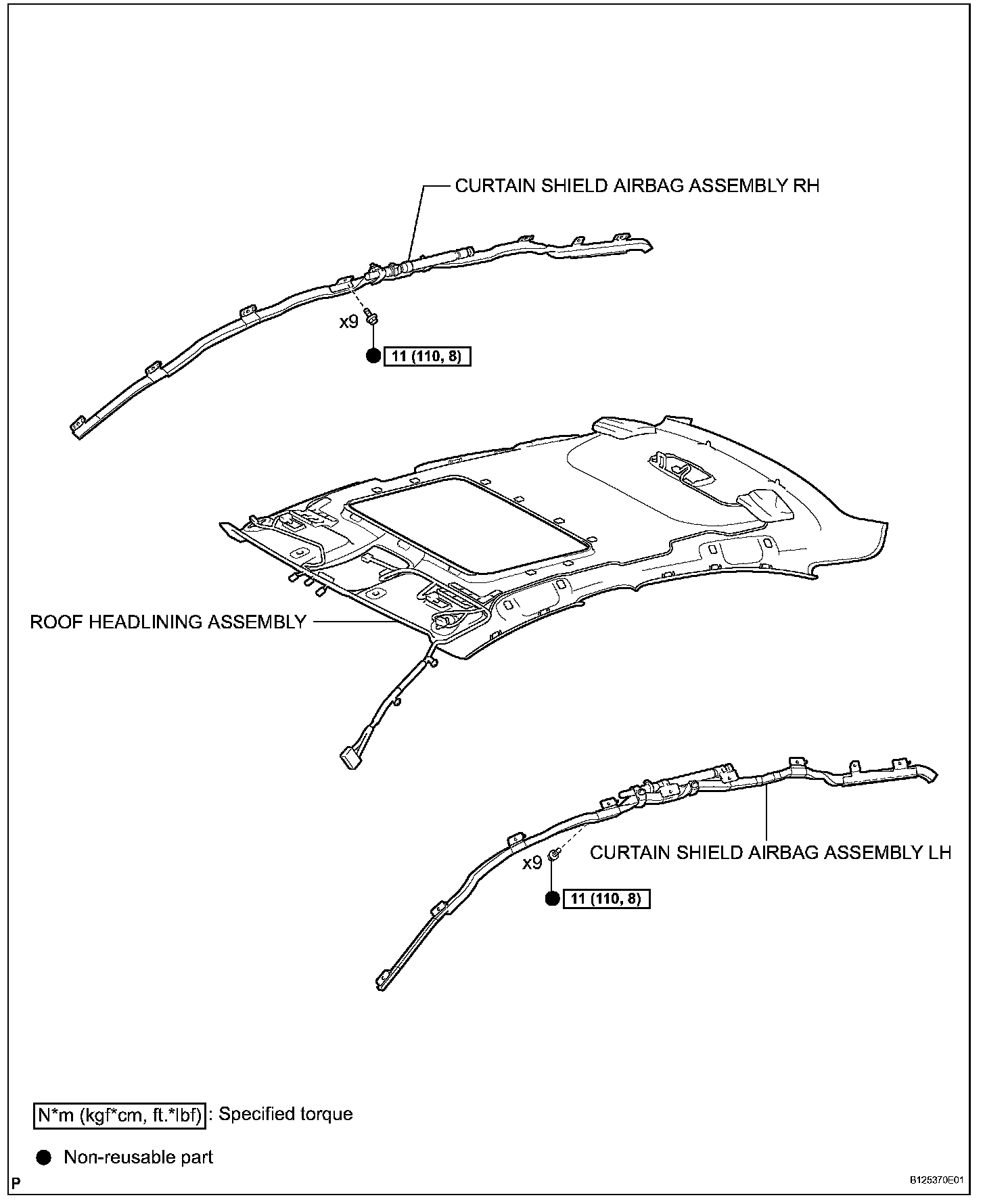

Sliding Roof Housing:
