On-Vehicle Inspection

NOTE:

Do not remove the brake pedal load sensing switch from the brake pedal sub-assembly.
When there is a malfunction in the brake pedal load sensing switch, replace the brake pedal subassembly.

Disconnect the brake pedal load sensing switch connector.

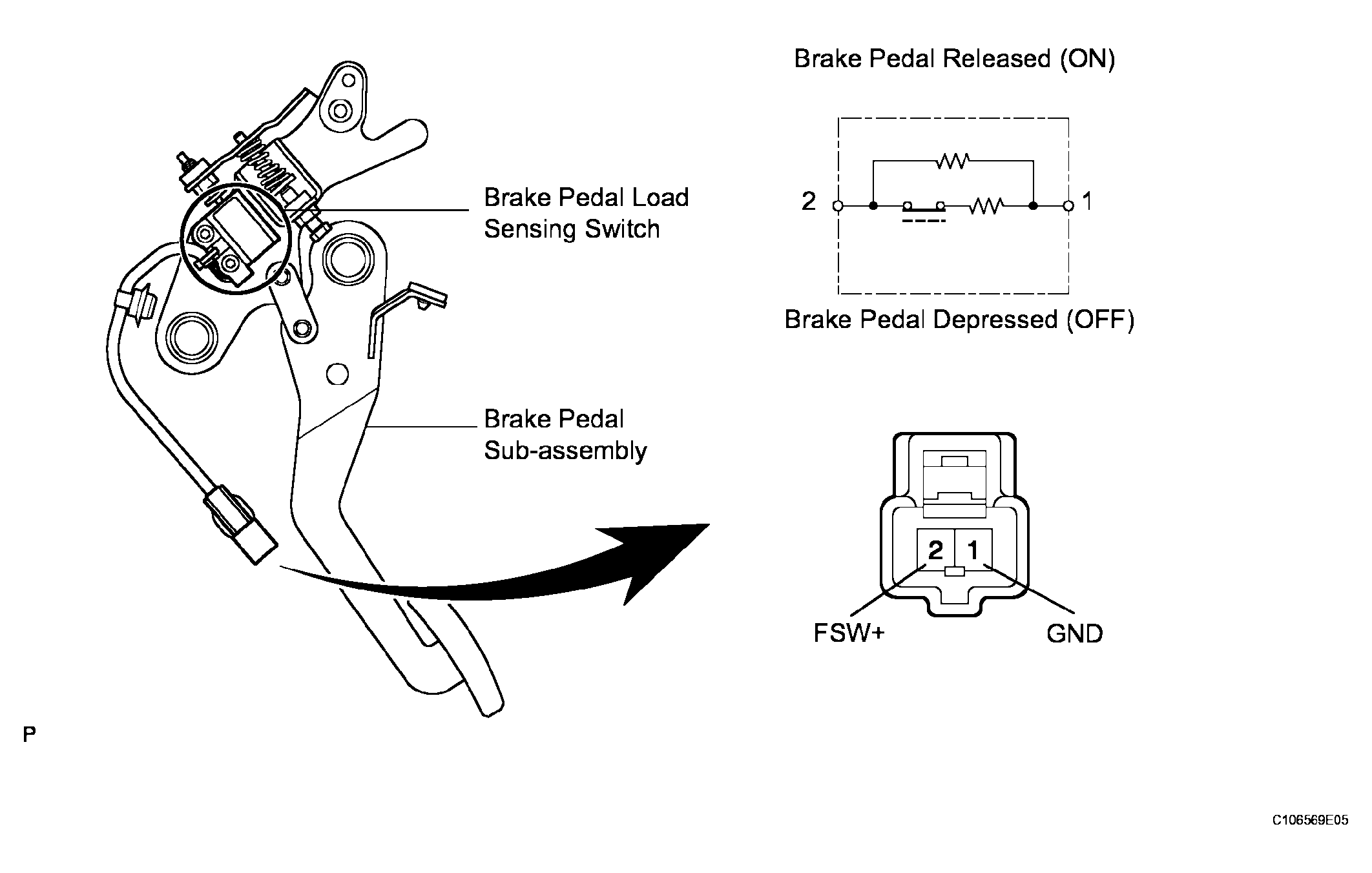

Fig 1: Inspecting Brake Pedal Load Sensing Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
1 - 2	Brake pedal depressed	0.9 to 1.1 kΩ
1 - 2	Brake pedal released	192 to 234Ω

If the value is not as specified, replace the brake pedal load sensing switch.
