Inspection Procedure

1. Check if the CAN communication DTC is output (See DTC CHECK / CLEAR  ).

Result

B: Go to step   2

A: GO TO  CAN COMMUNICATION

1. Disconnect the ECM connector.
2. Measure the resistance according to the value(s) in RESISTANCE SPECIFIED CONDITION TABLE  .

Standard resistance

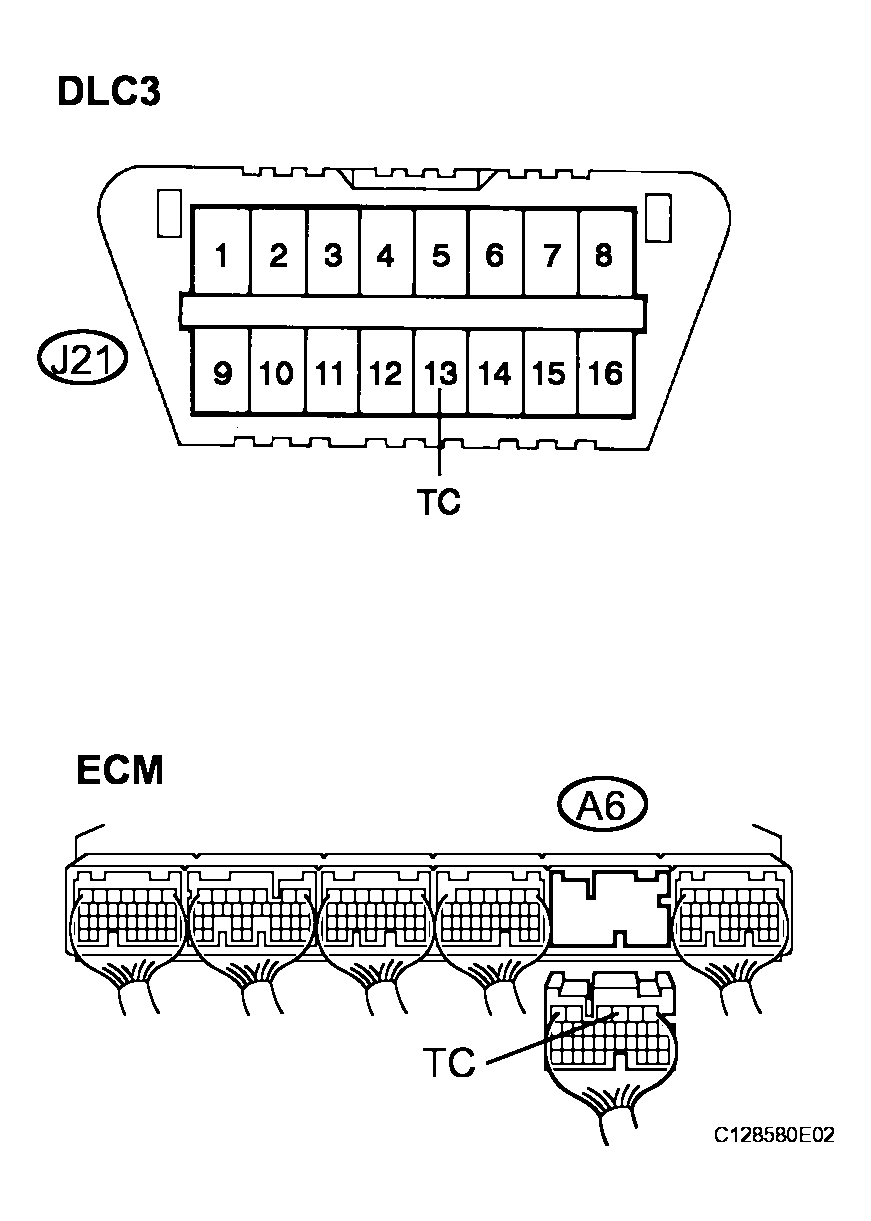

Fig 1: Identifying ECM & DLC3 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (TC TERMINAL CIRCUIT)

OK: Go To Next Step

1. Measure the resistance according to the value(s) in RESISTANCE SPECIFIED CONDITION TABLE  .

Standard resistance

Fig 2: Identifying Terminal CG Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (CG TERMINAL CIRCUIT)

OK: Go To Next Step

1. Measure the resistance according to the value(s) in RESISTANCE SPECIFIED CONDITION TABLE  .

Standard resistance

Fig 3: Identifying Terminal TC Of DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: CHECK HARNESS AND CONNECTOR OR CHECK EACH ECU

OK: REPLACE 4WD CONTROL ECU
