DTC C0200/31 Front Speed Sensor RH Circuit; DTC C0205/32 Front Speed Sensor LH Circuit; DTC C1271/71 Low Output Signal of Front Speed Sensor RH (Test Mode DTC); DTC C1272/72 Low Output Signal of Front Speed Sensor LH (Test Mode DTC): Description

The speed sensor detects wheel speed and sends the appropriate signals to the skid control ECU. These signals are used for the ABS control system. This speed sensor contains a sensor IC, which consists of 2 MREs (Magnetic Resistance Element). The speed sensor rotor, which consists of 48 sets of N and S poles that are arranged in a circle, is integrated with the inner race of the hub bearing. To detect the rotation direction, the output waves are used to determine the relationship of the pulses that are generated by 2 MREs. Upon receiving this signal, the sensor IC outputs a forward or backward wave to the ECU.

DTCs C1271/71 and C1272/72 can be deleted when the speed sensor sends a vehicle speed signal or the Test Mode ends. DTCs C1271/71 and C1272/72 are output only in the Test Mode.

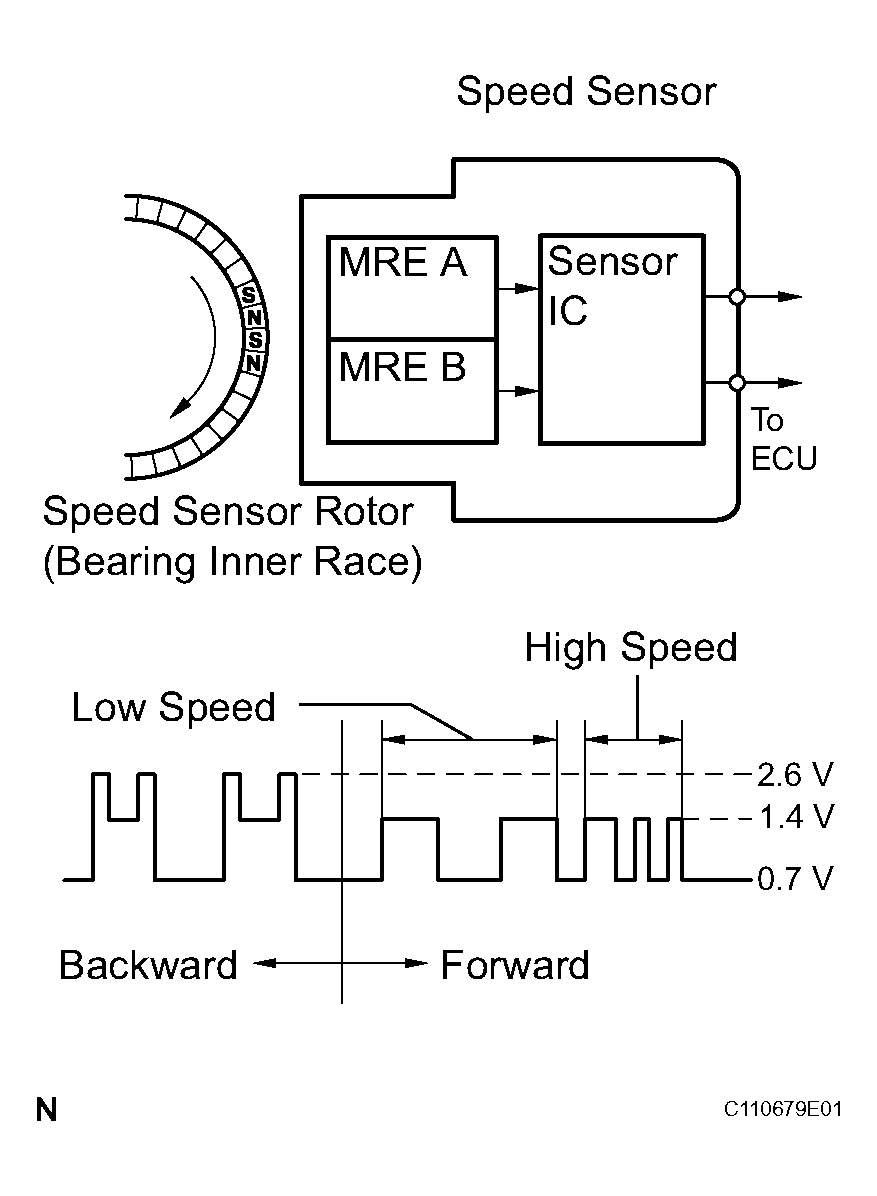

Fig 1: Identifying Speed Sensor Rotor
G04052067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DIAGNOSIS TROUBLE CODE CHART

DTC No. DTC Detection Condition Trouble Area
C0200/31
C0205/32
When any of the following is detected:
  • At a vehicle speed of 6 mph (10 km/h) or more, an open or short in the sensor signal circuit continues for 1 second or more.
  • Momentary interruption of the sensor signal from the abnormal wheel occurs 255 times or more.
  • An open in the speed sensor signal circuit continues for 0.5 seconds or more.
  • When the vehicle is driven in reverse at the speed of 1.8 mph (3 km/h) or more and 3 of the wheel sensors detect the reverse signal, the other sensor detects a high frequency pulse 75 times while the engine switch is on (IG).
  • At a vehicle speed of 6 mph (10 km/h) or more, the vehicle speed sensor output drops by 50 % for 5 seconds.
  • At a vehicle speed of 6 mph (10 km/h) or more, the direction of wheel rotation changes 7 times in 0.006 seconds while the engine switch is on (IG).
  • At a vehicle speed of 18 mph (30 km/h) or more, one wheel direction is different from the other 3 wheels' for 1 second.
  • At a vehicle speed of 60 mph (100 km/h), a reverse signal is output for 1 second or more.
  • At a vehicle speed of 18 mph (30 km/h) or more, the rotation direction of the one of the wheels is not detected normally and the rotation direction of the other 3 wheels is not the same for 1 second.
  • With the IG1 terminal voltage 9.5 V or more, the sensor power supply voltage decreases for 0.5 seconds or more.
  • Front speed sensor RH/LH
  • Speed sensor circuit
  • Speed sensor rotor
  • Sensor installation
  • Skid control ECU

HINT:
