VVT Sensor: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the VVT sensor connector.
    2. Remove the bolt and VVT sensor.

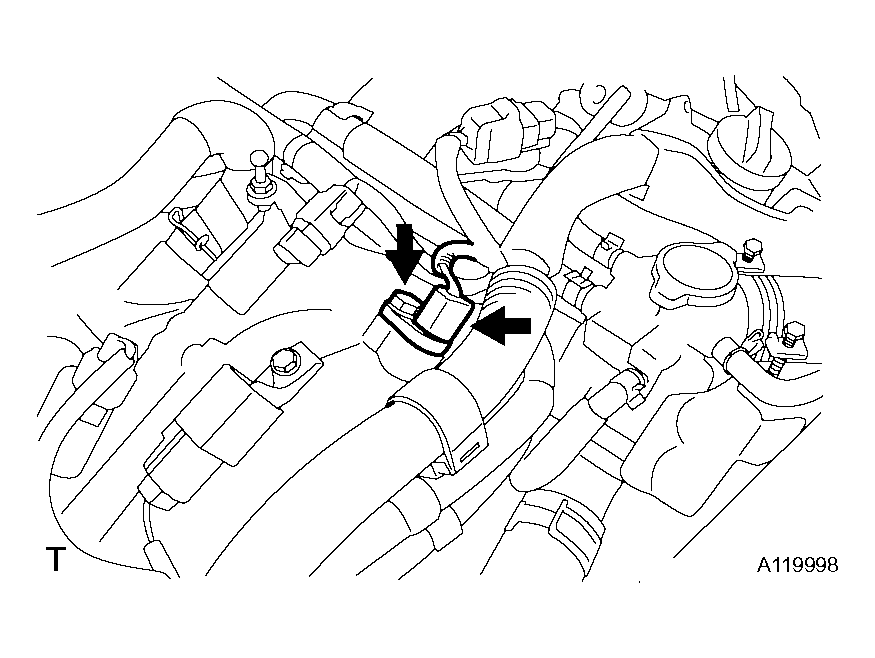

      Fig 1: Identifying VVT Sensor (For Intake Side Of Bank 1)
      G04054933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the VVT sensor connector.
    2. Remove the bolt and VVT sensor.

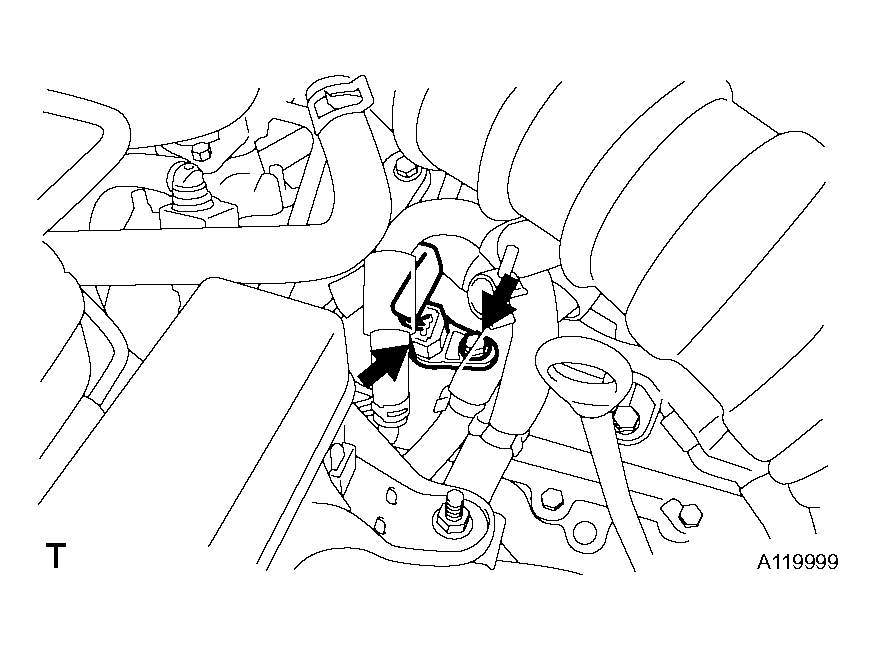

      Fig 2: Identifying VVT Sensor (For Exhaust Side Of Bank 1)
      G04054934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the VVT sensor connector.
    2. Remove the bolt and VVT sensor.

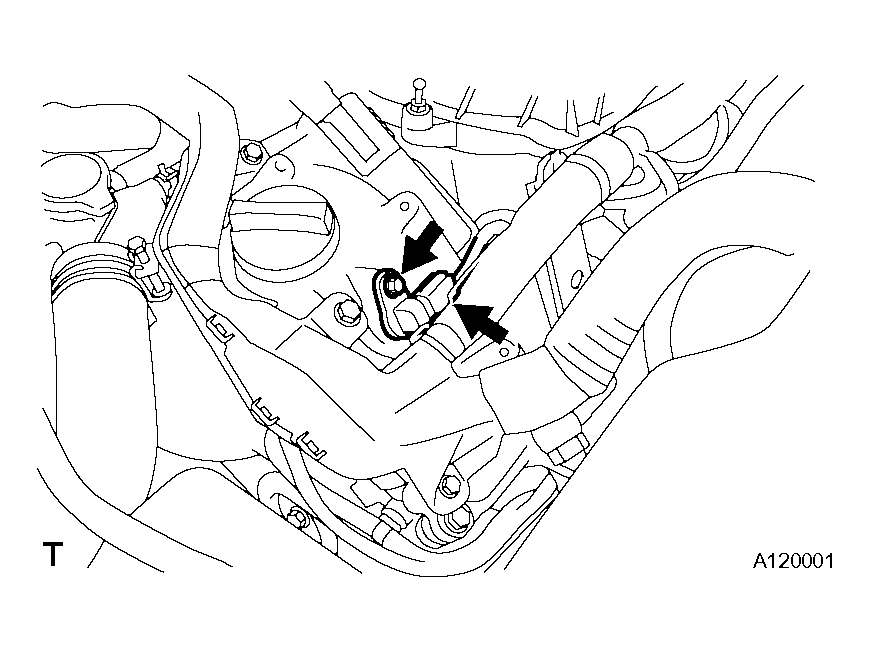

      Fig 3: Identifying VVT Sensor (For Intake Side Of Bank 2)
      G04054935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the VVT sensor connector.
    2. Remove the bolt and VVT sensor.

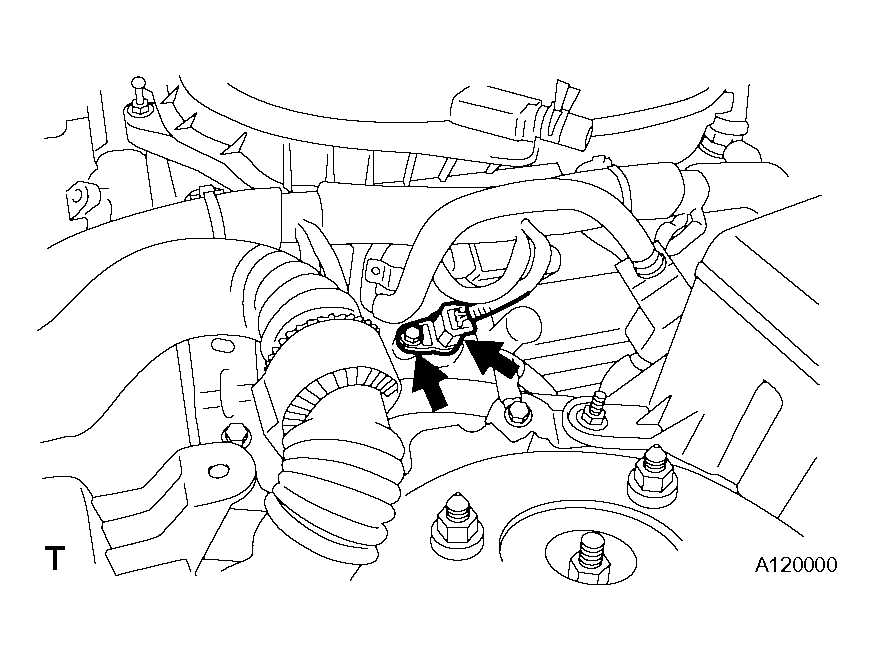

      Fig 4: Identifying VVT Sensor (For Exhaust Side Of Bank 2)
      G04054936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
