ELECTROCHROMATIC Mirror Circuit: Wiring Diagram

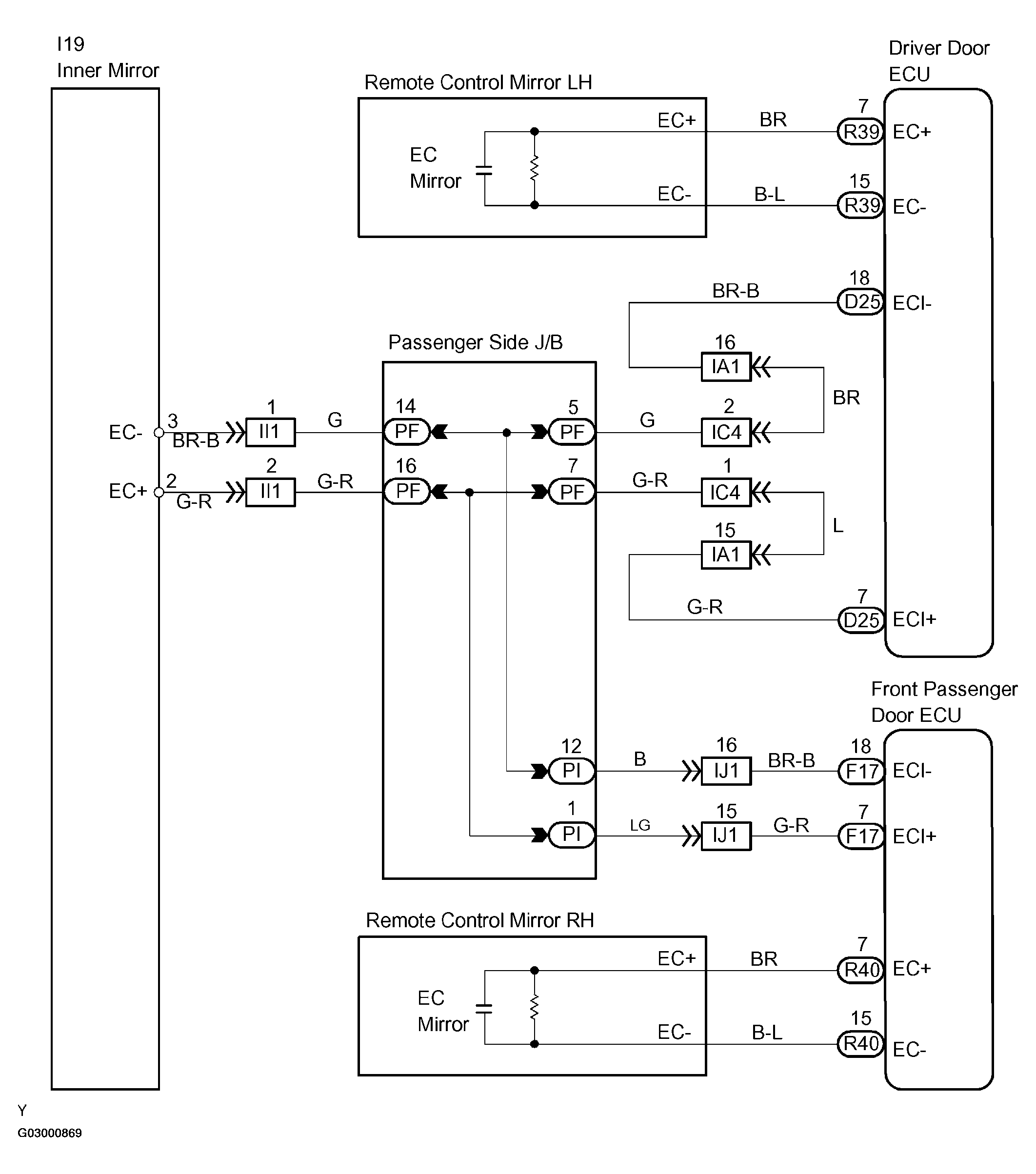

Fig 1: Electrochromatic Mirror Circuit Wiring Diagram
G03000869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
