Power Source Circuit (Driver Door Ecu): Wiring Diagram

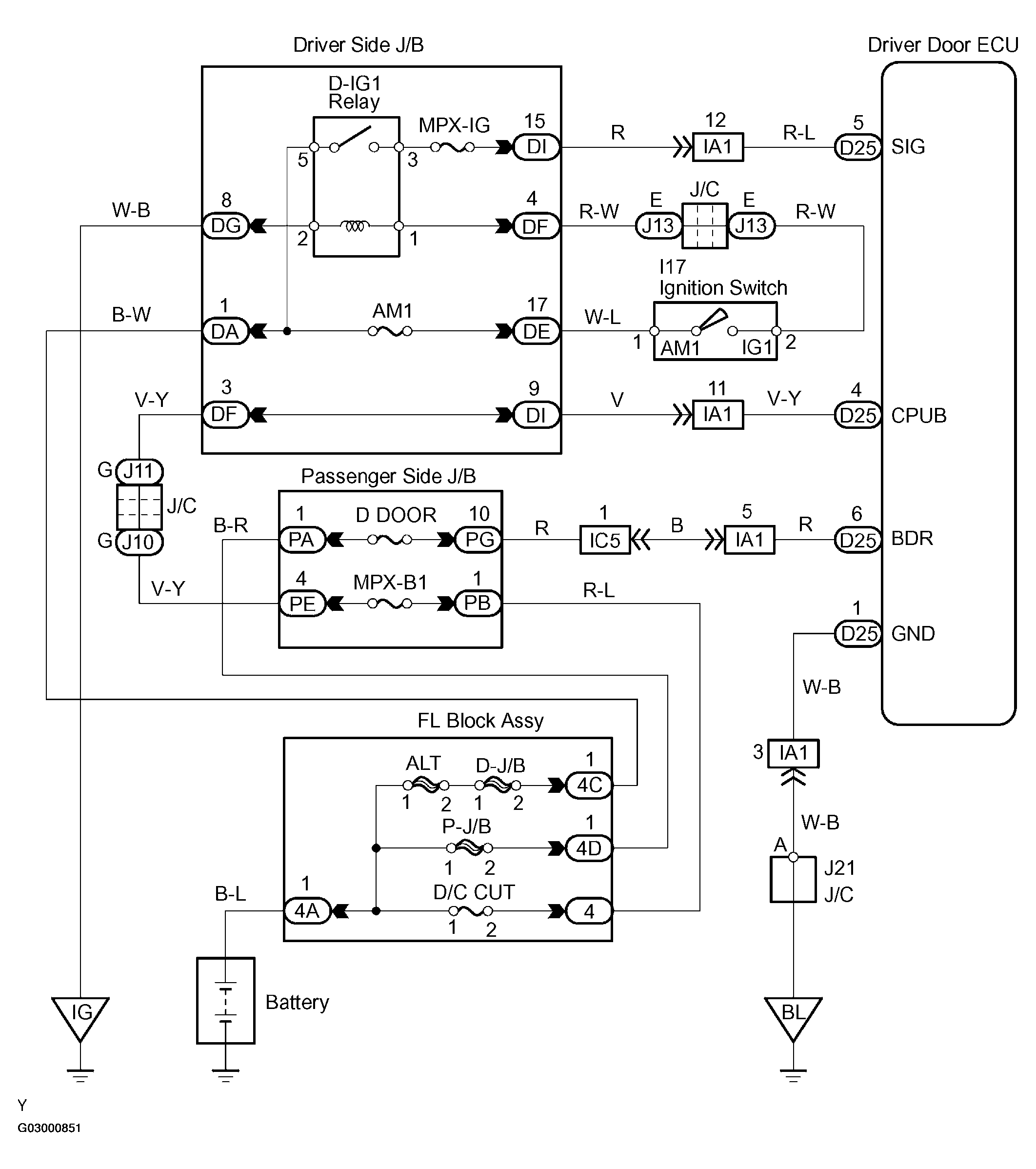

Fig 1: Power Source Circuit Wiring Diagram (Driver Door ECU)
G03000851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
