Rear Window Defogger System does not Operate: Wiring Diagram

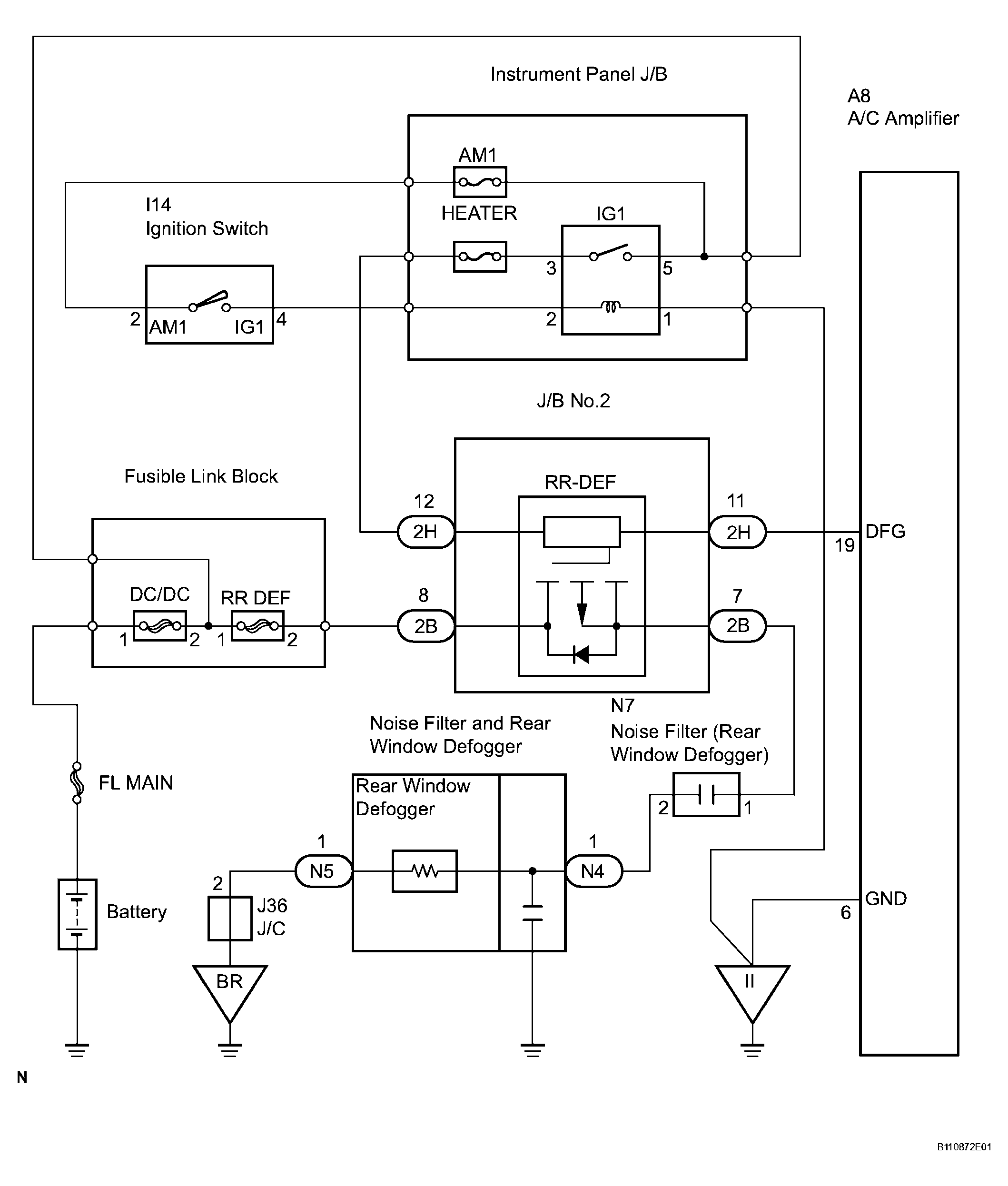

Fig 1: Rear Window Defogger System - Wiring Diagram
G04093243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
