Throttle Body: Inspection

  1. INSPECT THROTTLE BODY ASSEMBLY
    1. Resistance inspection
    1. Using an ohmmeter, measure the resistance between terminals.

    Resistance

    THROTTLE BODY ASSEMBLY

    Symbols (terminal No.) Resistance Temperature
    M+ (2) - M- (1) 0.3 to 100 Ω 20°C (68°F)
    VC (5) - E2 (3) 1.2 to 3.2 kΩ 20°C (68°F)

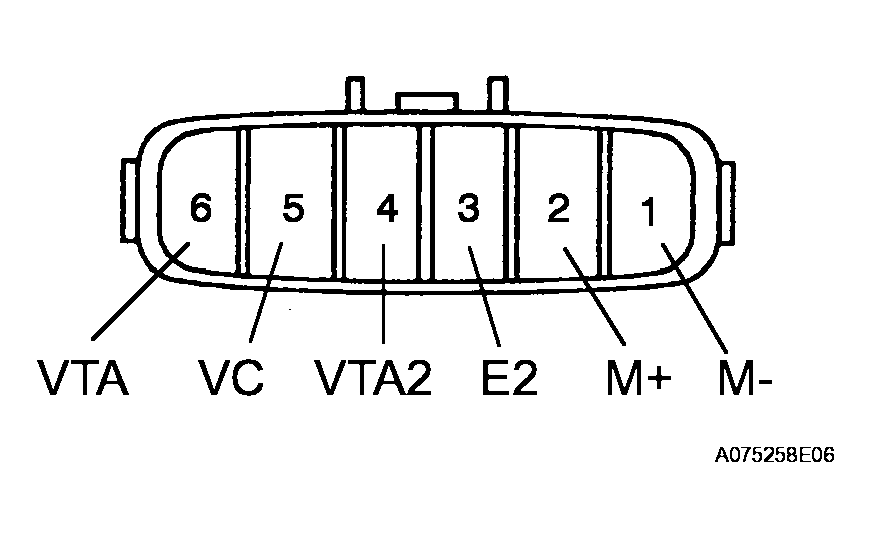

    Fig 1: Inspecting Throttle Body Assembly
    G04087502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
