Conditioning For Sensor Testing

HINT:

Perform the operation with the engine speeds and time durations described below prior to checking the waveforms of the A/F and HO2 sensors. This is in order to activate the sensors sufficiently to obtain the appropriate inspection results.

Fig 1: A/F And HO2 Sensors Waveforms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the intelligent tester to the DLC3 (a).
Start the engine and warm it up with all the accessories switched OFF, until the engine coolant temperature stabilizes (b).
Run the engine at engine speed of between 2,500 rpm and 3,000 rpm for at least 3 minutes (c).
While running the engine at 3,000 rpm for 2 seconds and 2,000 rpm for 2 seconds, check the waveforms of the A/F and HO2 sensors using the tester or scan tool (d).

NOTE: The Air-Fuel Ratio (A/F) sensor has an output delay of a few seconds and the Heated Oxygen (HO2) sensor has a maximum output delay of approximately 20 seconds.

A/F SENSOR (SENSOR 1) OUTPUT VOLTAGE

Case	A/F Sensor (Sensor 1) Output Voltage		HO2 Sensor (Sensor 2) Output Voltage		Main Suspected Trouble Area

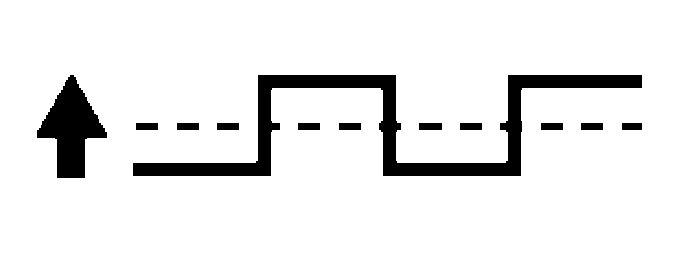

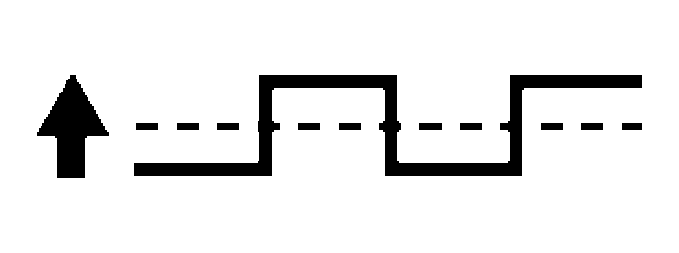

1	Injection Volume +25 % -12.5 %	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Injection Volume +25 % -12.5 %	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	-

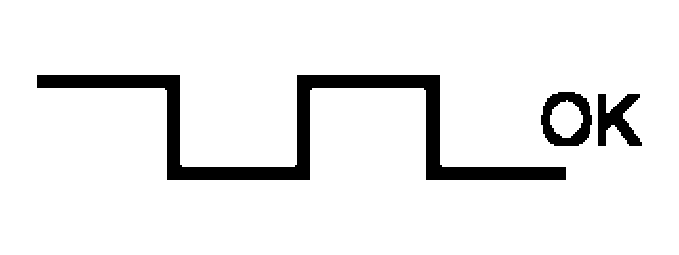

1	Output Voltage More than 3.35 V Less than 3.0 V	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Output Voltage More than 0.55 V Less than 0.4 V	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	-

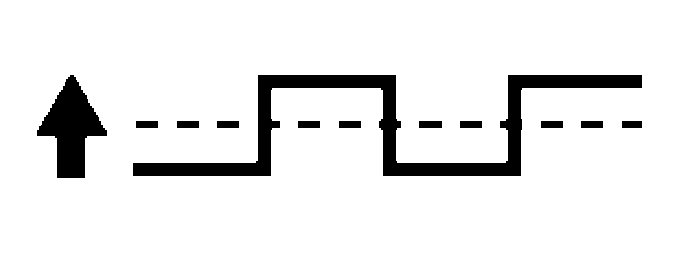

2	Injection Volume +25 % -12.5 %	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Injection Volume +25 % -12.5 %	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	A/F sensor A/F sensor heater A/F sensor circuit

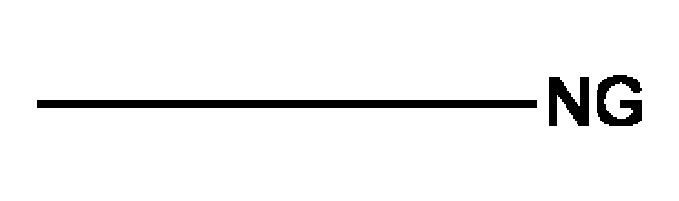

2	Output Voltage Almost no reaction	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Output Voltage More than 0.55 V Less than 0.4 V	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	A/F sensor A/F sensor heater A/F sensor circuit

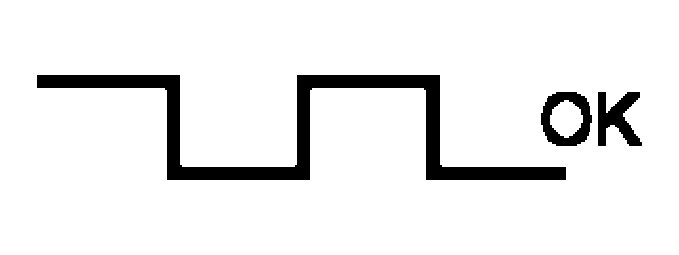

3	Injection Volume +25 % -12.5 %	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Injection Volume +25 % -12.5 %	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	HO2 sensor HO2 sensor heater HO2 sensor circuit

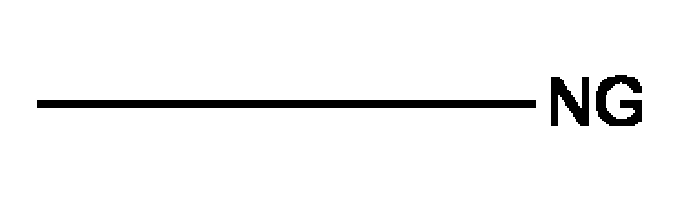

3	Output Voltage More than 3.35 V Less than 3.0 V	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Output Voltage Almost no reaction	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	HO2 sensor HO2 sensor heater HO2 sensor circuit

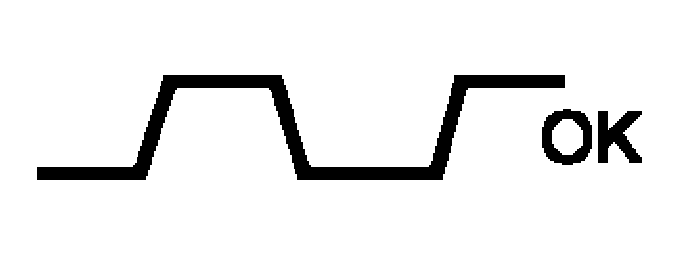

4	Injection volume +25 % -12.5 %	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Injection Volume +25 % -12.5 %	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Injector Fuel pressure Gas leakage from exhaust system (Air-fuel ratio extremely lean or rich)
4	Output Voltage Almost no reaction	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Output Voltage Almost no reaction	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Following the A/F CONTROL procedure enables technicians to check and graph the output voltages of both the A/F and HO2 sensors.
To display the graph, enter the following menus on the tester: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL / USER DATA / AFS B1S1 and O2S B1S2 or AFS B2S1 and O2S B2S2, and press the YES button and then the ENTER button followed by the F4 button.
