Terminals Of Ecu

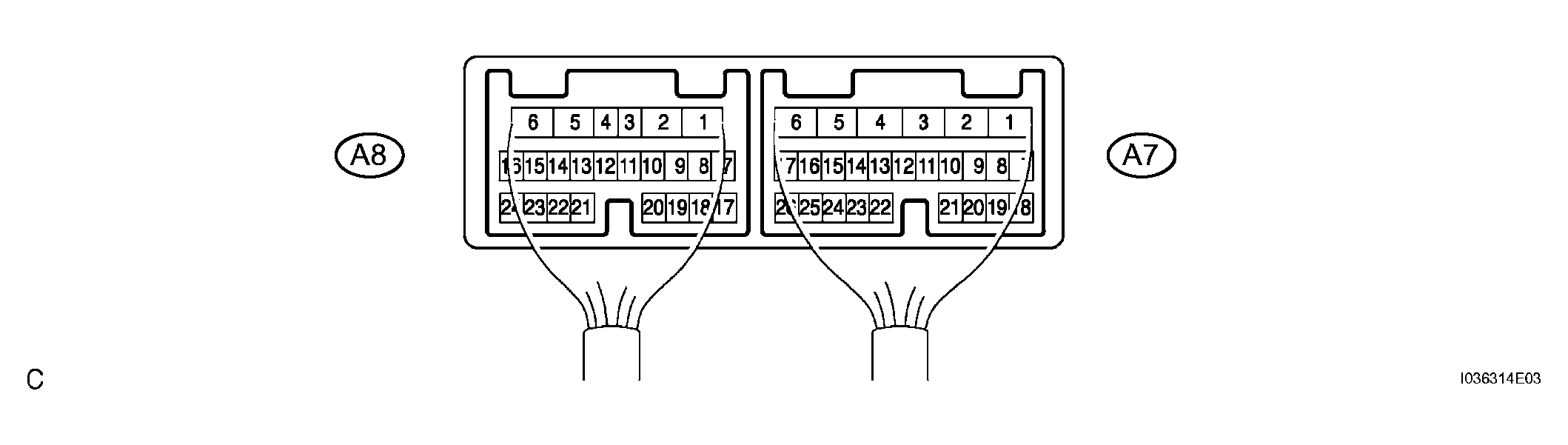

- CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the voltage and resistance of each terminal of the connectors.
TERMINALS DESCRIPTION - SPECIFIED CONDITION.Symbols (Terminal No) Wire Color Terminal Description Condition Specified Condition A8-8 (FDEF) - A8-6 (GND) B - W-B Front Deicer Signal Engine switch on (IG) Front deicer switch ON Below 1 V A8-8 (FDEF) - A8-6 (GND) B - W-B Front Deicer Signal Engine switch on (IG) Front deicer switch OFF 10 to 14 V A8-19 (DFG) - A8-6 (GND) G - W-B Rear Defogger Signal Engine switch on (IG) Rear defogger switch OFF 10 to 14 V A8-19 (DFG) - A8-6 (GND) G - W-B Rear Defogger Signal Engine switch on (IG) Rear defogger switch ON Below 1 V E1 (E7-7) - Body ground BR - Body ground Ground Always Below 1 Ω E02 (E6-1) - Body ground W - B - Body ground Ground Always Below 1 Ω E01 (E6-2) - Body ground W - B - Body ground Ground Always Below 1 Ω EC (A6-2) - Body ground W-B - Body ground Ground Always Below 1 Ω
