DTC C0200/31 Front Speed Sensor RH Circuit; DTC C0205/32 Front Speed Sensor LH Circuit; DTC C1271/71 Low Output Signal of Front Speed Sensor RH (Test Mode DTC); DTC C1272/72 Low Output Signal of Front Speed Sensor LH (Test Mode DTC): Wiring Diagram

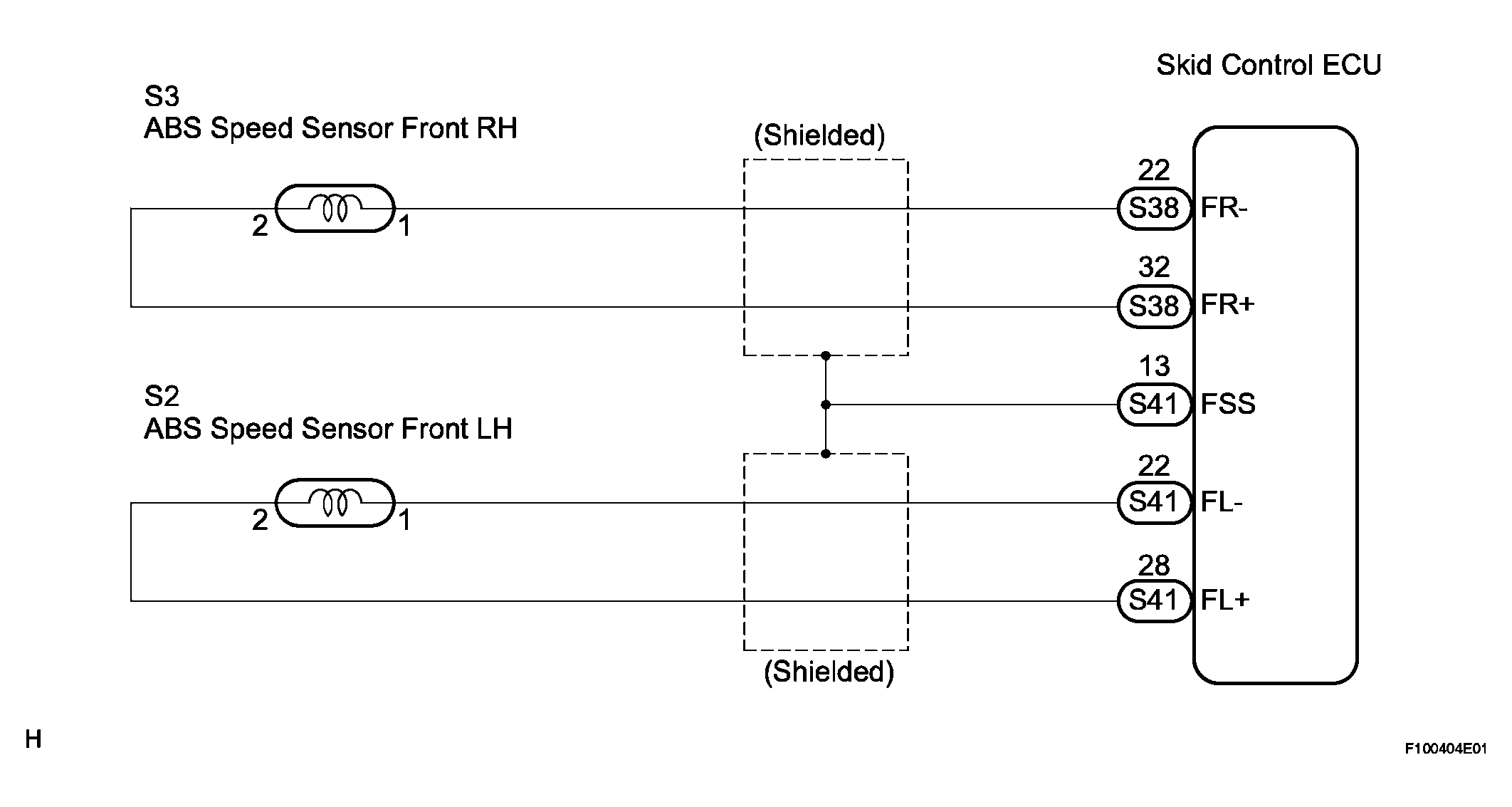

Fig 1: Front Speed Sensor RH Circuit - Wiring Diagram
G04113190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: When replacing the skid control ECU, perform INITIALIZATION  of liner solenoid valve and calibration .
  1. CHECK HARNESS AND CONNECTOR (MOMENTARY INTERRUPTION)
    1. Using the intelligent tester, check for any momentary interruption in the wire harness and connector corresponding to a DTC (See HOW TO PROCEED WITH TROUBLESHOOTING  ).

      ABS / VSC / TRAC:

      ABS / VSC / TRAC ITEM

      Item Measurement Item / Range (Display) Normal Condition
      FR SPD OPN FR speed sensor open detection / NORMAL or ERROR NORMAL : Normal condition
      FL SPD OPN FR speed sensor open detection / NORMAL or ERROR NORMAL : Normal condition

      OK: There are no momentary interruptions.

      HINT:

      Perform the above inspection before removing the sensor and connector.

    NG : Go to step   10

    OK : GO TO NEXT STEP

  2. READ VALUE OF INTELLIGENT TESTER (FRONT SPEED SENSOR)
    1. Connect the intelligent tester to the DLC3.
    2. Turn the ignition switch ON position.
    3. Select the DATA LIST mode on the intelligent tester.

      ABS / VSC / TRAC:

      ABS / VSC / TRAC ITEM

      Item Measurement Item / Range (Display) Normal Condition
      FR WHEEL SPN Wheel speed sensor (FR) reading / min.: 0 km/h (0 MPH), max.: 326 km/h (202 MPH) Actual wheel speed
      FL WHEEL SPN Wheel speed sensor (FL) reading / min.: 0 km/h (0 MPH), max.: 326 km/h (202 MPH) Actual wheel speed
    4. Check that there is no difference between the speed value output from the speed sensor displayed on the intelligent tester and the speed value displayed on the speedometer when driving the vehicle.

      OK: There is almost no difference from the displayed speed value.

      HINT:

      There is tolerance of +-10 % in the speedometer indication.

    OK : Go to step   8

    NG : GO TO NEXT STEP

  3. INSPECT FRONT SPEED SENSOR INSTALLATION
    1. Check the sensor installation.

      OK: There is no clearance between the sensor and rear axle carrier.

      The installation bolt is tightened properly.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE: Check the speed sensor signal after the replacement (See TEST MODE PROCEDURE  ).

    NG : CHECK AND REPLACE FRONT SPEED SENSOR

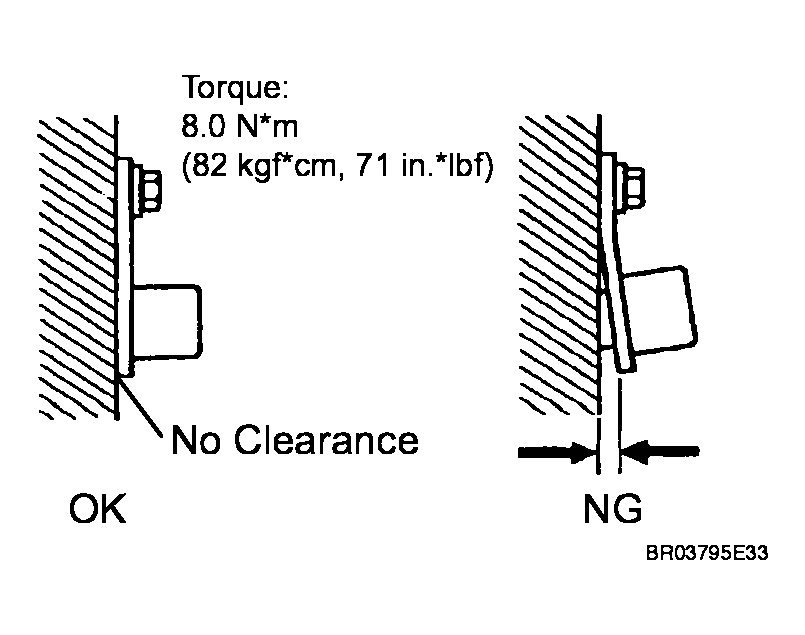

    Fig 2: Checking Front Speed Sensor Installation
    G04113191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  4. INSPECT FRONT SPEED SENSOR
    1. Make sure that there is no looseness at the connector's locking part and connecting part of the connector.
    2. Disconnect the speed sensor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Resistance:

      LH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      2 (FL+) - 1 (FL-) 1.4 to 1.8 kΩ

      RH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      2 (FR+) - 1 (FR-) 1.4 to 1.8 kΩ
    4. Measure the resistance according to the value(s) in the table below.

      Resistance:

      LH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      1 (FL-) - Body ground 10 kΩor higher
      2 (FL+) - Body ground 10 kΩor higher

      RH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      1 (FR-) - Body ground 10 kΩor higher
      2 (FR+) - Body ground 10 kΩor higher

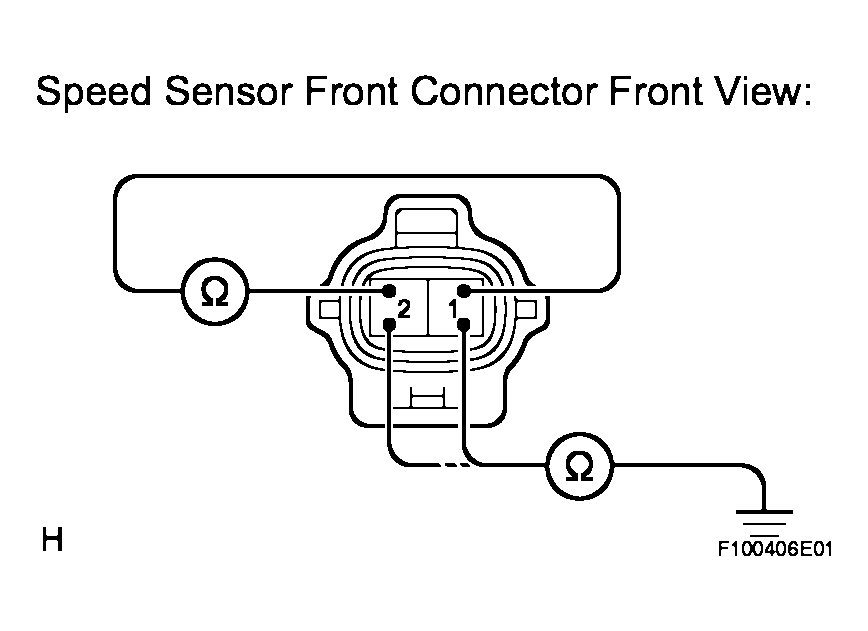

      Fig 3: Identifying Speed Sensor Connector
      G04113192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Check the speed sensor signal after replacement (See TEST MODE PROCEDURE  ).

    NG : REPLACE FRONT SPEED SENSOR

    OK : GO TO NEXT STEP

  5. CHECK HARNESS AND CONNECTOR (BETWEEN FRONT SPEED SENSOR AND SKID CONTROL ECU)
    1. Disconnect the skid control ECU connectors and the front speed sensor connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Resistance:

      LH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      S2-1 (FL-) - S41-22 (FL-) Below 1 Ω
      S2-2 (FL+) - S41-28 (FL+) Below 1 Ω

      RH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      S3-1 (FR-) - S38-22 (FR-) Below 1 Ω
      S3-2 (FR+) - S38-32 (FR+) Below 1 Ω
    3. Measure the resistance according to the value(s) in the table below.

      Resistance:

      LH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      S2-2 (FL+) - Body ground 10 kΩ or higher
      S2-1 (FL-) - Body ground 10 kΩ or higher

      RH

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      S3-2 (FR+) - Body ground 10 kΩ or higher
      S3-1 (FR-) - Body ground 10 kΩ or higher

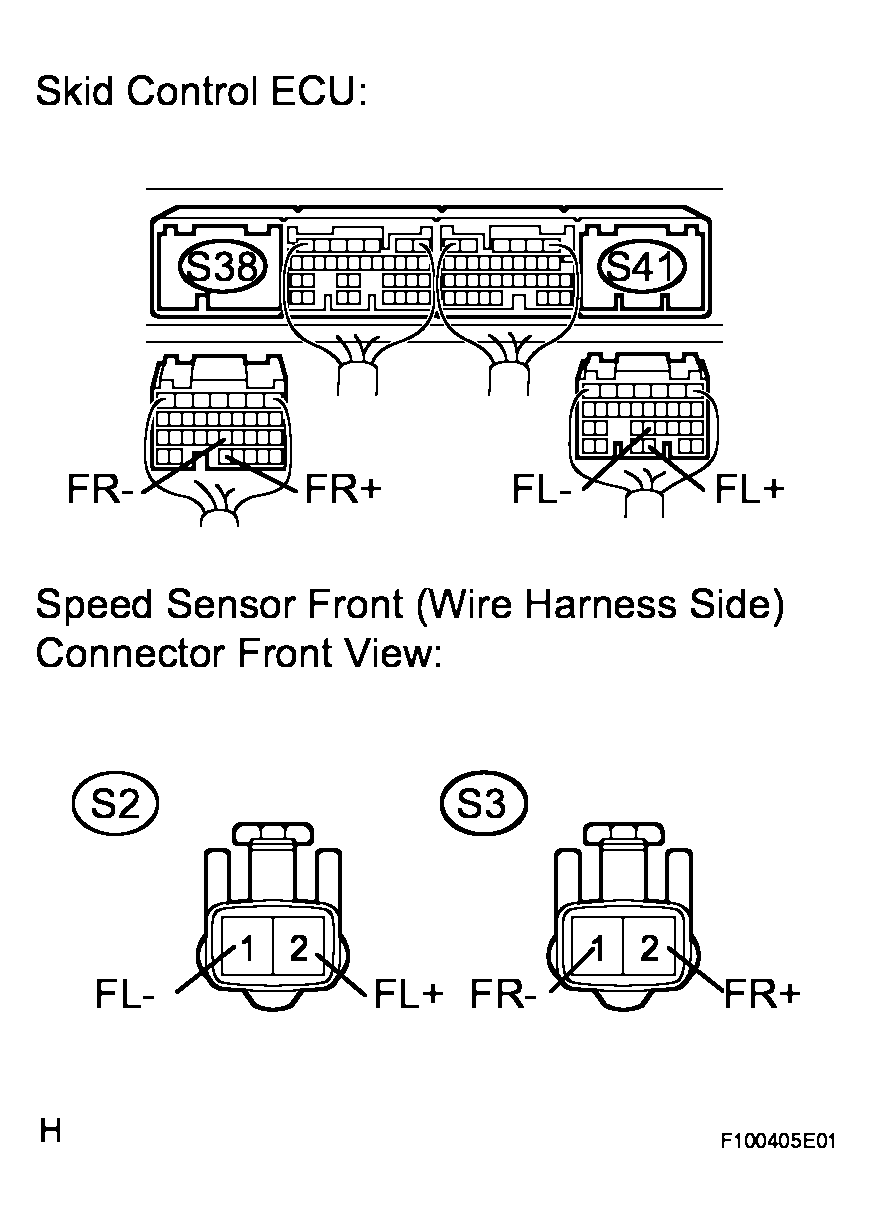

      Fig 4: Disconnecting Skid Control ECU Connectors And Front Speed Sensor Connectors
      G04113193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK : GO TO NEXT STEP

  6. INSPECT SPEED SENSOR AND SENSOR ROTOR SERRATIONS
    1. Connect the skid control ECU connectors.
    2. Connect the oscilloscope to terminals S38-32 (FR+) and S38-22 (FR-) or S41-28 (FL+) and S41-22 (FL-) of the skid control ECU.
    3. Drive the vehicle at approximately 19 mph (30 km/h), and check the signal waveform.

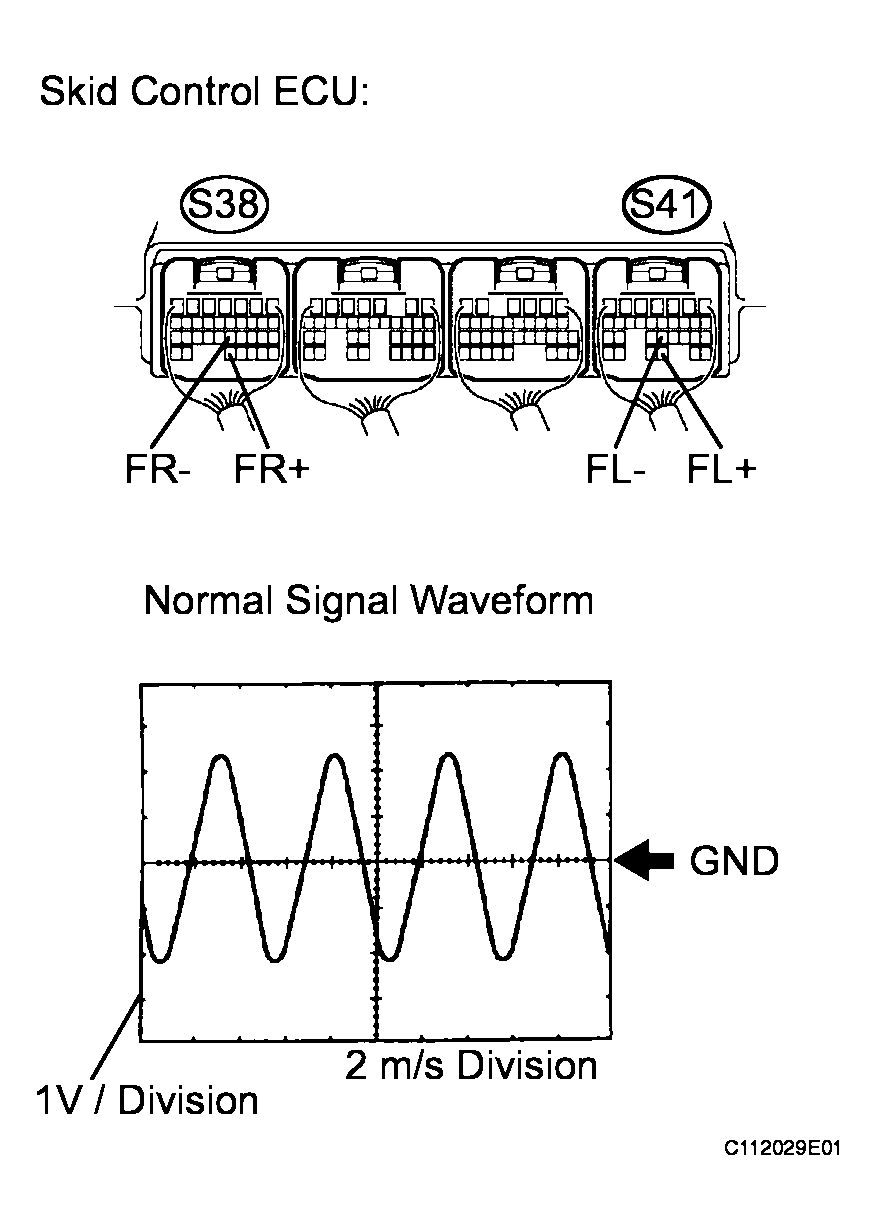

      Fig 5: Inspecting Speed Sensor And Sensor Rotor Serrations
      G04113194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: A waveform as shown in the figure should be output.

      HINT:

      • As the vehicle speed (wheel revolution speed) increases, a cycle of the waveform narrows and the fluctuation in the output voltage becomes greater.
      • When noise is identified in the waveform on the oscilloscope, error signals are generated due to the speed sensor rotor's scratches, looseness or foreign matter attached to it.

    NG : CLEAN OR REPLACE FRONT SPEED SENSOR AND SENSOR ROTOR

    OK : GO TO NEXT STEP

  7. READ VALUE OF INTELLIGENT TESTER
    1. Connect the intelligent tester to the DLC3.
    2. Turn the ignition switch on.
    3. Select the DATA LIST mode on the intelligent tester.

      ABS / VSC / TRAC:

      ABS / VSC / TRAC ITEM

      Item Measurement Item / Range (Display) Normal Condition
      FR WHEEL SPD Wheel speed sensor (FR) reading / min.: 0 km/h (0 MPH), max.: 326 km/h (202 MPH) Actual wheel speed
      FL WHEEL SPD Wheel speed sensor (FL) reading / min.: 0 km/h (0 MPH), max.: 326 km/h (202 MPH) Actual wheel speed
    4. Check that there is no difference between the speed value output from the speed sensor displayed on the intelligent tester and the speed value displayed on the speedometer when driving the vehicle.

      OK: There is almost no difference from the displayed speed value.

      HINT:

      There is tolerance of +- 10 % in the speedometer indication.

    NG : REPLACE SKID CONTROL ECU

    OK : END

  8. PERFORM TEST MODE (SIGNAL CHECK)
    1. Perform sensor signal check in TEST MODE PROCEDURE  .

      OK: All test mode DTCs are erased.

    NG : Go to step   3

    OK : GO TO NEXT STEP

  9. INSPECT SPEED SENSOR AND SENSOR ROTOR SERRATIONS
    1. Connect the oscilloscope to terminals S38-32 (FR+) and S38-22 (FR-) or S41-28 (FL+) and S41-22 (FL-) of the skid control ECU.
    2. Drive the vehicle at approximately 19 mph (30 km/h), and check the signal waveform.

      OK: A waveform as shown in the figure should be output.

      HINT:

      • As the vehicle speed (wheel revolution speed) increases, a cycle of the waveform narrows and the fluctuation in the output voltage becomes greater.
      • When noise is identified in the waveform on the oscilloscope, error signals are generated due to the speed sensor rotor's scratches, looseness or foreign matter attached to it.
        Fig 6: Inspecting Speed Sensor And Sensor Rotor Serrations
        G04113195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : CLEAN OR REPLACE FRONT SPEED SENSOR AND SENSOR ROTOR

    OK : END

  10. REPAIR OR REPLACE HARNESS OR CONNECTOR (BETWEEN FRONT SPEED SENSOR AND SKID CONTROL ECU)
  11. RECONFIRM DTC
    1. Clear the DTC (See DTC CHECK / CLEAR  ).
    2. Turn the ignition switch on.
    3. Drive the vehicle at the speed of 32 km/h (20 mph) or more, for 60 seconds or more, and drive in reverse at a speed of 3 km/h (2 mph) or more, for approximately 5 seconds.
    4. Check that the same DTC is recorded (See DTC CHECK / CLEAR  ).

      HINT:

      Reinstall the sensors, connectors, etc. and restore the previous vehicle conditions before rechecking for DTCs.

      Result

      RESULT REFERENCE

      Condition Proceed to
      DTC is not output A
      DTC is output B

    B : Go to step   2

    A : END
