Central Control Module: Locations

Network Gateway ECU Part 1:



Network Gateway ECU Part 2:



Network Gateway ECU Part 3:



Instrument Panel:

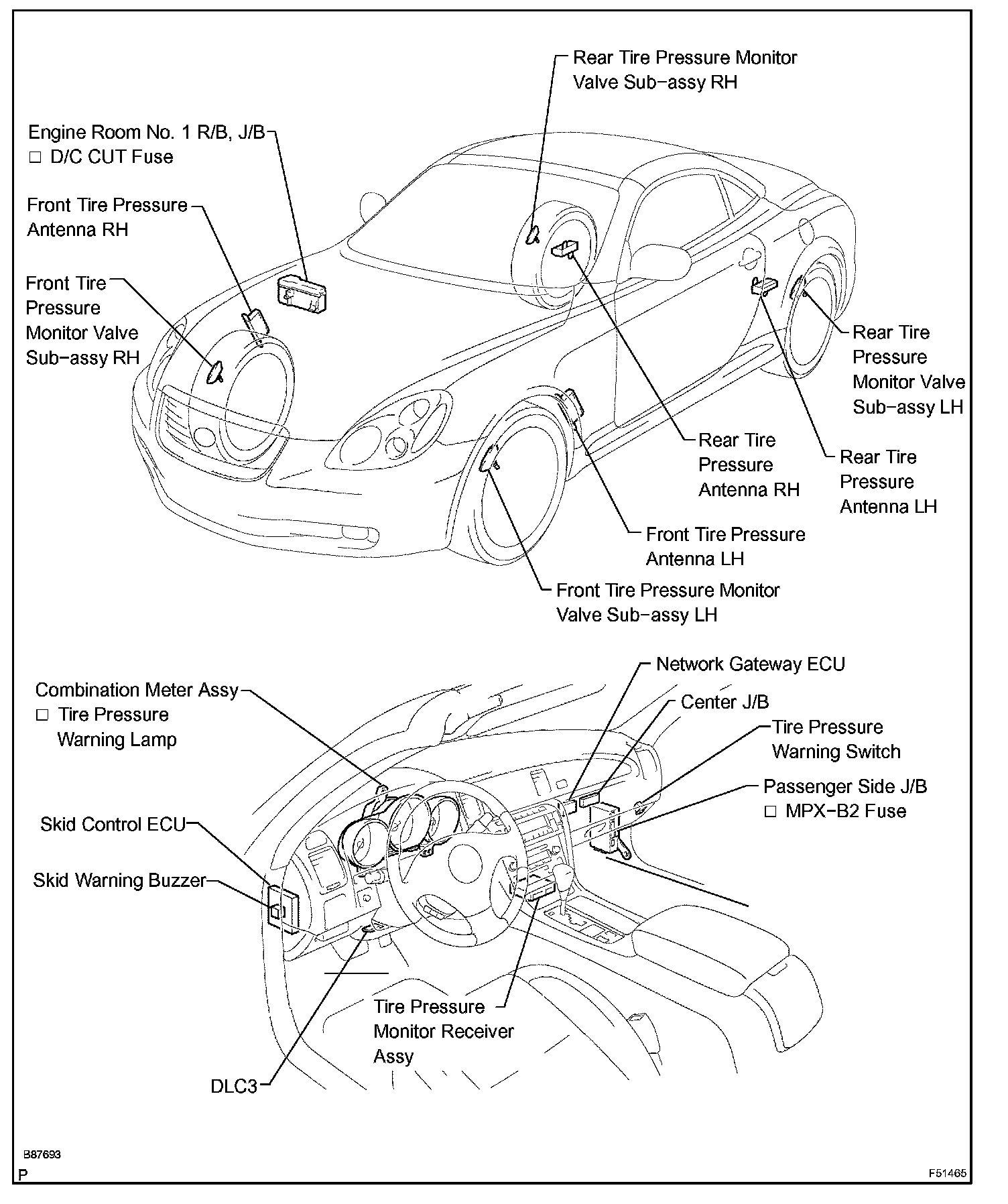

Tire Pressure Warning System:
