Display Signal Circuit (Navigation ECU-Multi-Display)

DISPLAY SIGNAL CIRCUIT (NAVIGATION ECU - MULTI-DISPLAY)

CIRCUIT DESCRIPTION

This is the display signal circuit from the navigation ECU to the multi-display.

Wiring Diagram:

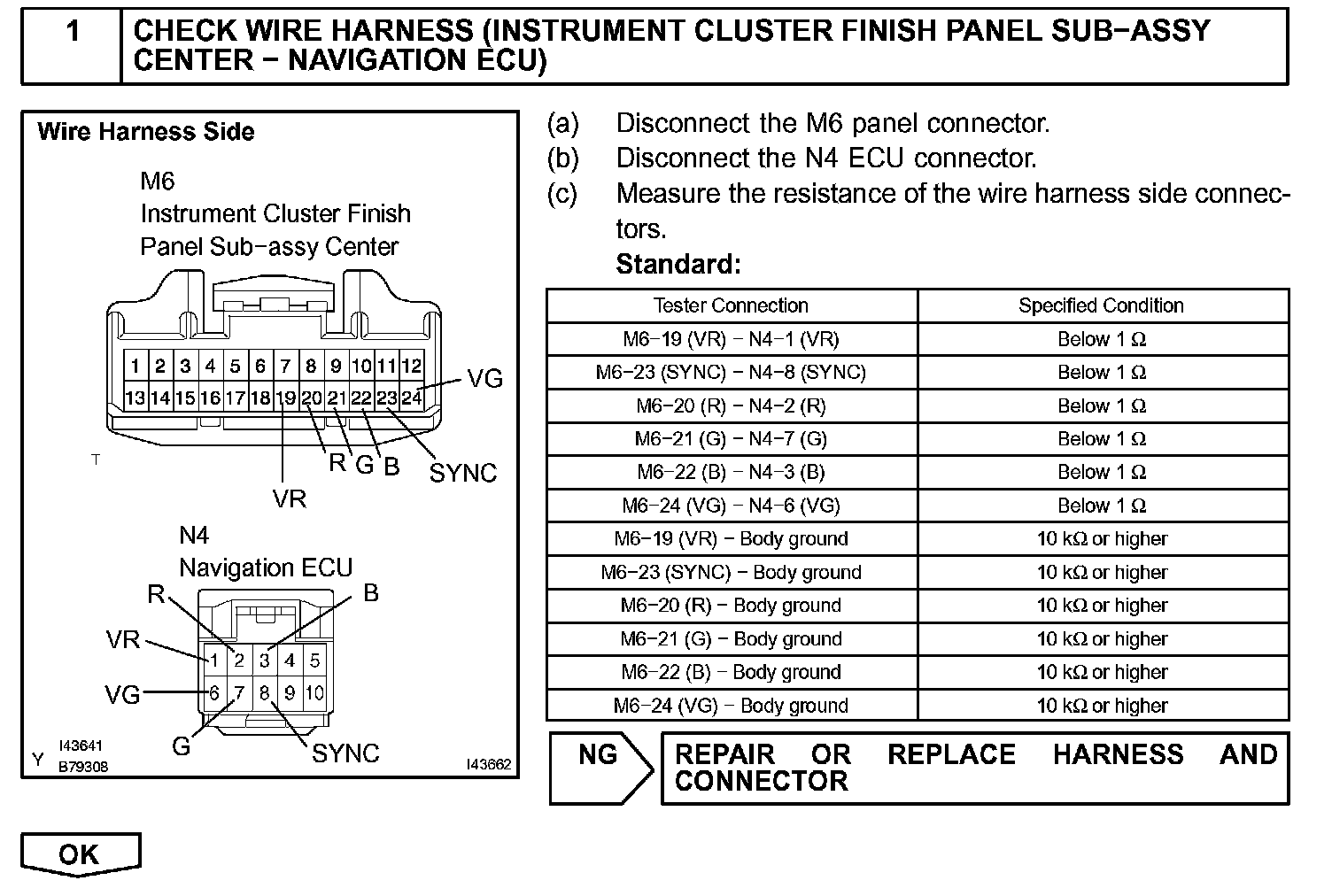

Step 1:

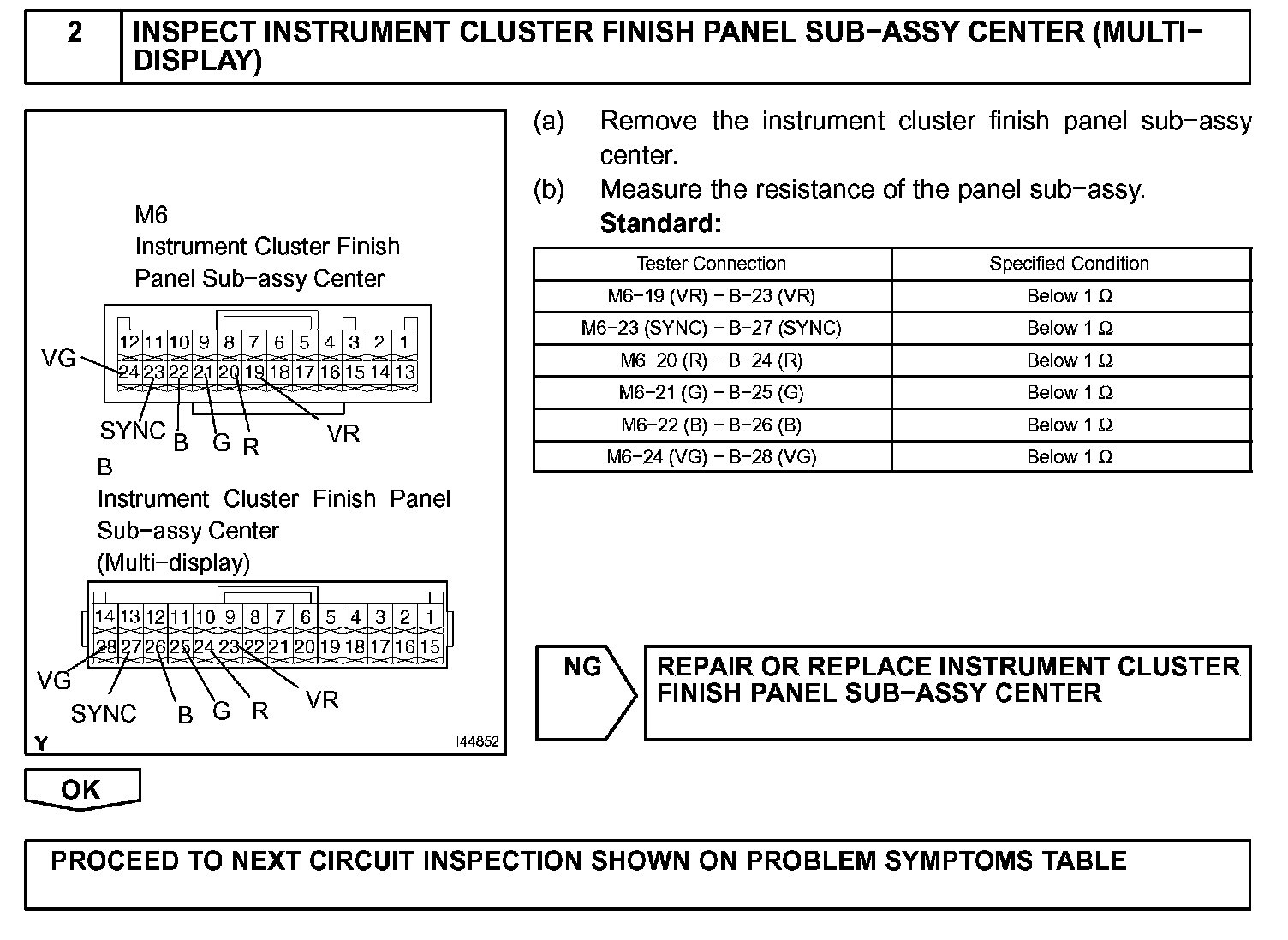

Step 2:

INSPECTION PROCEDURE
