VC Output Circuit
VC OUTPUT CIRCUITDESCRIPTION
Wiring Diagram:
The VC voltage (5 V) is generated in the ECM. The voltage is used to supply power to the throttle position sensor, canister pump module, etc.

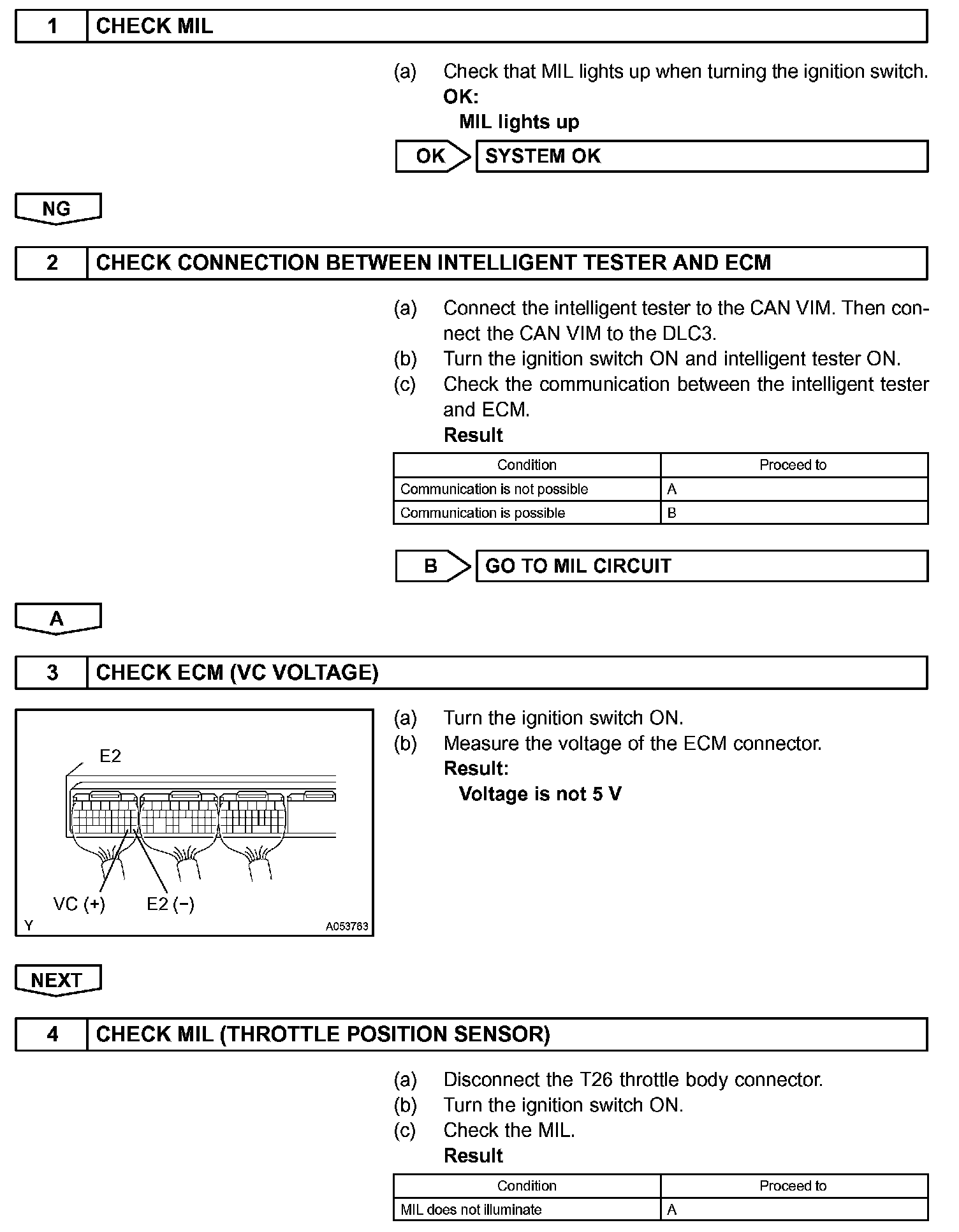

Step 1-4:

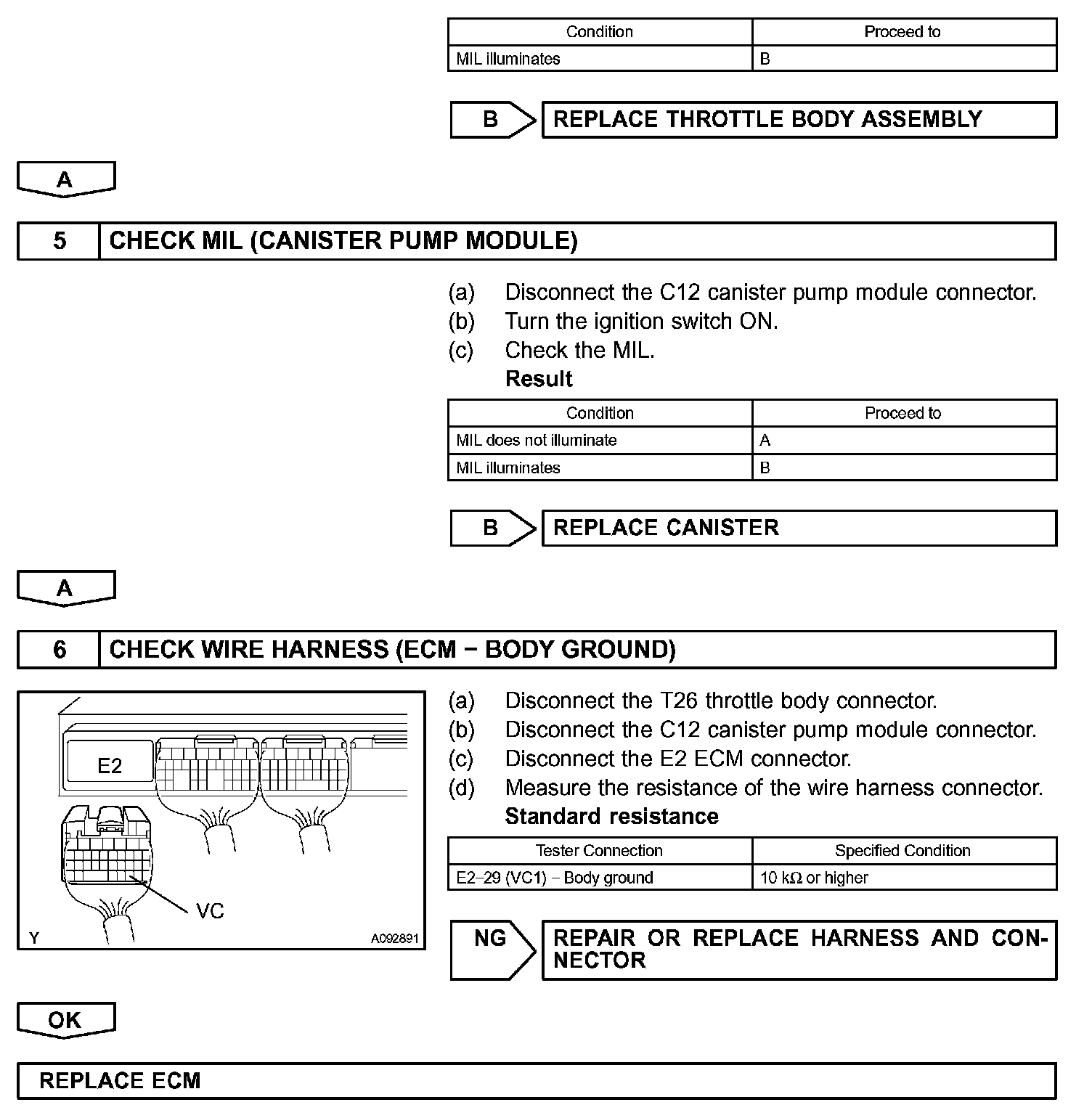

Step 4(Continued)-6:
INSPECTION PROCEDURE
