Fuel System: Location

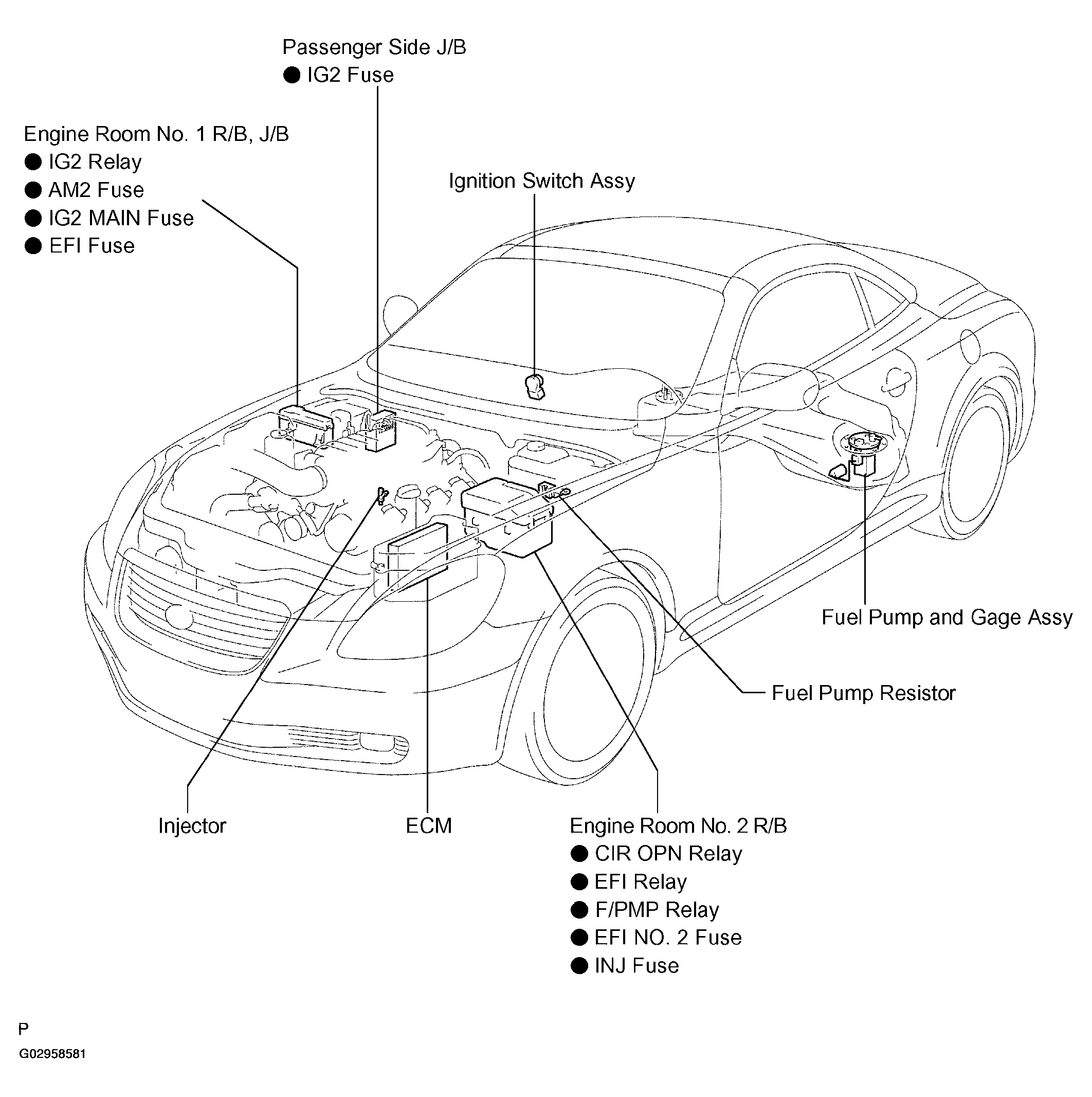

Fig 1: Identifying Location Of Fuel System Components & Replacements
G02958581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
