Door Oscillator Circuit

Door Oscillator Circuit

DESCRIPTION

Door oscillators are built into each door. Each of them forms its own action area around its door and detects the presence of the electrical key.

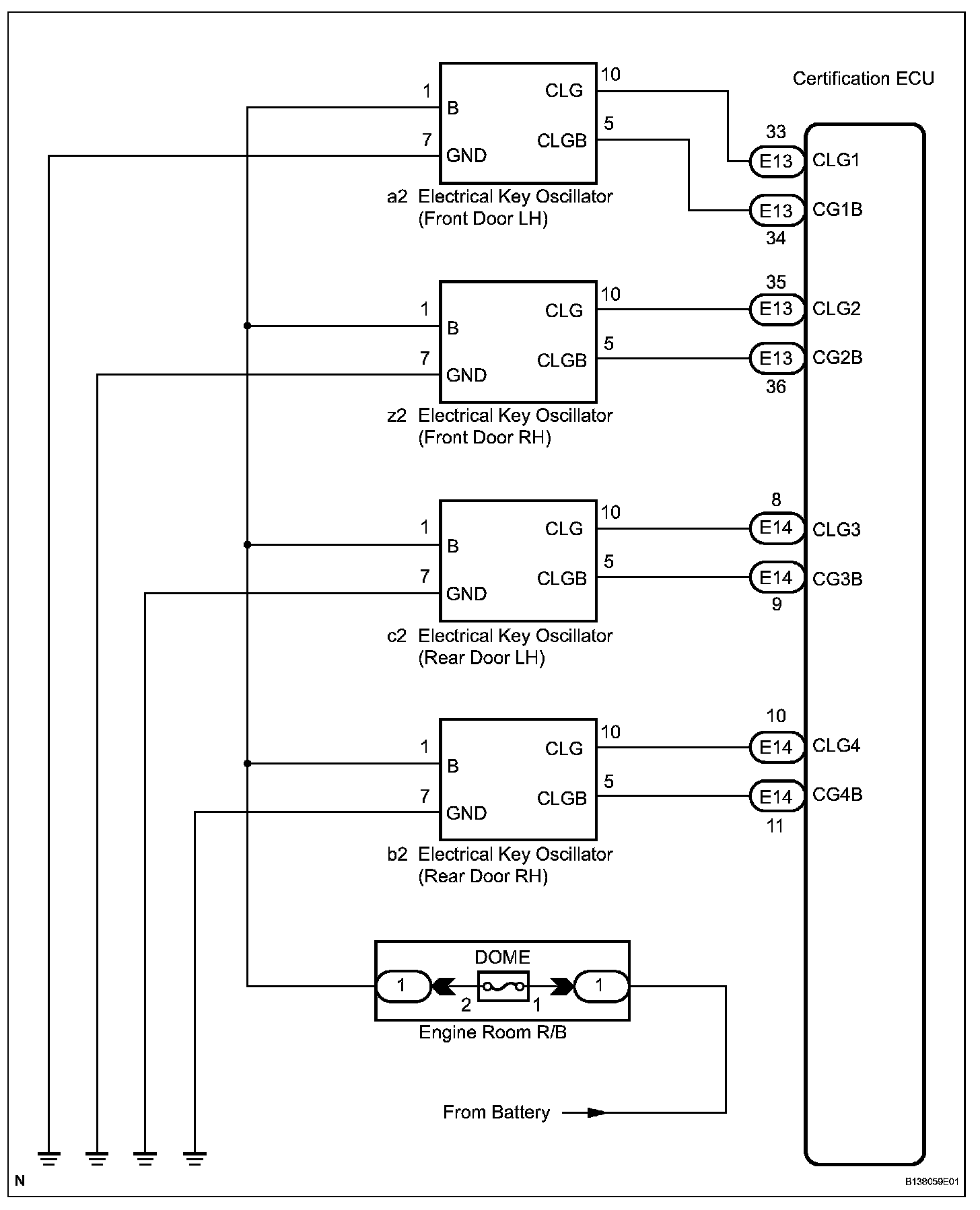

Wiring Diagram:

Step 1:

Step 2-3:

Step 3 (Continued)-4:

Step 4 (Continued):

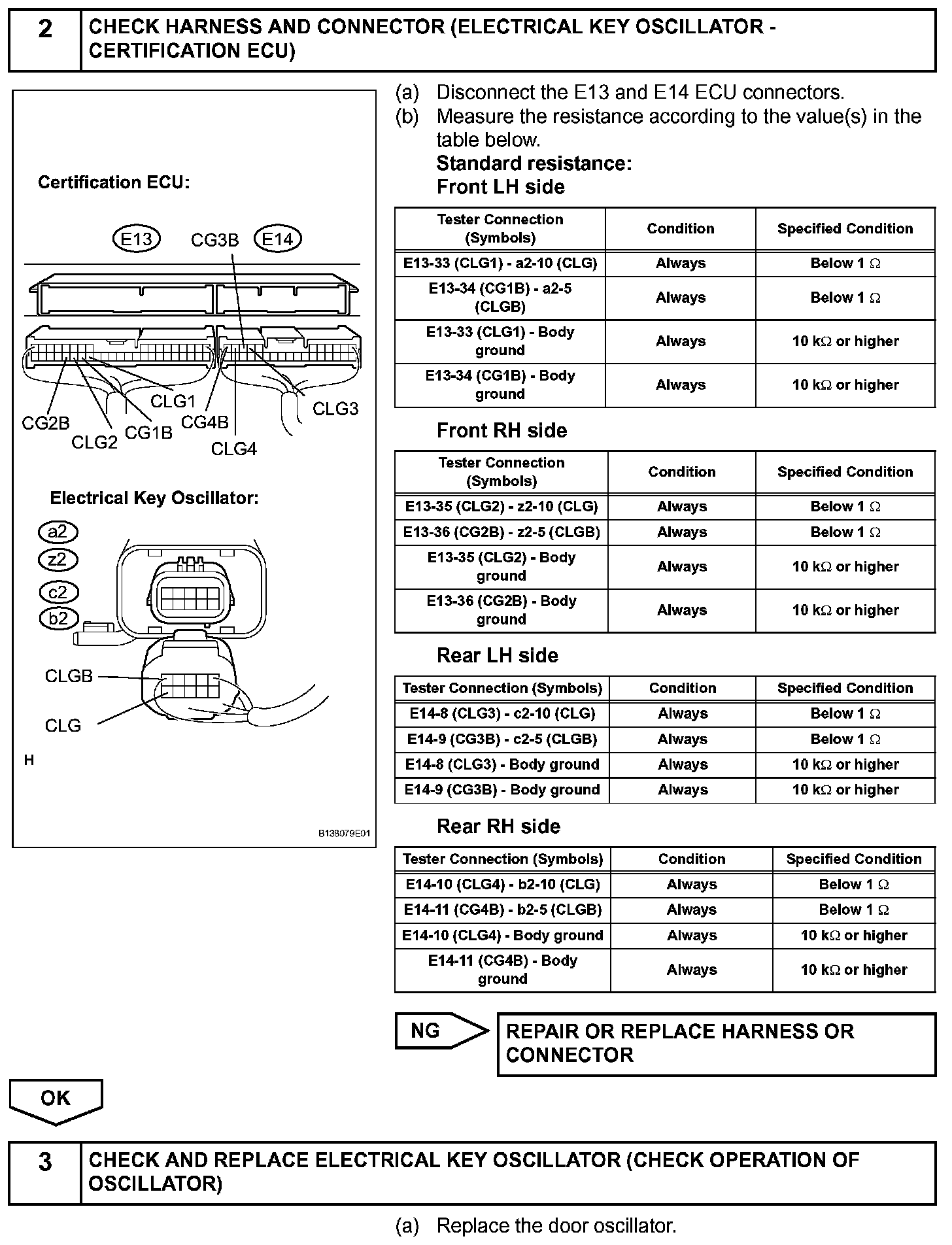

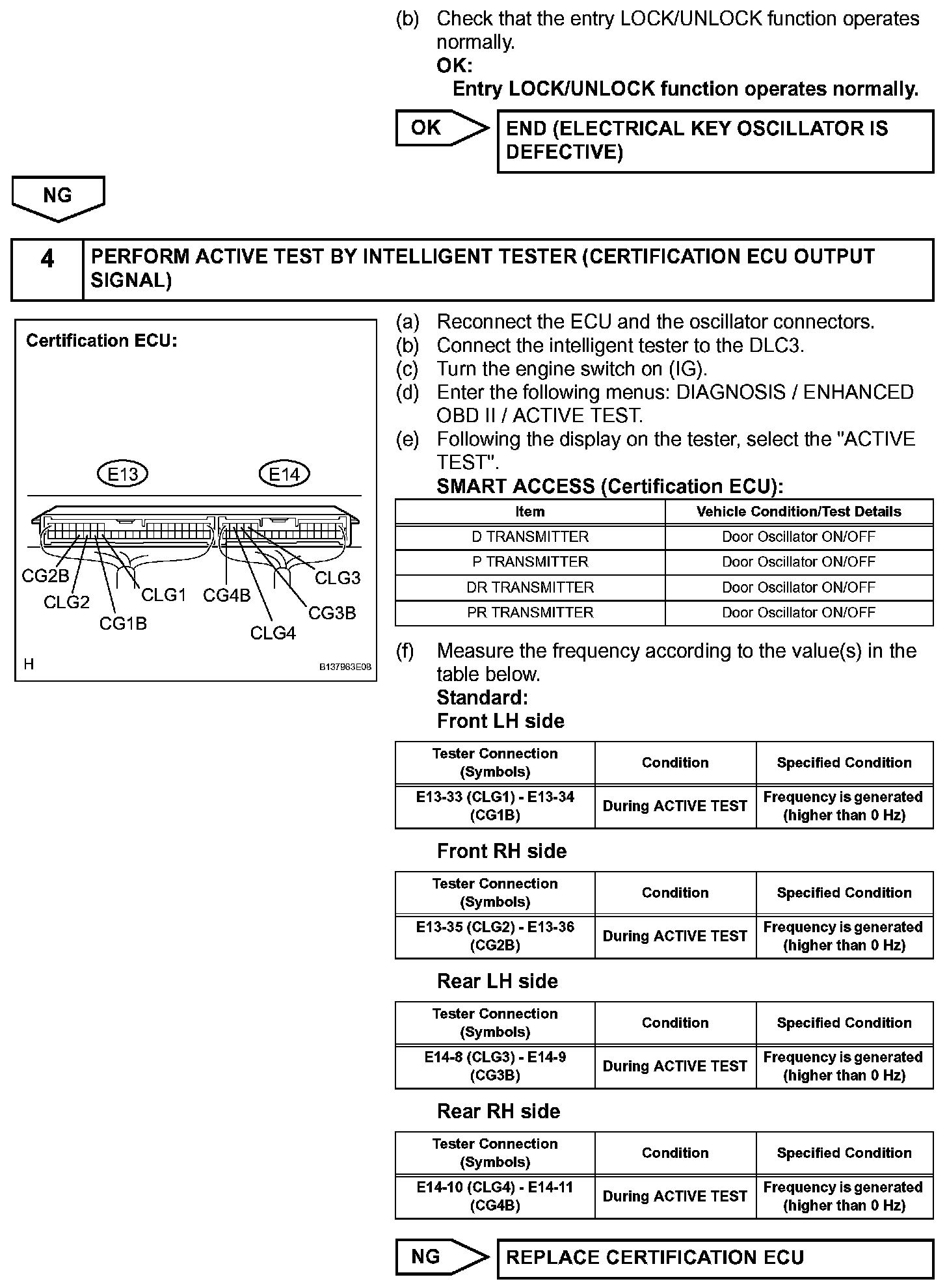

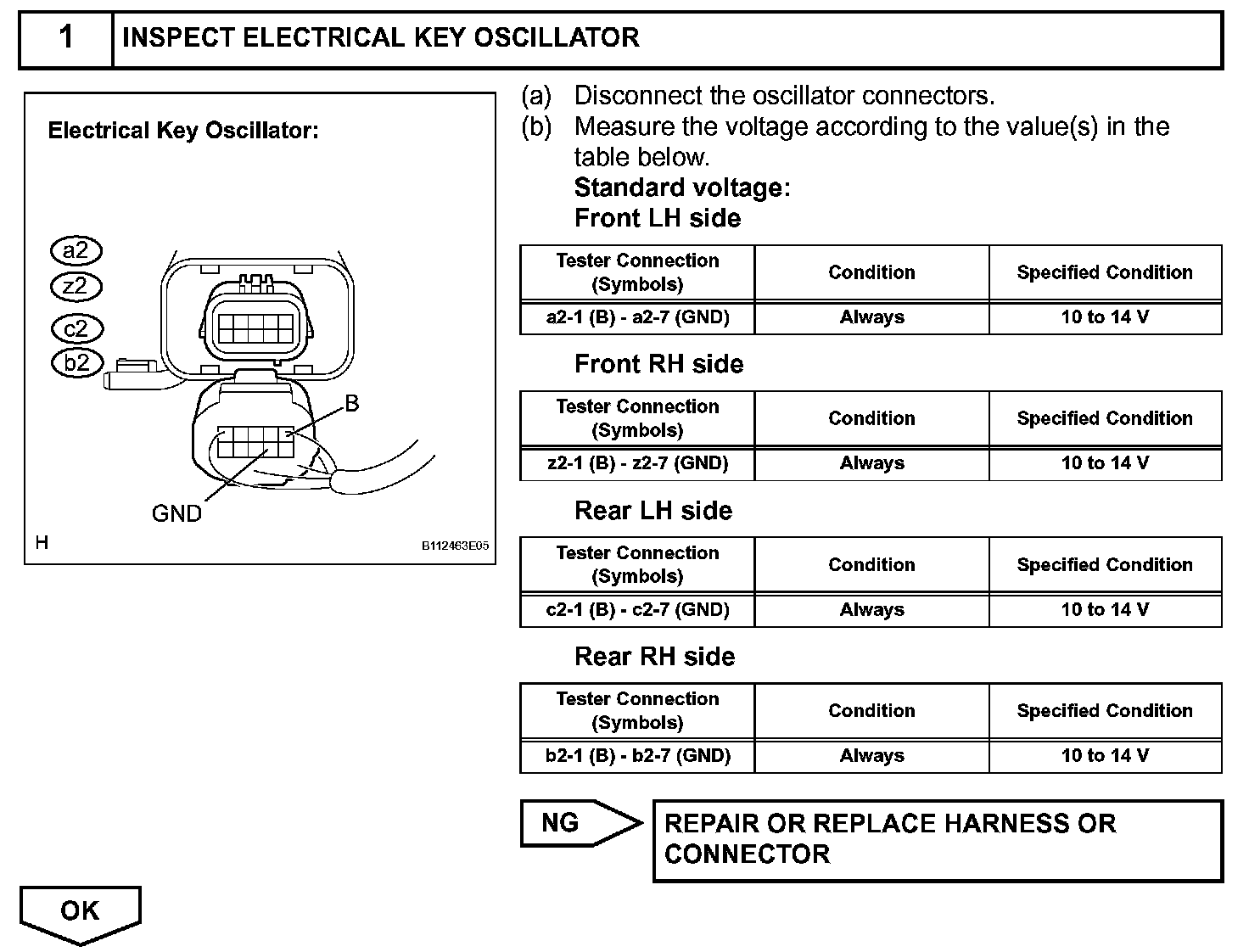

INSPECTION PROCEDURE
