Room Oscillator Circuit

Room Oscillator Circuit

DESCRIPTION

The certification ECU activates the electrical key oscillators (console and rear seat). The power is supplied from the certification ECU to both the electrical key oscillators (console and rear seat). The electrical key oscillators (console and rear seat) circuits have the same wiring. If the smart access system with push-button start does not operate properly inside the vehicle, check both the electrical key oscillators (console and rear seat) circuits.

Wiring Diagram:

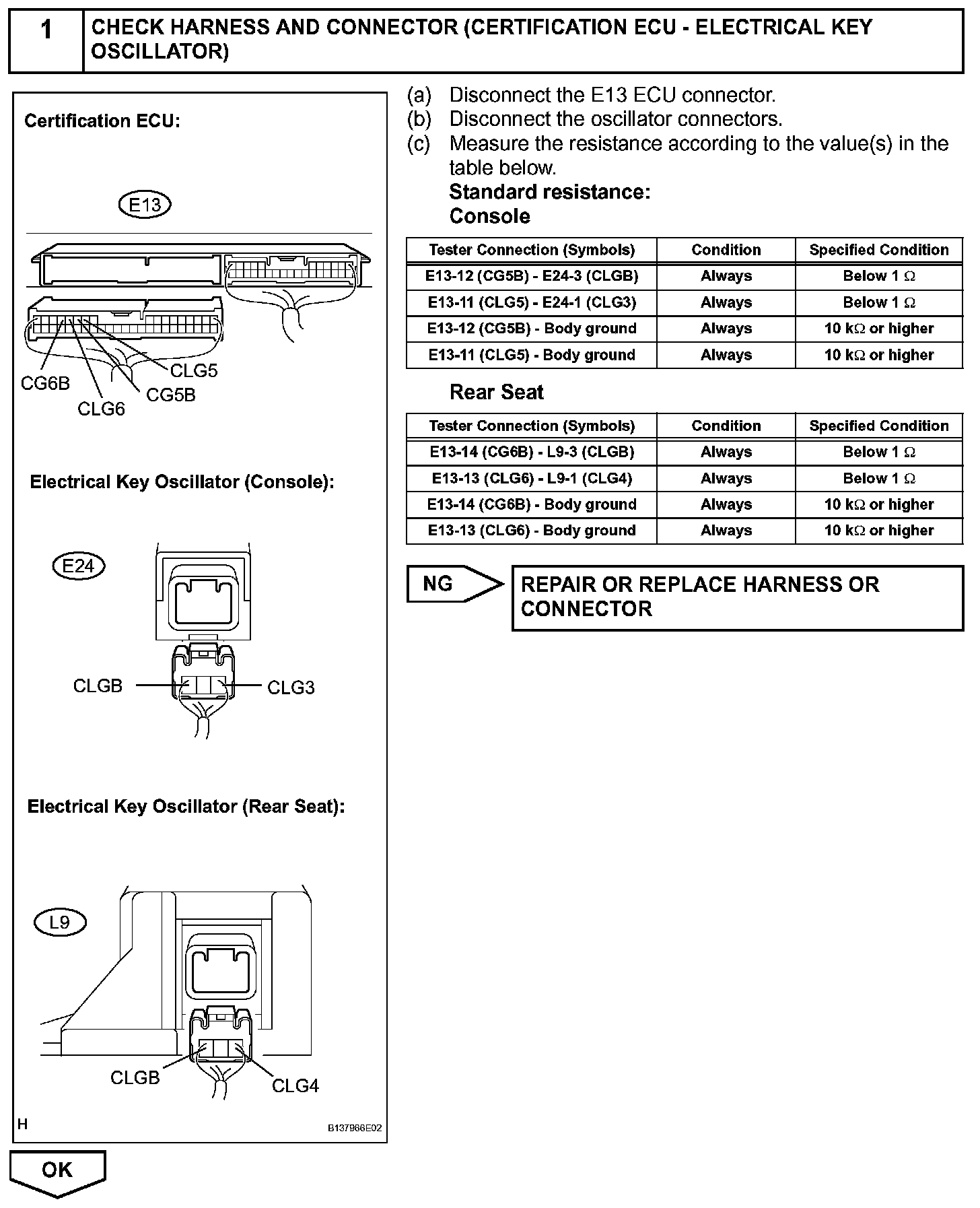

Step 1:

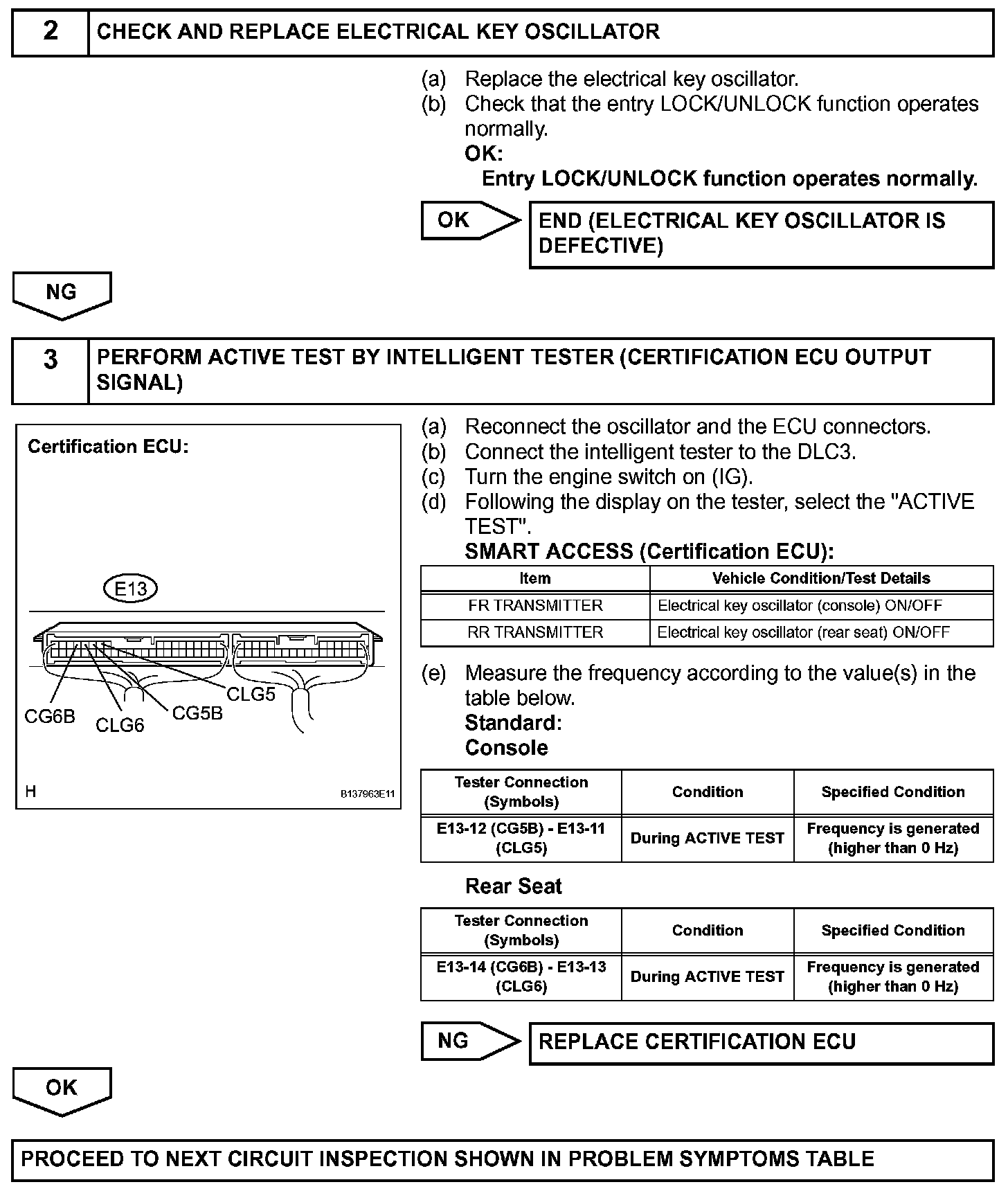

Step 2-3:

INSPECTION PROCEDURE
